点击放大查看

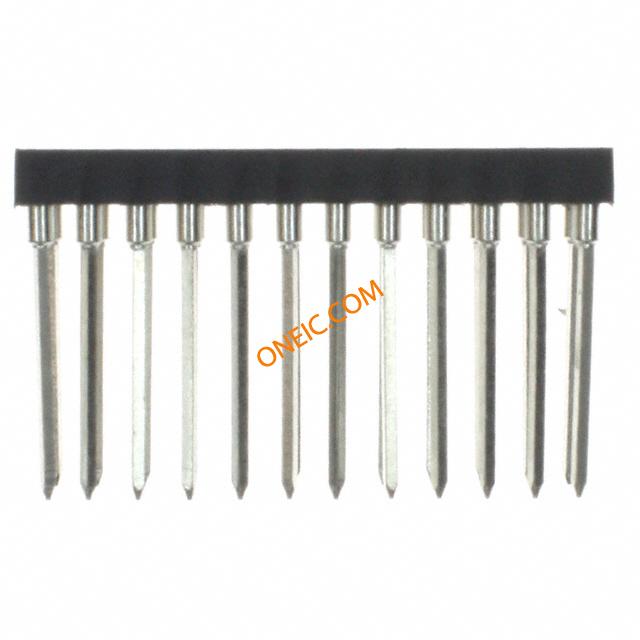

123-43-324-41-001000
| Manufacturer | |
| Description | Conn DIP Socket SKT 24 POS 2.54mm Wire Wrap ST Thru-Hole Tube IC SOCKET 24 PIN WIRE WRAP .300 IC & Component Sockets 24P TIN PIN GLD CONT |
| Category |
Business
| Product | DIP / SIP Sockets | Product Category | IC & Component Sockets |
| Standard Package | 16 | Factory Pack Quantity | 16 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 1 kV | Contact Resistance | 10 |
| Current Rating (Max) | 3 A | Insulation Resistance | 10000 |
| Voltage - Input (Min) | 150VDC | ||
Mechanical
| Depth | 10.16 | Pitch | 0.100" (2.54mm) |
| Height | 4.9 | Base Type | Open Frame |
| Packaging | Tube | Row Spacing | 7.62 mm |
| Termination | Wire Wrap | Mounting Type | Through Hole |
| Contact Finish | Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 2 | Package / Case | DIP |
| Contact Material | Beryllium Copper | Housing Material | Polychlorinated Terphenyl |
| Length - Overall | 30.48 | Termination Style | Wire Wrap |
| Number of Contacts | 24 | Insulation Material | Polychlorinated Terphenyl |
| Contact Finish Thickness | 30µin (0.76µm) | Number of Positions or Pins (Grid) | 24 (2 x 12) |
Product Info
| Type | DIP Socket | Gender | SKT |
| Features | Open Frame | ||
Environmental
| Operating Temperature | - 55 C to + 125 C | ||
