115-93-314-41-003000
| Manufacturer | |
| Description | Conn DIP Socket SKT 14 POS 2.54mm Solder ST Thru-Hole Tube 14PIN LOW PROFILE IC SOCKET .300 IC & Component Sockets 14P TIN PIN GLD CONT Socket,DIP;14Pins;UltraLowProfile;Open;0.3In.;BerylliumCopper;Gold;PCB;0.108 |
| Category |
Business
| Product | DIP / SIP Sockets | Lead Time | 20 Days |
| Subcategory | Connector Socket | Product Category | IC & Component Sockets |
| Standard Package | 28 | Factory Pack Quantity | 28 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | EU RoHS | Not Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 1 kV | Contact Resistance | 10 |
| Current Rating (Max) | 3 A | Insulation Resistance | 10000 |
| Voltage - Input (Min) | 150VDC|100VAC | ||
Mechanical
| Depth | 10.16 | Pitch | 0.100" (2.54mm) |
| Height | 2.41 | Base Type | Open Frame |
| Packaging | Tube | Row Spacing | 7.62 mm |
| Termination | Solder | Mounting Type | Through Hole |
| Contact Finish | Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 2 | Package / Case | DIP |
| Contact Material | Beryllium Copper Alloy | Housing Material | Polychlorinated Terphenyl |
| Length - Overall | 17.78 | Termination Style | Solder Tail |
| Number of Contacts | 14 | Insulation Material | Polychlorinated Terphenyl |
| Contact Finish Thickness | 30µin (0.76µm) | Number of Positions or Pins (Grid) | 14 (2 x 7) |
Product Info
| Type | DIP Socket | Gender | SKT |
| Features | Open Frame | For Use With/Related Products | 115-13-314-41-003000115-43-314-41-003000 |
Environmental
| Operating Temperature | - 55 C to + 125 C | ||
Documents & Media
Similar Parts
142-90-314-00-593000
Mill-Max
Headers & Wire Housings 14P DIP HDR OPEN FRAME .585L Conn DIP Adapter HDR 14 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .300 14POS
142-90-314-00-594000
Mill-Max
Headers & Wire Housings 14P DIP HDR OPEN FRAME .835L Conn DIP Adapter HDR 14 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .300 14POS
142-90-314-00-591000
Mill-Max
Headers & Wire Housings 14P DIP HDR OPEN FRAME .210L Conn DIP Adapter HDR 14 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .300 14POS
142-90-314-00-592000
Mill-Max
Conn DIP Adapter HDR 14 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .300 14POS IC & Component Sockets 14P DIP HDR

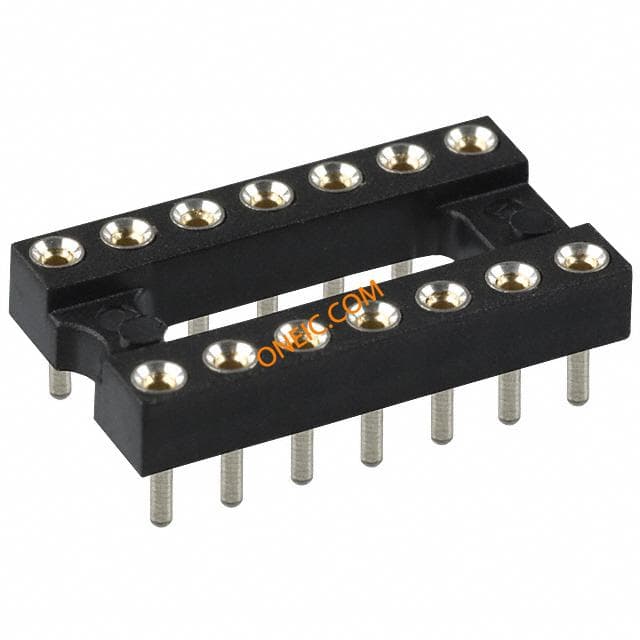

115-43-314-41-001000
