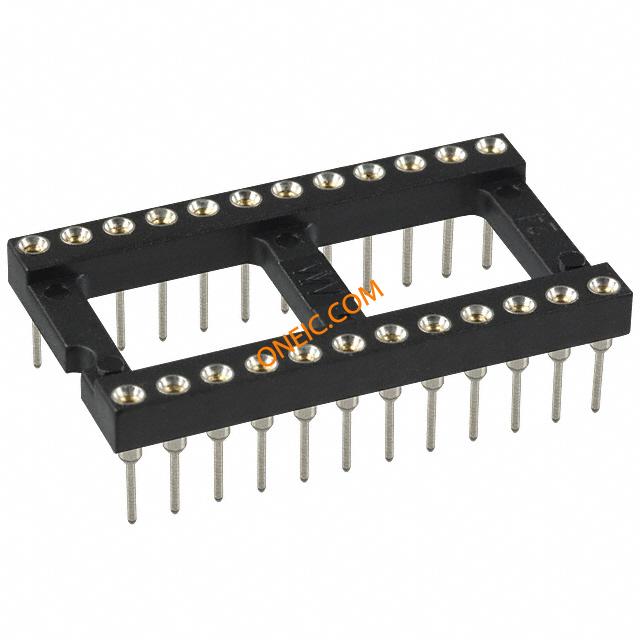

111-43-624-41-001000
| Manufacturer | |
| Description | Conn DIP Socket SKT 24 POS 2.54mm Solder ST Thru-Hole Tube IC SOCKET 24PIN .600 SOLDER TAIL IC & Component Sockets 24P LONG SOLDER TAIL DIP SOCKET, 24POS, THROUGH HOLE |
| Category |
Business
| Product | DIP / SIP Sockets | Product Category | IC & Component Sockets |
| Standard Package | 16 | Factory Pack Quantity | 16 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Contact Resistance | 10 | Current Rating (Max) | 3 |
| Insulation Resistance | 10000 | Voltage - Input (Min) | 150VDC|100VAC |
Mechanical
| Depth | 17.78 | Pitch | 0.100" (2.54mm) |
| Height | 4.19 | Weight | 0.00204 |
| Packaging | Tube | Row Spacing | 15.24 |
| Termination | Solder | Pitch - Post | :15.24mm |
| Mounting Type | Through Hole | Connector Type | :DIP Socket |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Contact Material | Beryllium Copper | Housing Material | Polychlorinated Terphenyl |
| Length - Overall | 30.5 | Termination Style | Solder Tail |
| Length - Lead Wire | 4.3 mm | Number of Contacts | 24 |
| Contact Termination | :Through Hole Vertical | Insulation Material | Polychlorinated Terphenyl |
| Contact Finish Thickness | 30µin (0.76µm) | Number of Positions or Pins (Grid) | 24 (2 x 12) |
Product Info
| Type | DIP Socket | Gender | SKT |
| Series | :111 | Features | Open Frame |
