点击放大查看

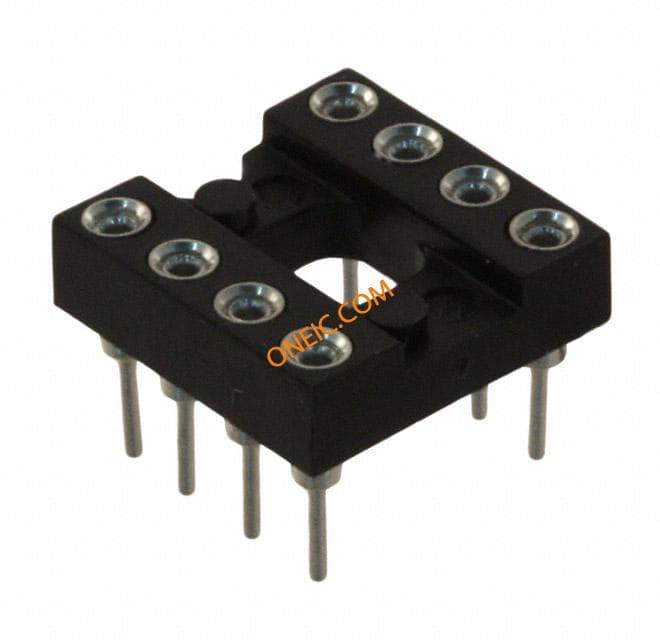

110-99-308-41-001000
| Manufacturer | |
| Description | Conn DIP Socket SKT 8 POS 2.54mm Solder ST Thru-Hole Tube IC SOCKET 8PIN MS TIN/TIN .300 Socket; DIP;8Pins;Low Profile;Open;Solder Tail;0.3In.;Beryllium Copper;Tin/Lead IC & Component Sockets 8P TIN PIN TIN CONT DIP SOCKET, 8POS, THROUGH HOLE Socket,DIP;8Pins;LowProfile;Open;SolderTail;0.3In.;BerylliumCopper;Tin/Lead |
| Category |
Business
| Product | DIP / SIP Sockets | Lead Time | 20 Days |
| Subcategory | Connector Socket | Product Category | IC & Component Sockets |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | EU RoHS | Not Compliant |
| Tariff No | 85366910 | Rad Hardened | No |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 1 kV | Contact Resistance | 10 mohm |
| Current Rating (Max) | 3 A | Insulation Resistance | 10000 Mohm |
| Voltage - Input (Min) | 150VDC|100VAC | ||
Mechanical
| Depth | 10.16 mm | Pitch | 0.100" (2.54mm) |
| Height | 4.19 mm | Weight | 0.002 |
| Base Type | Open Frame | Packaging | Tube |
| Row Spacing | 7.62 mm | Termination | Solder |
| Pitch - Post | :7.62mm | Mounting Type | Through Hole |
| Connector Type | :DIP Socket | Contact Finish | Tin-Lead Over Nickel |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Package / Case | DIP | Contact Material | Beryllium Copper |
| Housing Material | Polychlorinated Terphenyl | Length - Overall | 10.16 mm |
| Termination Style | Solder Tail | Number of Contacts | 8 |
| Contact Termination | :Solder | Insulation Material | Polychlorinated Terphenyl |
| Number of Positions | Not Required | Contact Finish Thickness | 200µin (5.08µm) |
| Number of Positions or Pins (Grid) | 8 (2 x 4) | ||
Product Info
| Type | DIP Socket | Gender | SKT |
| Series | :110 | Features | Open Frame |
| For Use With/Related Products | 110-13-308-41-001000110-44-308-41-001000 | ||
Environmental
| Operating Temperature | - 55 C to + 125 C | ||
