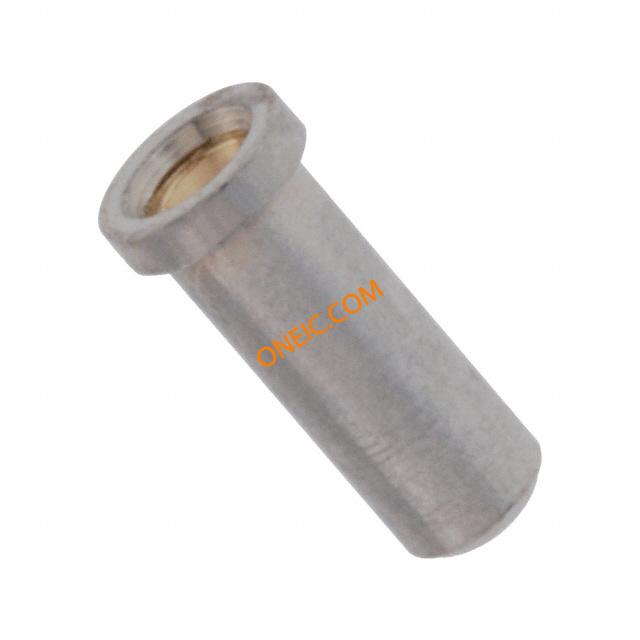

0667-0-15-01-30-27-10-0
| Manufacturer | |
| Description | Circuit Board Hardware - PCB SOCK PC SOLDER MOUNT Contact SKT Solder ST Thru-Hole Bulk PIN RECPT .015/.025 DIA 0667 SER PIN RECEPTACLE, PC BOARD, SOLDER PinReceptacle;BrassAlloy(Shell),BerylliumCopperAlloy;27 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Receptacles | Lead Time | 20 Days |
| Subcategory | Connector Contact | Product Category | Circuit Board Hardware - PCB |
| Standard Package | 500 | Factory Pack Quantity | 500 |
Compliance
| RoHS | No | EU RoHS | Not Compliant |
| Tariff No | 85366910 | Rad Hardened | No |
Electrical
| Contact Resistance | 10 mohm | Current Rating (Max) | 3 A |
Mechanical
| Depth | 1.83 mm | Pitch | Not Required mm |
| Height | 1.82 | Length | 0.161 in |
| Weight | 0.002 | Plating | Gold over Nickel |
| Material | Brass | Packaging | Bulk |
| Tail Type | No Tail | Insulation | Uninsulated |
| Row Spacing | Not Required mm | Shield Type | No |
| Termination | Solder | Contact Size | 30 |
| Socket Depth | 0.142" (3.61mm) | Mounting Type | Through Hole |
| Connector Type | Connector Socket | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Flange Diameter | 0.072" (1.83mm) |
| Material - Body | BrassAlloy | Contact Material | Beryllium Copper Alloy |
| Housing Material | Not Required | Length - Overall | 0.161 in |
| Primary Material | PCReceptacle | Diameter - Inside | 0.055 in |
| Pin Hole Diameter | 0.043" (1.09mm) | Diameter - Outside | 0.078 in |
| Number of Contacts | Not Required | Contact Termination | :Solder |
| Number of Positions | Not Required | Accepts Pin Diameter | 0.015" ~ 0.025" (0.38mm ~ 0.64mm) |
| Mounting Hole Diameter | 0.057 in | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | Pins | Gender | SKT |
| Series | :0667 | DELETED | Not Compliant |
| Leaded Process Compatible | :No | For Use With/Related Products | 0667-0-15-15-30-27-10-00667-0-15-80-30-27-10-0 |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
