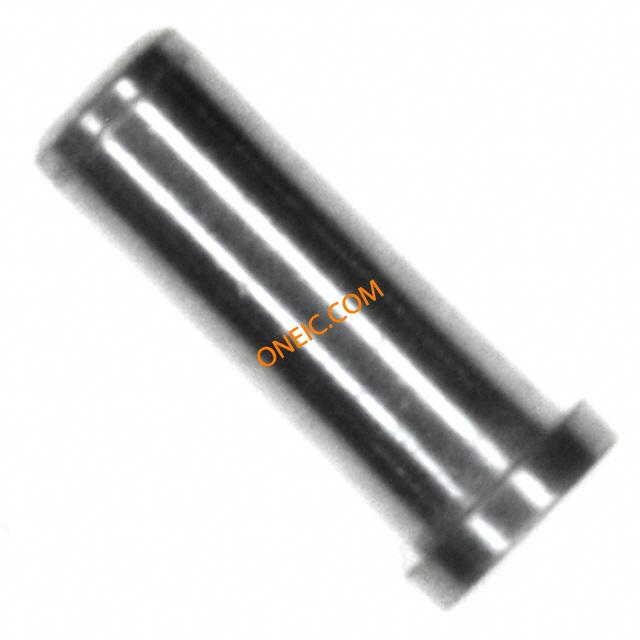

0329-0-15-01-34-27-10-0
| Manufacturer | |
| Description | Circuit Board Hardware - PCB SOCK PC/KNOCKOUT BOT PIN RECPT .032/.046 DIA 0329 SER IC & Component Sockets SOCK PC/KNOCKOUT BOT PINRECEPTACLE,PCSOLDERMOUNT |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Circuit Board Hardware - PCB | Standard Package | 500 |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | No | ||
Electrical
| Current Rating (Max) | 8A | ||
Mechanical
| Length | 0.221 in | Plating | Gold over Nickel |
| Material | Brass | Packaging | Bulk |
| Tail Type | No Tail | Insulation | Uninsulated |
| Termination | Solder | Socket Depth | 0.221" (5.61mm) |
| Contact Finish | Gold | Mounting Style | PCB |
| Flange Diameter | 0.090" (2.29mm) | Material - Body | BrassAlloy |
| Contact Material | Beryllium Copper | Length - Overall | 0.221 in |
| Primary Material | PCReceptacle | Diameter - Inside | 0.072 in |
| Pin Hole Diameter | 0.064" (1.63mm) | Diameter - Outside | 0.09 in |
| Accepts Pin Diameter | 0.032" ~ 0.046" (0.81mm ~ 1.17mm) | Mounting Hole Diameter | 0.075 in |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Pins | Features | Knockout Bottom |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
