0252-0-15-15-30-27-10-0
| Manufacturer | |

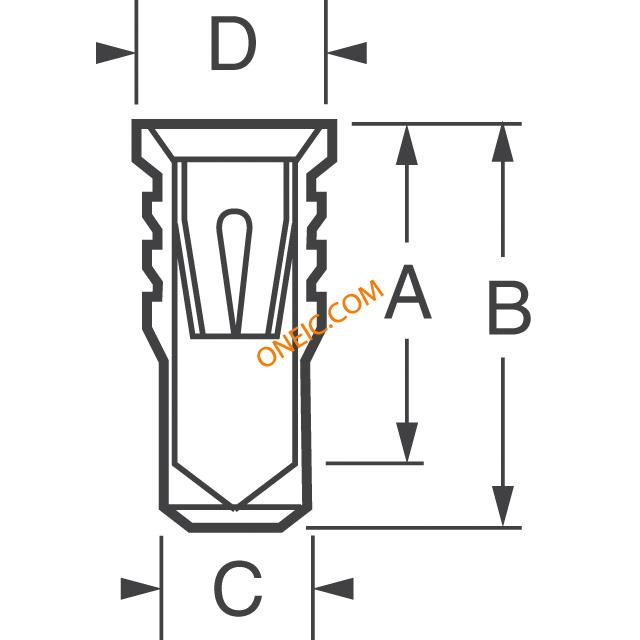

| Description | Circuit Board Hardware - PCB SOCK HEX PRESS FIT PIN RECPT .015/.025 DIA 0252 SER |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Receptacles | Product Category | Circuit Board Hardware - PCB |
| Standard Package | 500 | Factory Pack Quantity | 500 |
Compliance
| RoHS | RoHS Compliant | ||
Mechanical
| Packaging | Bulk | Tail Type | No Tail |
| Termination | Press-Fit, Hex | Socket Depth | 0.150" (3.81mm) |
| Contact Finish | Gold | Flange Diameter | 0.072" (1.83mm) |
| Contact Material | Beryllium Copper | Length - Overall | 0.170" (4.32mm) |
| Pin Hole Diameter | 0.043" (1.09mm) | Accepts Pin Diameter | 0.015" ~ 0.025" (0.38mm ~ 0.64mm) |
| Mounting Hole Diameter | 0.057" (1.45mm) | Contact Finish Thickness | 30µin (0.76µm) |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
PDF Document
