115-93-314-41-001000
| Manufacturer | |
| Description | IC SOCKET 14PIN LOW PROFILE .300 IC & Component Sockets 14P VERY LOW PROFILE DIP SOCKET, 14POS, THROUGH HOLE |
| Category |
Business
| Product | DIP / SIP Sockets | Lead Time | 20 Days |
| Subcategory | Connector Socket | Product Category | IC & Component Sockets |
| Standard Package | 28 | Factory Pack Quantity | 28 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Tariff No | 85369010 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 1 kV | Current Rating (Max) | 3 A |
Mechanical
| Pitch | 0.100" (2.54mm) | Weight | 0.002 |
| Base Type | Open Frame | Packaging | Tube |
| Row Spacing | 7.62 mm | Pitch - Post | :7.62mm |
| Mounting Type | Through Hole | Connector Type | :DIP Socket |
| Contact Finish | Gold | Mounting Style | Through Hole |
| Number of Rows | 2 | Package / Case | DIP |
| Contact Material | Beryllium Copper | Housing Material | Polybutylene Terephthalate (PBT) |
| Termination Style | Solder Tail | Number of Contacts | 14 |
| Contact Termination | :Through Hole Vertical | Contact Finish Thickness | 30µin (0.76µm) |
| Number of Positions or Pins (Grid) | 14 (2 x 7) | ||
Product Info
| Type | DIP, 0.3" (7.62mm) Row Spacing | Series | :115 |
| Features | Open Frame | For Use With/Related Products | 115-13-314-41-001000115-43-314-41-001000 |
Environmental
| Operating Temperature | - 55 C to + 125 C | ||
Documents & Media
Similar Parts
142-90-314-00-593000
Mill-Max
Headers & Wire Housings 14P DIP HDR OPEN FRAME .585L Conn DIP Adapter HDR 14 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .300 14POS
142-90-314-00-594000
Mill-Max
Headers & Wire Housings 14P DIP HDR OPEN FRAME .835L Conn DIP Adapter HDR 14 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .300 14POS
142-90-314-00-591000
Mill-Max
Headers & Wire Housings 14P DIP HDR OPEN FRAME .210L Conn DIP Adapter HDR 14 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .300 14POS
142-90-314-00-592000
Mill-Max
Conn DIP Adapter HDR 14 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .300 14POS IC & Component Sockets 14P DIP HDR

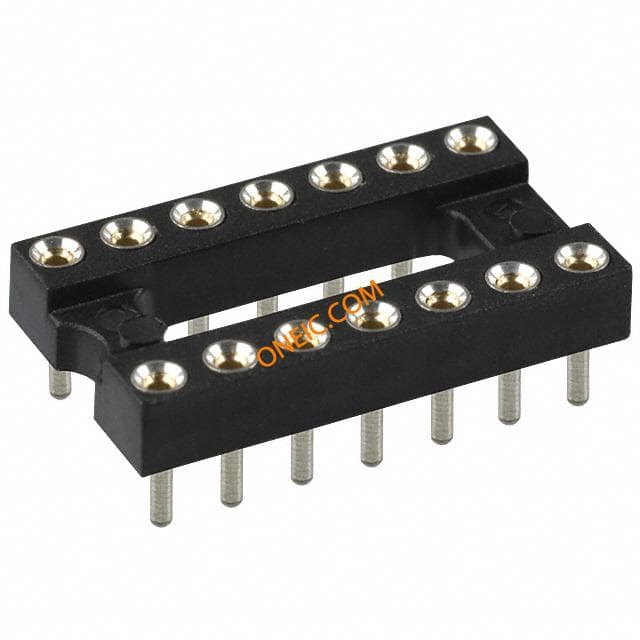

115-43-314-41-001000
