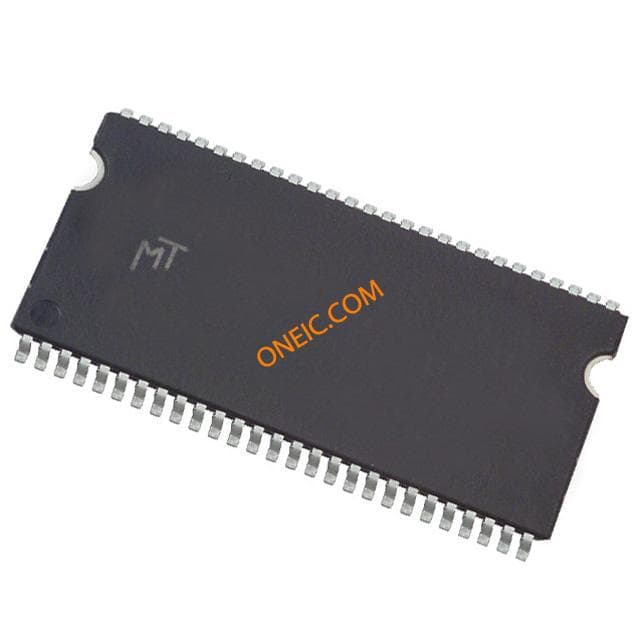

MT48LC16M16A2P-7E:D
| Manufacturer | |
| Description | DRAM Chip SDRAM 256M-Bit 16Mx16 3.3V 54-Pin TSOP-II Tray 16MX16 SDRAM PLASTIC COMMERCIAL PBF IC SDRAM 256MBIT 133MHZ 54TSOP DRAM Chip SDRAM 256M-Bit 3.3V 54-Pin TSOP-II T/R DRAM Chip SDRAM 256M-Bit 3.3V 54-Pin TSOP-II SDRAM 256MB, SMD, 48LC16, TSOP54 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1 | Unit Pack | 0 |
| Other Names | MT48LC16M16A2P7ED | Standard Package | 1,000 |
| Standard Package Name | TSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423231 |
| Part Status | :48LC16 | Rad Hardened | No |
Electrical
| Speed | 133MHz | Memory | :4 BLK (4M x 16) |
| Capacity | :256Mb | Frequency | :133MHz |
| Interface | Parallel | Clock Rate | 143 MHz |
| Access Time | 5.4 ns | Memory Size | 256M (16M x 16) |
| Memory Type | SDRAM | Voltage - VCCB | :3.3V |
| Voltage Rating | 3 | Current - Output | 135 mA |
| Voltage - Supply | 3 V ~ 3.6 V | Current Rating (Max) | 135 |
| Voltage - Supply (Min) | 3 V | Voltage - Supply (Vcc/Vdd) | :3.3V |
| Common Mode Transient Immunity (Min) | Commercial | ||
Mechanical
| Weight | 0.000005 | Packaging | Tray |
| Lead Style | Gull-wing | Termination | :SMD |
| Mounting Type | Surface Mount | Number of Pins | :54 |
| Package / Case | 54-TSOP (0.400", 10.16mm Width) | Package Cooled | TSOP-II |
| Material Finish | :- | Package Quantity | TSOP-II |
| Number of Positions | 4 | Supplier Device Package | 54-TSOP II |
| Number of Cores/Bus Width | 16 | ||
Product Info
| Type | SDRAM | DELETED | Compliant |
| Density | 268435456 Bit | Base Unit | :48LC16 |
| Manufacturer | 16Mx16 | Memory Format | RAM |
| Bus Connection | 15 b | Number of Addresses | 15 |
Environmental
| Temperature Range | :Commercial | Operating Temperature | 0°C ~ 70°C |
Documents & Media
PDF Document
PDF Document
