M28W320FCB70N6E
| Manufacturer | |
| Description | Flash Mem Parallel 3V/3.3V 32M-Bit 2M x 16 70ns 48-Pin TSOP Tray NOR Flash Parallel 3V/3.3V 32Mbit 2M x 16bit 70ns 48-Pin TSOP Tray IC FLASH 32MBIT 70NS 48TSOP IC, FLASH BOTTOM BLOCK 32MB, 28W320 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Trays | Standard Package Name | TSOP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423261 |
| Part Status | :28W320 | ||
Electrical
| Speed | 70ns | Memory | :2M x 16bit |
| Voltage | 2.7 to 3.6|11.4 to 12.6 | Interface | Parallel |
| Access Time | :70ns | Memory Size | 32M (2M x 16) |
| Memory Type | FLASH - NOR | Voltage - VCCB | :3V |
| Voltage Rating | 3|3.3 V | Voltage - Supply | Yes |
| Current Rating (Max) | 18 | Voltage - Supply (Min) | 3.6 |
| Number of Bits per Element | 16 | Voltage - Supply (Vcc/Vdd) | :3V |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Weight | 0.002 | Packaging | Tray |
| Lead Style | Gull-wing | Termination | :SMD |
| Connector Type | :Bottom Boot | Number of Pins | :48 |
| Package / Case | 48TSOP | Material Finish | :MSL 3 - 168 hours |
| Package Quantity | TSOP | Primary Material | NOR |
| Number of Positions | 48 | Supplier Device Package | 48-TSOP (12x20) |
Product Info
| Density | 32 Mb | Location | Bottom |
| Base Unit | :28 | Sector Size | 8Kbyte x 8|64Kbyte x 63 |
| Architecture | Sectored | Memory Format | FLASH |
| Number of Words | 2M | Page Mode Support | Yes |
| Memory Organization | Asymmetrical | Number of Addresses | 21 Bit |
| Timing Adjustment Method | Asynchronous | ||
Environmental
| Operating Temperature | -40 to 85 °C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

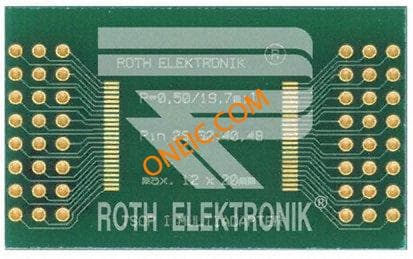

RE900-02
Roth Elektronik
RE900-02, Surface Mount (SMT) Board TSOP I Epoxy Glass Double-Sided 43.5 x 30.5 x 1.5mm FR4 ADAPTOR, SMD, 0.5MM, 28-48PIN SMDmulti-adaptorTSOPI,28-48pin0.50mm Board: universal; multiadapter; W:12mm; L:20mm Laboratory card FR4 Epoxide + chem. Ni/Au TSOP I 48 Adapter, RE900-02, Roth Elektronik
$50.3880
Details

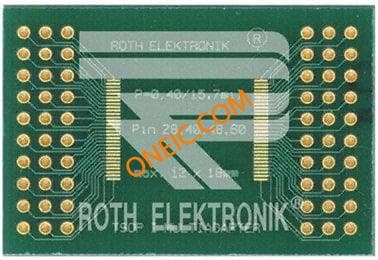

RE900-01
