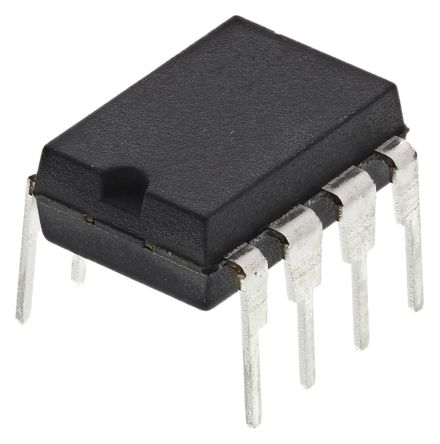

TC4423CPA
| Manufacturer | |
| Description | MOSFET DRVR 3A 2-OUT Lo Side Inv 8-Pin PDIP Tube 3A Dual MOSFET Drvr IC MOSFET DVR 3A DUAL HS 8-DIP TC4423CPA, Dual MOSFET Power Driver 3A, Inverting, 4.5 to 18V, 8-Pin PDIP Gate Drivers 3A Dual DRIVER, MOSFET, DUAL, DIP8, 4423 3ADUALMOSFETDRVR,PDIP-8 Driver; 3A; Channels:2; inverting; 4.5÷18V; DIP8 Driver IC, PDIP-8, 3 A, Inverting, TC4423CPA, Microchip Microchip 双 MOSFET 功率驱动器, 3A, 反相, 8针 PDIP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 300 | Product | MOSFET Gate Drivers |
| Unit Pack | 60 | Product Category | Gate Drivers |
| Standard Package | Rail / Tube | Factory Pack Quantity | 60 |
| Standard Package Name | PDIP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
Electrical
| Output | inverting | Fall Time | 35 ns |
| Delay Time | 33ns | Input Type | Inverting |
| Voltage Rating | 4.5 V | Rise Time (Typ) | 35 ns |
| Current - Output | 2.5 mA | Current - Supply | 2.5 mA |
| Driver Circuitry | Low Side | Voltage - Supply | 4.5 V ~ 18 V |
| Number of Outputs | 2 | Number of Channels | 2 |
| Current - Peak Output | 3(Typ) A | Voltage - Supply (Min) | 18 V |
| Power Dissipation (Max) | 730 mW | Delay Time - Propagation | :33ns |
| Input Logic Level - High | CMOS|TTL | Reverse Recovery Time (trr) | 25ns |
| Resistance - Wiper (Ohms) (Typ) | 3.5|2.8 Ohm | Current - Peak Pulse (10/1000us) | 3A |
| Max Propagation Delay @ V, Max CL | 35 | Impulse Discharge Current (8/20us) | 23ns |
| Propagation Delay tpLH / tpHL (Max) | 75 | Common Mode Transient Immunity (Min) | Commercial |
Mechanical
| Width | 6.6mm | Height | 4.06mm |
| Length | 10.16mm | Weight | 0.000833 |
| Packaging | Tube | Case Color | :DIP |
| Lead Style | Through Hole | Termination | :Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :8 | Package / Case | 8PDIP |
| Package Cooled | PDIP | Material Finish | :- |
| Length - Overall | 10.16(Max) | Package Quantity | PDIP |
| Size / Dimension | 10.16 x 6.6 x 4.06mm | Number of Positions | 8 |
| Shell Size - Insert | 4.06(Max) | Supplier Device Package | 8-PDIP |
Product Info
| Spg | 60 | Type | Low Side |
| Base Unit | :4423 | Configuration | Low-Side |
| Number of Units | 1 | Module/Board Type | :Low Side |
| Number of Drivers | 2 | Printed Circuit Board | 8 |
| Number of Configurations | 2 | ||
Environmental
| Operating Temperature | 0 to 70 °C | ||
