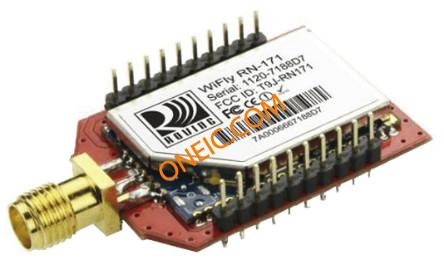

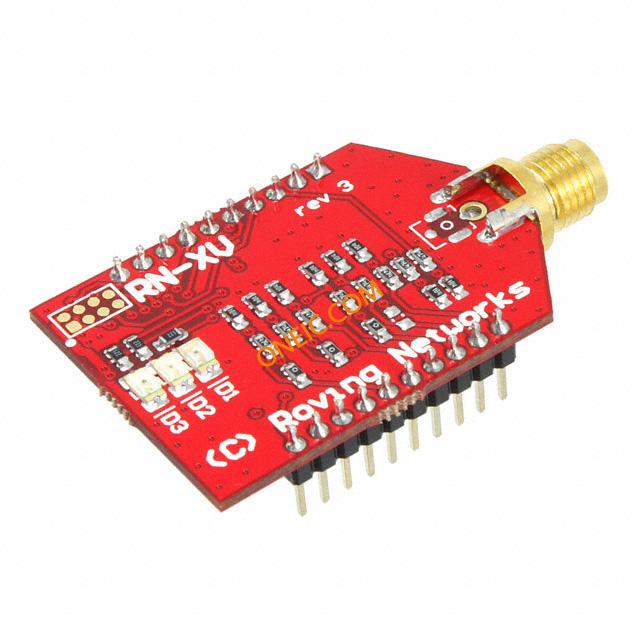

RN171XVS-I/RM
| Manufacturer | |
| Description | LP WIFI MODULE W/SMA CONNECTOR GIVES WIFI CONNECTIVITY FOR 8 MOD TCP/IP WIFI 802.15.4 20LEADS 802.11 b/g Wireless TCP-IP LAN Module Module 802.11b/g 2.48GHz 20-Pin Bag MODULE, WIFI, 802.15.4 DROP-IN WLAN module 802.11b/g, UART / TTL, RN171XVS-I/RM, Microchip RN-171 XVFOOT SMA ANTENNA |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | RN171XVSIRM | Standard Package | 1 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85369010 | Compliance | :CE, FCC, IC |
| Rad Hardened | No | ||
Electrical
| Frequency | 2.4GHz | Sensitivity | -83dBm |
| RF Frequency | :2.48MHz | Data Interface | PCB, Through Hole |
| Power - Output | 12dBm | Data Rate (Max) | 54Mbps |
| Voltage - Supply | 3 V ~ 3.7 V | Current - Receiving | 40mA |
| Current - Transmitting | 180mA | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Weight | 0.05 | Packaging | Bulk |
| Package / Case | 49-SMD Module | Antenna Connector | SMA |
| Number of Positions | 20 | ||
Product Info
| Technology | UART, Wi-Fi | Applications | General Purpose |
| Kit Contents | RN-XV 802.11 b, 802.11 g Wireless LAN Module with SMA Connector | Card Standard | Module |
| Module/Board Type | :UART | Modulation or Protocol | 802.11b/g |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
