PIC24FJ64GB004-I/ML
| Manufacturer | |
| Description | MCU 16-bit PIC24 PIC RISC 64KB Flash 2.5V/3.3V 44-Pin QFN EP 16-bit Microcontrollers - MCU 64KB Flash, 8KB RAM nanoWatt, USB OTG 16 bit MCU QFN44 IC MCU 16BIT 64KB FLASH 44QFN PIC24FJ64GB004-I/ML, 16 bit Microcontroller PIC 32MHz 64kb Flash, 8kb RAM, USB I2C SPI 44-Pin QFN MCU 16-bit PIC24F PIC RISC 64KB Flash 2.5V/3.3V 44-Pin QFN EP MCU, 16BIT, 64K FLASH, USB-OTG, 44QFN 16-bit,16MIPS,64KBFlash,8KBRAM,nanoWatt,USBOTG PIC microcontroller; SRAM:8192B; 32MHz; QFN44; 2÷3.6V Microchip PIC24FJ 系列 16 bit PIC MCU, 32MHz, 64 kB ROM 闪存, 8 kB RAM, 1xUSB, 44针 QFN封装 |
| Category |
Business
| MOQ | 225 | Unit Pack | 45 |
| Other Names | PIC24FJ64GB004IML | Product Category | 16-bit Microcontrollers - MCU |
| Standard Package | Bulk | Factory Pack Quantity | 45 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423190 | Automotive | NO |
| Rad Hardened | No | Leadfree Defin | RoHS-conform |
Electrical
| Input | 35 | Speed | 32 MHz |
| Timer | 5 x 16 bit | Memory | 64KBytes |
| Ethernet | 0 | RAM Size | 8 KB |
| Core Size | 16-Bit | Core Type | PIC |
| Frequency | 32 MHz | Interface | I2C/SPI/UART/USB |
| Clock Rate | 32 MHz | Comparator | 3 |
| EEPROM Size | 0Byte | Memory Size | 8 KB |
| Memory Type | FLASH | Display Type | 0 |
| Number of I/O | 33 | Voltage Range | 2-3.6V |
| Number of Bits | 16 | Voltage Rating | 2 → 3.6 V |
| Clock Frequency | :32MHz | Data Converters | A/D 13x10b |
| Frequency - Max | 32MHz | Number of DAC's | 16 |
| Oscillator Type | Internal | Voltage - Supply | 2.5|3.3 V |
| Digital I/O Lines | 35pins | Resolution (Bits) | 16bit |
| Number of Channels | 13 | Analog Input:Output | 13-Channel,10-Bit |
| Non-Volatile Memory | 0Bytes | Program Memory Size | 64 KB |
| Program Memory Type | Flash | Number of ADCs / DACs | 13channels |
| Voltage - Input (Min) | 3.6V | Voltage - Supply (Min) | 2 V |
| Frequency (Center/Band) | 16bit | Number of Bits per Element | 10 bit |
| Voltage - Supply (Vcc/Vdd) | 2 V ~ 3.6 V | ||
Mechanical
| Width | 8mm | Height | 0.95mm |
| Length | 8mm | Weight | 0.00022 |
| Packaging | Tube | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :44 | Package / Case | 44QFN EP |
| Package Cooled | QFN | Material Finish | :MSL 1 - Unlimited |
| Package Quantity | 15 | Size / Dimension | 8 x 8 x 0.95mm |
| Number of Positions | 44 | Supplier Device Package | 44-QFN (8x8) |
| Number of Cores/Bus Width | 16 Bit | Pulse Width Distortion (Max) | 5(Compare/PWM) |
Product Info
| Spg | 15 | USB | 1 |
| Type | PIC microcontroller | Series | PIC24F |
| Base Unit | :PIC24F | Matchcode | PIC24FJ64GB004-I/ML |
| CAN Number | 0 | Flash Size | :64KB |
| SPI Number | 2 | On-Chip RAM | 13-chx10-bit |
| Peripherals | Brown-out Detect/Reset, LVD, POR, PWM, WDT | Architecture | RISC |
| Connectivity | I²C, IrDA, SPI, UART/USART, USB OTG | Programmable | Yes |
| Core Processor | PIC | Built in Switch | 32kHz, 8MHz |
| Number of Units | 1 | Number of Timers | 5 |
| Controller Series | :PIC24FJxxGBxxx | Standard Leadtime | 14 weeks |
| RF Family/Standard | PIC24 | Number of Macrocells | 0 |
| Number of A/D Converters | :13 | ||
Environmental
| Temperature - Test | -40°C | Operating Temperature | -40 to 85 °C |
| Operating Temperature - Junction | 85C | ||
Documents & Media
Similar Parts
DV164035
microchip
MPLAB ICD 3 In Circuit Debugger In-Circuit Debuggers MPLAB ICD3 MPLAB ICD3 In-Circuit Debugger MPLAB ICD3 IN-CIRC DEBUGGER DV164035, Programmer, 16 bit, PIC DEBUGGER, MPLAB ICD 3, DSPIC FOR PIC MPLAB ICD 3 In-Circuit Debugger Kit MPLABICD3IncircuitDebugger Programmer: microcontrollers; USB; No.of diodes:3 In-Circuit Debugger/Programmer ICD3 PC hosted mode, DV164035, Microchip Microchip MPLAB ICD 3 在线调试器 处理器和微控制器开发套件
DM240011
microchip
MPLAB Starter Kit For PIC24F Development Boards & Kits - PIC / DSPIC MPLAB Starter Kit for PIC24F MCU MPLAB Starter Kit for PIC24F KIT STARTER MPLAB FOR PIC24F MCU DM240011, Development Kit, 16 bit, PIC PIC24F, OLED, MPLAB STARTER KIT MPLABSTARTERKITFORPIC24FMCU,PICDEMO Development kit: Microchip; PIC24FJ256GB110; OLED 128x64 MPLAB Starter Kit for PIC24F PC hosted mode, DM240011, Microchip
DM240001
microchip
Explorer 16 Demonstration Board For 6-Bit Microcontrollers Development Boards & Kits - PIC / DSPIC PICDEM PIC24/dsPIC33 EXPLORER 16 KIT PICDEM PIC24/dsPIC33 Explorer BOARD DEMO PIC24/DSPIC33/PIC32 DM240001, Development Kit, 16 bit, PIC, Explorer 16 Demo Board PIC24, EXPLORER 16, DEV BOARD EXPLORER16DEVELOPMENTBOARD Development kit: Microchip; PIC24,PIC32,dsPIC33 Explorer 16 development board PC hosted mode 9 V, DM240001, Microchip Microchip 16 位 MCU 微控制器开发套件
MA240019
microchip

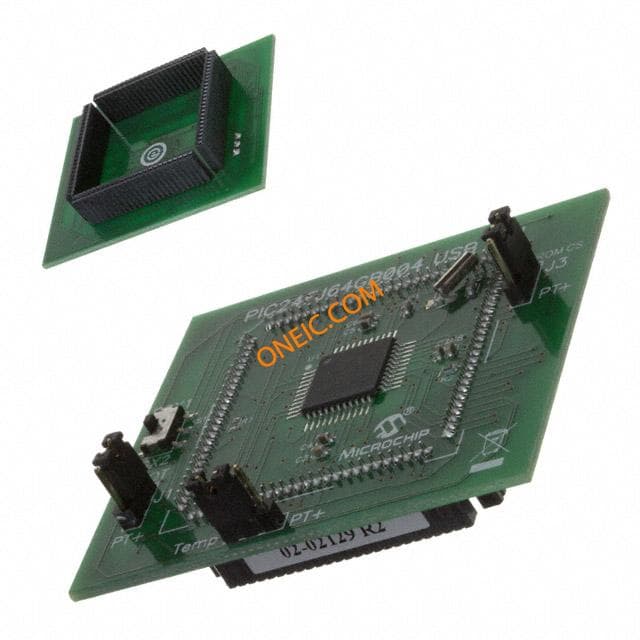

PIC24FJ64GB004 PIM For Explorer 16 Daughter Cards & OEM Boards PIC24FJ64GB004 PIM PIC24FJ64GB004 PIM MODULE PLUG-IN PIC24FJ64GB004 MA240019, Module, 16 bit, PIC, Plug-in Module for the PIC24FJ64GB004 MCU MOD, PLUG-IN, 24FJ64GB004, FOR EXP16 PIC24FJ64GB004PIMforExplorer16-DevelopmentKit PIC24FJ64GB004 Module -, MA240019, Microchip
