PIC24FJ64GA104-I/ML
| Manufacturer | |
| Description | MCU 16-bit PIC24 PIC RISC 64KB Flash 2.5V/3.3V 44-Pin QFN EP MCU 16-bit PIC24F PIC RISC 64KB Flash 2.5V/3.3V 44-Pin QFN EP 16-bit, 16 MIPS, 64KB Flash, 8KB RAM IC MCU 16BIT 64KB FLASH 44QFN 16-bit Microcontrollers - MCU 64KB Flash 8KB RAM, nanoWatt MCU, 16BIT, 64K FLASH, 16MIPS, 44QFN PIC microcontroller; SRAM:8192B; 32MHz; QFN44; 2÷3.6V Microchip PIC24FJ 系列 16 bit PIC MCU, 32MHz, 64 kB ROM 闪存, 8 kB RAM, 26针 QFN封装 |
| Category |
Business
| MOQ | 320 | Unit Pack | 45 |
| Other Names | PIC24FJ64GA104IML | Product Category | 16-bit Microcontrollers - MCU |
| Standard Package | Bulk | Factory Pack Quantity | 45 |
| Standard Package Name | QFN | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Approval Agency | No | ||
Electrical
| Speed | 32 MHz | Memory | 64kB |
| RAM Size | 8 KB | Core Size | 16-Bit |
| Core Type | PIC | Interface | I2C/SPI/UART |
| Clock Rate | 32 MHz | Memory Size | 8 KB |
| Number of I/O | 35 | Number of Bits | 10 |
| Voltage Rating | 2 | Clock Frequency | :32MHz |
| Data Converters | A/D 13x10b | Frequency - Max | 32MHz |
| Number of DAC's | :5 | Oscillator Type | Internal |
| Serial Protocol | 2 | Voltage - Supply | 2.5|3.3 V |
| Number of Channels | 13 | Program Memory Size | 64 KB |
| Program Memory Type | Flash | Number of ADCs / DACs | 13 |
| Voltage - Supply (Min) | 2...3.6V | Number of Bits per Element | 10 bit |
| Voltage - Supply (Vcc/Vdd) | 2 V ~ 3.6 V | ||
Mechanical
| Width | 8 | Weight | 0.00022 |
| Packaging | Tube | Lead Style | No Lead |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :44 |
| Package / Case | 44QFN EP | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 8 | Package Quantity | QFN EP |
| Number of Positions | 44 | Shell Size - Insert | 0.88 |
| Supplier Device Package | 44-QFN (8x8) | Number of Cores/Bus Width | 16 Bit |
Product Info
| SPI | 2 | Spg | 45 |
| Type | PIC microcontroller | Series | PIC24F |
| Protocol | 2 | Base Unit | :PIC24F |
| Flash Size | :64KB | On-Chip RAM | 13-chx10-bit |
| Peripherals | Brown-out Detect/Reset, LVD, POR, PWM, WDT | Architecture | RISC |
| Connectivity | I²C, IrDA, SPI, UART/USART | Core Processor | PIC |
| Built in Switch | 32kHz, 8MHz | Number of Units | 1 |
| Number of Timers | 5 | Controller Series | :PIC24FJxxGAxxx |
| RF Family/Standard | PIC24 | DigiKey Programmable | Yes |
| Number of Macrocells | 0 | Printed Circuit Board | 44 |
| Number of A/D Converters | :13 | ||
Environmental
| Operating Temperature | -40 to 85 °C | ||
Documents & Media
Similar Parts
DV164035
microchip
MPLAB ICD 3 In Circuit Debugger In-Circuit Debuggers MPLAB ICD3 MPLAB ICD3 In-Circuit Debugger MPLAB ICD3 IN-CIRC DEBUGGER DV164035, Programmer, 16 bit, PIC DEBUGGER, MPLAB ICD 3, DSPIC FOR PIC MPLAB ICD 3 In-Circuit Debugger Kit MPLABICD3IncircuitDebugger Programmer: microcontrollers; USB; No.of diodes:3 In-Circuit Debugger/Programmer ICD3 PC hosted mode, DV164035, Microchip Microchip MPLAB ICD 3 在线调试器 处理器和微控制器开发套件
DM240011
microchip
MPLAB Starter Kit For PIC24F Development Boards & Kits - PIC / DSPIC MPLAB Starter Kit for PIC24F MCU MPLAB Starter Kit for PIC24F KIT STARTER MPLAB FOR PIC24F MCU DM240011, Development Kit, 16 bit, PIC PIC24F, OLED, MPLAB STARTER KIT MPLABSTARTERKITFORPIC24FMCU,PICDEMO Development kit: Microchip; PIC24FJ256GB110; OLED 128x64 MPLAB Starter Kit for PIC24F PC hosted mode, DM240011, Microchip
DM240001
microchip
Explorer 16 Demonstration Board For 6-Bit Microcontrollers Development Boards & Kits - PIC / DSPIC PICDEM PIC24/dsPIC33 EXPLORER 16 KIT PICDEM PIC24/dsPIC33 Explorer BOARD DEMO PIC24/DSPIC33/PIC32 DM240001, Development Kit, 16 bit, PIC, Explorer 16 Demo Board PIC24, EXPLORER 16, DEV BOARD EXPLORER16DEVELOPMENTBOARD Development kit: Microchip; PIC24,PIC32,dsPIC33 Explorer 16 development board PC hosted mode 9 V, DM240001, Microchip Microchip 16 位 MCU 微控制器开发套件

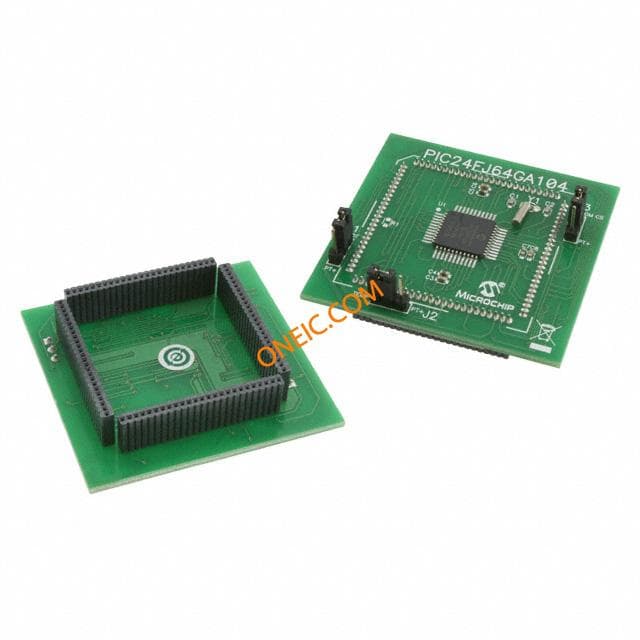

MA240020
