PIC24FJ192GA106-I/PT
| Manufacturer | |
| Description | MCU 16-bit PIC24 PIC RISC 192KB Flash 2.5V/3.3V 64-Pin TQFP Tray 16-bit, 16 MIPS, 192KB Flash, 16Kb R IC MCU 16BIT 192KB FLASH 64TQFP PIC24FJ192GA106-I/PT, 16 bit Microcontroller PIC 32MHz 192kb Flash, 16kb RAM, I2C SPI 64-Pin TQFP 16-bit Microcontrollers - MCU 16B 16MIPS 128KB RAM 53 I/O MCU, 16BIT, 192K FLASH, 16MIPS, 64TQFP 16-Bit,16MIPS,64-Pin,192KBFlash,8192bytesRAM,53I/O,nanoWatt Microchip PIC24FJ 系列 16 bit PIC MCU, 32MHz, 192 kB ROM 闪存, 16 kB RAM, 64针 TQFP封装 |
| Category |
Business
| MOQ | 1200 | Unit Pack | 160 |
| Other Names | PIC24FJ192GA106IPT | Product Category | 16-bit Microcontrollers - MCU |
| Standard Package | Trays | Factory Pack Quantity | 160 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423190 | ||
Electrical
| Input | 53 | Speed | 32 MHz |
| Timer | 5 x 16 bit | Memory | 192KBytes |
| RAM Size | 16 KB | Core Size | 16-Bit |
| Core Type | PIC | Interface | I2C/SPI/UART |
| Clock Rate | 32 MHz | Comparator | 3 |
| Resolution | 16bit | Memory Size | 16 kB |
| Memory Type | :Flash | Number of I/O | 53 |
| Voltage Range | 2-3.6V | Number of Bits | :16 |
| Voltage Rating | 2 → 3.6 V | Watchdog Timer | 1 |
| Clock Frequency | :32MHz | Data Converters | A/D 16x10b |
| FPGA Core Cells | :16 | Frequency - Max | 32MHz |
| Number of DAC's | 9 | Oscillator Type | Internal |
| Voltage - Supply | 2.5|3.3 V | Resolution (Bits) | 10bit |
| Number of Channels | 0 | Analog Input:Output | 16-Channel,10-Bit |
| Non-Volatile Memory | 0Bytes | Program Memory Size | 192 KB |
| Program Memory Type | Flash | Number of ADCs / DACs | 16 |
| Frequency (Center/Band) | 16bit | Number of Bits per Element | 10 bit |
| Voltage - Supply (Vcc/Vdd) | 2 V ~ 3.6 V | ||
Mechanical
| Width | 10mm | Height | 1.05mm |
| Length | 10mm | Weight | 0.006667 |
| Packaging | Tray | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :64 | Package / Case | 64TQFP |
| Package Cooled | TQFP | Material Finish | :MSL 3 - 168 hours |
| Size / Dimension | 10 x 10 x 1.05mm | Number of Positions | 64 |
| Supplier Device Package | 64-TQFP (10x10) | Number of Cores/Bus Width | 16 Bit |
| Pulse Width Distortion (Max) | 9(16 bit) (Compare/PWM) | ||
Product Info
| USB | 0 | Series | PIC24F |
| Flash Size | :192KB | On-Chip RAM | 16-chx10-bit |
| Peripherals | Brown-out Detect/Reset, LVD, POR, PWM, WDT | Architecture | RISC |
| Connectivity | I²C, PMP, SPI, UART/USART | Core Processor | PIC |
| Number of Timers | 5 | Controller Series | :PIC24FJxxxGAxxx |
| RF Family/Standard | PIC24 | Number of A/D Converters | :16 |
Environmental
| Operating Temperature | -40 to 85 °C | ||
Documents & Media
Similar Parts
DV164035
microchip
MPLAB ICD 3 In Circuit Debugger In-Circuit Debuggers MPLAB ICD3 MPLAB ICD3 In-Circuit Debugger MPLAB ICD3 IN-CIRC DEBUGGER DV164035, Programmer, 16 bit, PIC DEBUGGER, MPLAB ICD 3, DSPIC FOR PIC MPLAB ICD 3 In-Circuit Debugger Kit MPLABICD3IncircuitDebugger Programmer: microcontrollers; USB; No.of diodes:3 In-Circuit Debugger/Programmer ICD3 PC hosted mode, DV164035, Microchip Microchip MPLAB ICD 3 在线调试器 处理器和微控制器开发套件
DM240011
microchip
MPLAB Starter Kit For PIC24F Development Boards & Kits - PIC / DSPIC MPLAB Starter Kit for PIC24F MCU MPLAB Starter Kit for PIC24F KIT STARTER MPLAB FOR PIC24F MCU DM240011, Development Kit, 16 bit, PIC PIC24F, OLED, MPLAB STARTER KIT MPLABSTARTERKITFORPIC24FMCU,PICDEMO Development kit: Microchip; PIC24FJ256GB110; OLED 128x64 MPLAB Starter Kit for PIC24F PC hosted mode, DM240011, Microchip
DM240001
microchip
Explorer 16 Demonstration Board For 6-Bit Microcontrollers Development Boards & Kits - PIC / DSPIC PICDEM PIC24/dsPIC33 EXPLORER 16 KIT PICDEM PIC24/dsPIC33 Explorer BOARD DEMO PIC24/DSPIC33/PIC32 DM240001, Development Kit, 16 bit, PIC, Explorer 16 Demo Board PIC24, EXPLORER 16, DEV BOARD EXPLORER16DEVELOPMENTBOARD Development kit: Microchip; PIC24,PIC32,dsPIC33 Explorer 16 development board PC hosted mode 9 V, DM240001, Microchip Microchip 16 位 MCU 微控制器开发套件
MA240015
microchip
PIC24FJ256GA110 MCU Sample For Use With The Explorer 16 Development Board Daughter Cards & OEM Boards PIC24F GA Plug In Module PIC24F256GA PIM RoHS BOARD MCV PIM FOR 24F256GA PIM, FOR PIC24F GA PIC24F256GAGeneral-PurposePIM 100 Pin PIC24F256GA General Purpose Plug-In Module

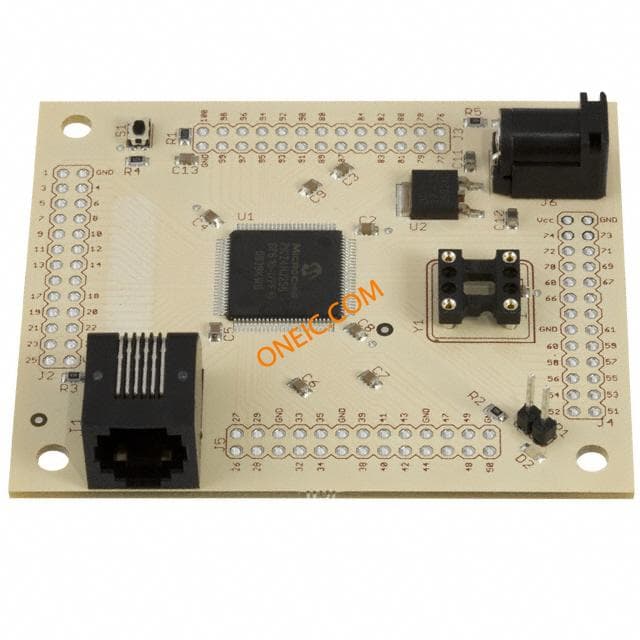

DKSB1011A
