PIC24FJ128GA010-I/PF
| Manufacturer | |
| Description | MCU 16-bit PIC24 PIC RISC 128KB Flash 2.5V/3.3V 100-Pin TQFP Tray 16-bit Microcontrollers - MCU 16 Bit 128KB Flash 8Kb RAM 53 I/O MCU 16-bit PIC24F PIC RISC 128KB Flash 2.5V/3.3V 100-Pin TQFP Tray 128KB Flash, 8 Kb RAM, 84 I/O IC MCU 16BIT 128KB FLASH 100TQFP PIC24FJ128GA010-I/PF, 16 bit Microcontroller PIC 32MHz 128kb Flash, 8kb RAM, I2C SPI 100-Pin TQFP MCU 16-Bit PIC24 RISC 128KB Flash 2.5V/3.3V 100-Pin TQFP Tray 16BIT MCU 128K FLASH 8K RAM, SMD 100-Pin,128KBFlash,8KBRAM,84I/O PIC microcontroller; SRAM:8192B; 32MHz; TQFP100; 2÷3.6V Microchip PIC24FJ 系列 16 bit PIC MCU, 32MHz, 128 kB ROM 闪存, 8 kB RAM, 100针 TQFP封装 |
| Category |
Business
| MOQ | 238 | Unit Pack | 90 |
| Other Names | PIC24FJ128GA010IPF | Product Category | 16-bit Microcontrollers - MCU |
| Standard Package | Trays | Factory Pack Quantity | 90 |
| Standard Package Name | QFP | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | :24FJ128 | Approval Agency | No |
Electrical
| Input | 85 | Speed | 16 MHz |
| Timer | 5 x 16 bit | Memory | 128KBytes |
| RAM Size | 8 KB | Core Size | 16-Bit |
| Core Type | PIC | Interface | I2C/SPI/UART |
| Clock Rate | 32 MHz | Comparator | 2 |
| Resolution | 10bit | Memory Size | 8 KB |
| Memory Type | :SRAM | Number of I/O | 54 |
| Voltage Range | 2-3.6V | Number of Bits | 10 |
| Voltage Rating | 2 → 3.6 V | Clock Frequency | :32MHz |
| Data Converters | A/D 16x10b | Frequency - Max | 32MHz |
| Number of DAC's | 5 | Oscillator Type | Internal |
| Serial Protocol | 2 | Voltage - Supply | 2.5|3.3 V |
| Resolution (Bits) | 10bit | Number of Channels | 16 |
| Analog Input:Output | 16-Channel,10-Bit | Non-Volatile Memory | 0Bytes |
| Program Memory Size | 128 KB | Program Memory Type | Flash |
| Number of ADCs / DACs | 16 | Voltage - Supply (Min) | 2...3.6V |
| Frequency (Center/Band) | 16bit | Number of Bits per Element | 10 bit |
| Voltage - Supply (Vcc/Vdd) | 2 V ~ 3.6 V | ||
Mechanical
| Width | 14mm | Height | 1.05mm |
| Length | 14mm | Weight | 0.02 |
| Packaging | Tray | Lead Style | Gull-wing |
| Termination | :SMD | Lead Spacing | :0.65mm |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :100 | Package / Case | 100TQFP |
| Package Cooled | TQFP | Material Finish | :MSL 3 - 168 hours |
| Length - Overall | 14 | Package Quantity | TQFP |
| Size / Dimension | 14 x 14 x 1.05mm | Number of Positions | 100 |
| Shell Size - Insert | 1 | Supplier Device Package | 100-TQFP (14x14) |
| Number of Cores/Bus Width | 16 Bit | Pulse Width Distortion (Max) | 5(10 bit) (Compare/PWM) |
Product Info
| SPI | 2 | Spg | 270 |
| USB | 0 | Type | PIC microcontroller |
| Series | PIC24F | Features | PMP |
| Protocol | 2 | Flash Size | :128KB |
| On-Chip RAM | 16-chx10-bit | Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Architecture | RISC | Connectivity | I²C, PMP, SPI, UART/USART |
| Core Processor | PIC | Built in Switch | 32kHz, 8MHz |
| Number of Units | 1 | Number of Timers | 5 |
| Controller Series | :PIC24FJxxxGAxxx | RF Family/Standard | PIC24 |
| DigiKey Programmable | Yes | Number of Macrocells | 0 |
| Printed Circuit Board | 100 | Microcontroller Features | :Self-Reprogrammable under Software Control, On-Chip LDO Regulator, Operating Voltage Range of 2.0V to 3.6V |
| Number of A/D Converters | :16 | ||
Environmental
| Temperature Range | :Industrial | Operating Temperature | -40 to 85 °C |
Documents & Media
Similar Parts
AC164323
microchip
100L TQFP SOCKET MODULE FOR MPLAB PM3 Sockets & Adapters Socket Module 100L TQFP Socket Module for MPLAB PM MODULE SKT FOR 100TQFP UNIVERSAL SOCKET MODULE
DV164033
microchip
Evaluation Board For Application Development Using Microchipys PIC24F, 16Bit Microcontrollers Development Boards & Kits - PIC / DSPIC ICD 2 w/ Explorer 16 Development Board Explorer 16 Starter Kit KIT START EXPLORER 16 MPLAB ICD2 EXPLORER 16 KIT; MPLAB ICD 2 WITH EXPORER 16 PIC24, DSPIC33, EXPLORER 16 KIT EXPLORER16KIT,MPLABICD2WITHEXPORER16 Development kit: Microchip
DV164035
microchip
MPLAB ICD 3 In Circuit Debugger In-Circuit Debuggers MPLAB ICD3 MPLAB ICD3 In-Circuit Debugger MPLAB ICD3 IN-CIRC DEBUGGER DV164035, Programmer, 16 bit, PIC DEBUGGER, MPLAB ICD 3, DSPIC FOR PIC MPLAB ICD 3 In-Circuit Debugger Kit MPLABICD3IncircuitDebugger Programmer: microcontrollers; USB; No.of diodes:3 In-Circuit Debugger/Programmer ICD3 PC hosted mode, DV164035, Microchip Microchip MPLAB ICD 3 在线调试器 处理器和微控制器开发套件
DM240011
microchip
MPLAB Starter Kit For PIC24F Development Boards & Kits - PIC / DSPIC MPLAB Starter Kit for PIC24F MCU MPLAB Starter Kit for PIC24F KIT STARTER MPLAB FOR PIC24F MCU DM240011, Development Kit, 16 bit, PIC PIC24F, OLED, MPLAB STARTER KIT MPLABSTARTERKITFORPIC24FMCU,PICDEMO Development kit: Microchip; PIC24FJ256GB110; OLED 128x64 MPLAB Starter Kit for PIC24F PC hosted mode, DM240011, Microchip
MA240011
microchip
PIC24F 100P to 100P TQFP Plug-In Module Daughter Cards & OEM Boards PIC24 100P to 100P Plug-In Module PIC24 100P to 100P QFP Plug-In Modul MODULE PIC24 100P TO 100QFP MA240011, Module, 16 bit, PIC, Plug-in Module for the PIC24FJ128GA010 MCU PIM, 100P TO 100P QFP, PIC24 Expansion board; PIC24FJ128GA010; In the set: prototype board
AC244022
microchip
Processor Extension Pak For PIC18F1XK50 Sockets & Adapters Procs Extnsn Pak for PIC24FJ128GA010-ICE Processor Extension Pak for PIC24FJ1 PROC EXTENS PAK 24FJ128GA010-ICE EXTENSION PAK, FOR PIC24FJ128GA010
DM240001
microchip
Explorer 16 Demonstration Board For 6-Bit Microcontrollers Development Boards & Kits - PIC / DSPIC PICDEM PIC24/dsPIC33 EXPLORER 16 KIT PICDEM PIC24/dsPIC33 Explorer BOARD DEMO PIC24/DSPIC33/PIC32 DM240001, Development Kit, 16 bit, PIC, Explorer 16 Demo Board PIC24, EXPLORER 16, DEV BOARD EXPLORER16DEVELOPMENTBOARD Development kit: Microchip; PIC24,PIC32,dsPIC33 Explorer 16 development board PC hosted mode 9 V, DM240001, Microchip Microchip 16 位 MCU 微控制器开发套件
MA160011
microchip
PICDEM LCD PLUG-IN MODULES (PIC16F91X) Daughter Cards & OEM Boards PICDEM LCD PLUG-IN Modules (PIC16F91X) DAUGHTER BOARD PICDEM LCD 16F91X
DKSB1011A
Digi-Key Evaluation Boards

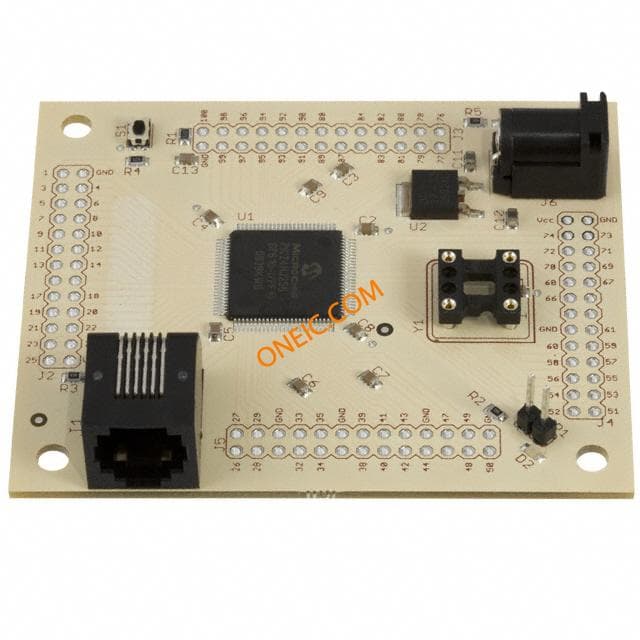

PIC24 BREAKOUT BOARD
