PIC18F83J11T-I/PT
| Manufacturer | |
| Description | MCU 8-bit PIC18 PIC RISC 8KB Flash 2.5V/3.3V 80-Pin TQFP T/R IC MCU 8BIT 8KB FLASH 80TQFP 8-bit Microcontrollers - MCU 8KB Flash 1024bytes-RAM 67I/O |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | MCU | Tradename | PIC |
| Other Names | PIC18F83J11T-I/PTTR | Product Category | 8-bit Microcontrollers - MCU |
| Standard Package | Tape & Reel | Factory Pack Quantity | 1200 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Speed | 40 MHz | RAM Size | 1 KB |
| Core Size | 8-Bit | Core Type | PIC |
| Interface | I2C/SPI/USART | Clock Rate | 40 MHz |
| Memory Size | 1 KB | Number of I/O | 68 |
| Data Converters | A/D 12x10b | Oscillator Type | Internal |
| Voltage - Supply | 2.5|3.3 V | Resolution (Bits) | 10 bit |
| Number of Channels | 12 | Program Memory Size | 8 KB |
| Program Memory Type | Flash | Number of ADCs / DACs | 12 |
| Power Dissipation (Max) | 1000 mW | Number of Counter/Timers | 4 Timer |
| Number of Bits per Element | 10 bit | Voltage - Supply (Vcc/Vdd) | 2 V ~ 3.6 V |
Mechanical
| Width | 12 mm | Height | 1 mm |
| Length | 12 mm | Packaging | Tape & Reel (TR) |
| Mounting Style | SMD/SMT | Package / Case | 80TQFP |
| Supplier Device Package | 80-TQFP (12x12) | Number of Cores/Bus Width | 8 Bit |
Product Info
| Series | PIC18 | On-Chip RAM | 12-chx10-bit |
| Peripherals | Brown-out Detect/Reset, LVD, POR, PWM, WDT | Connectivity | EBI/EMI, I²C, SPI, UART/USART |
| Manufacturer | Microchip Technology | Core Processor | PIC |
| Number of Timers | 4 | RF Family/Standard | PIC18 |
| Number of Inputs and Type | 68 I/O | ||
Environmental
| Operating Temperature | -40 to 85 °C | ||
Documents & Media
PDF Document
Online Document
Online Document
Online Document
Online Document
Online Document
Online Document
PDF Document
Similar Parts
AC164328
microchip
80L TQFP SOCKET MODULE FOR MPLAB PM3 Sockets & Adapters Socket Module MPLAB PM3 80L TQFP Socket Module MODULE SKT FOR 80TQFP Socket Module for MPLAB PM3 (TQFP 80L)
$2363.2973
Details

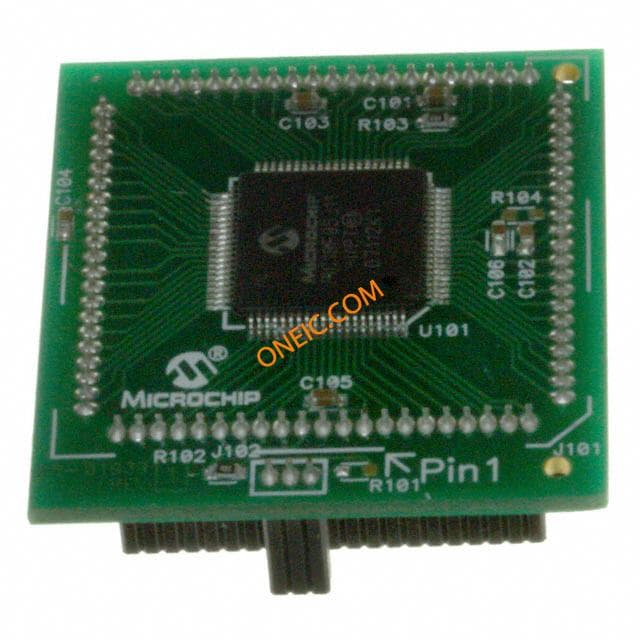

MA180018
