PIC18F4680-E/P
| Manufacturer | |
| Description | MCU 8-bit PIC18 PIC RISC 64KB Flash 5V 40-Pin PDIP Tube 64 KB Flash, 3328 RAM, 36 I/O w/ECAN IC MCU 8BIT 64KB FLASH 40DIP 8-bit Microcontrollers - MCU 64KB 3328 RAM w/ECAN IC, 8BIT MCU, PIC18F, 40MHZ, DIP-40 |
| Category |
Business
| MOQ | 160 | Unit Pack | 10 |
| Product Category | 8-bit Microcontrollers - MCU | Standard Package | Rail / Tube |
| Factory Pack Quantity | 10 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85411000 |
Electrical
| Speed | 40 MHz | RAM Size | 3.25 KB |
| Core Size | 8-Bit | Core Type | PIC |
| Interface | I2C/SPI/USART | Clock Rate | 40 MHz |
| EEPROM Size | 1K x 8 | Memory Size | 3.25 KB |
| Number of I/O | 44 | Watchdog Timer | 1 |
| Clock Frequency | :40MHz | Data Converters | A/D 11x10b |
| Oscillator Type | Internal | Voltage - Supply | 5 V |
| Number of Channels | 11 | Analog Input:Output | 2 |
| Program Memory Size | 64 KB | Program Memory Type | Flash |
| Power Dissipation (Max) | 1000 mW | Number of Bits per Element | 10 bit |
| Voltage - Supply (Vcc/Vdd) | 4.2 V ~ 5.5 V | ||
Mechanical
| Weight | 0.01 | Packaging | Tube |
| Mounting Style | Through Hole | Number of Pins | :40 |
| Package / Case | 40PDIP | Material Finish | :- |
| Supplier Device Package | 40-PDIP | Number of Cores/Bus Width | 8 Bit |
Product Info
| Series | PIC18 | On-Chip RAM | 11-chx10-bit |
| Peripherals | Brown-out Detect/Reset, HLVD, POR, PWM, WDT | Connectivity | CAN, I²C, SPI, UART/USART |
| Core Processor | PIC | Number of Timers | 4 |
| Controller Series | :PIC18F4xxx | RF Family/Standard | PIC18 |
Environmental
| Operating Temperature | -40 to 125 °C | ||
Documents & Media
Similar Parts
DVA18XP400
microchip
Device Adapter 18F4220 Dip 40 Pin Sockets & Adapters PIC18F4220 4320 Dev Adap DEVICE ADAPTER 18F4220 PDIP 40LD
DM163022
microchip
Demonstration Board To Support Different PIC Microcontroller Devices Development Boards & Kits - PIC / DSPIC PICDEM 2 Plus PIC16C62/63/64/65/73/74 Demo-B BOARD DEMO PICDEM-2 PLUS PICDEM 2 PLUS, LCD, DEMO BOARD PICDEM2PlusDemoBoardforPIC16xxxandPIC18xxxDevices
DM183032
microchip
PIC18 Low Cost DEMO Board Development Boards & Kits - PIC / DSPIC PIC 18 Explorer Board PICDEM PIC18 Explorer Board BOARD EXPLORER PICDEM PIC18 DM183032, Development Kit, 8 bit, PIC, PIC18F87J11 Processor PIM, PICDEM PIC18 Explorer Board PICDEM, PIC18, EXPLORER BOARD PICDEMPIC18EXPLORERBOARD Development kit: Microchip; PIC18F8722,PIC18F87J11 PICDEM PIC18 Explorer board PC hosted mode 9 V, DM183032, Microchip Microchip 8 位 MCU 微控制器开发套件
ACICE0206
microchip
40PDIP 600 MIL ADAPTER PLUG Sockets & Adapters 600 mil adapter plug 40PDIP 600 mil adapter plug ADAPTER MPLABICE 40P 600 MIL Adapter Plug used with 40 Pin 600 mil Width Extender

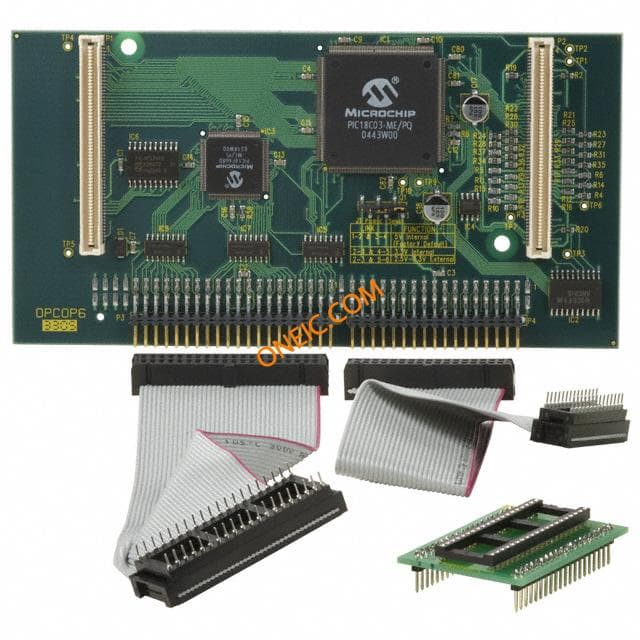

I3-DB18F4680
RF Solutions
BOARD DAUGHTER ICEPIC3
