PIC18F4620-I/PT
| Manufacturer | |
| Description | MCU 8-bit PIC18 PIC RISC 64KB Flash 5V 44-Pin TQFP Tray 8 bit MCU TQFP44 IC MCU 8BIT 64KB FLASH 44TQFP PIC18F4620-I/PT, 8 bit Microcontroller PIC 40MHz 64kb Flash, 3986B RAM, I2C SPI 44-Pin TQFP IC MCU, 8BIT, PIC18, 40MHZ, TQFP44 IC, SM 8-BIT FLASH MCU, WAFFLE80 44-Pin,64KBFlash,3968RAM,36I/O PIC microcontroller; EEPROM:1024B; SRAM:3968B; 40MHz; TQFP44 Microcontroller 8 Bit TQFP-44, PIC18F4620-I/PT, Microchip Microchip PIC18F 系列 8 bit PIC MCU, 40MHz, 64 kB、1024 B ROM 闪存, 3986 B RAM, 44针 TQFP封装 8-bit Microcontrollers - MCU 64KB 3968 RAM 36 I/O PIC18F 64K TQFP44 85°C |
| Category |
Business
| MOQ | 1 | Unit Pack | 160 |
| Other Names | PIC18F4620IPT | Standard Package | Trays |
| Standard Package Name | QFP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | :18F4620 | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | Approval Agency | No |
Electrical
| Input | 36 | Speed | 40 MHz |
| Timer | 1 x 8 bit, 3 x 16 bit | Memory | 64KBytes |
| RAM Size | 3986 byte | Core Size | 8-Bit |
| Core Type | PIC | Frequency | 40 MHz |
| Interface | SPI/I2C/USART | Clock Rate | 40 |
| Comparator | 2 | EEPROM Size | 256Byte |
| Memory Size | 8KByte | Memory Type | FLASH |
| Number of I/O | 36 | Voltage Range | 2-5.5V |
| Number of Bits | 10 | Voltage Rating | 4.2 → 5.5 V |
| Watchdog Timer | 1 | Clock Frequency | :40MHz |
| Data Converters | A/D 13x10b | Frequency - Max | 40MHz |
| Number of DAC's | 2 | Oscillator Type | Internal |
| Voltage - Supply | 5 V | Digital I/O Lines | 36pins |
| Resolution (Bits) | 10Bit | Serial Interfaces | 1 |
| Number of Channels | 1 | Analog Input:Output | 2 |
| Non-Volatile Memory | 1KBytes | Program Memory Size | 64 KB |
| Program Memory Type | Flash | Number of ADCs / DACs | 13 |
| Voltage - Input (Min) | 5.5V | Number of 8-bit Timers | 1 |
| Voltage - Supply (Min) | 4.2 V | Frequency (Center/Band) | 16 bit, 8 bit |
| Power Dissipation (Max) | 1000 mW | Number of Bits per Element | :10 |
| Voltage - Supply (Vcc/Vdd) | 4.2 V ~ 5.5 V | ||
Mechanical
| Width | 10mm | Height | 1.05mm |
| Length | 10mm | Weight | 0.002188 |
| Packaging | TRAY | Lead Style | Gull-wing |
| Lead Spacing | :0.5mm | Mounting Type | Surface Mount |
| Number of Pins | :44 | Package / Case | 44TQFP |
| Package Cooled | TQFP | Material Finish | :MSL 3 - 168 hours |
| Length - Overall | 10 | Package Quantity | TQFP |
| Size / Dimension | 10 x 10 x 1.05mm | Number of Positions | 44 |
| Shell Size - Insert | 1 | Supplier Device Package | 44-TQFP (10x10) |
| Number of Cores/Bus Width | 8 Bit | Pulse Width Distortion (Max) | 1(CCP), 1(ECCP) |
Product Info
| SPI | 1 | Spg | 160 |
| USB | 0 | Type | PIC microcontroller |
| Protocol | 1 | Matchcode | PIC18F4620-I/PT |
| Flash Size | :64KB | SPI Number | 1 |
| On-Chip RAM | 13-chx10-bit | Peripherals | Brown-out Detect/Reset, HLVD, POR, PWM, WDT |
| Architecture | RISC | Connectivity | I²C, SPI, UART/USART |
| Programmable | Yes | Core Processor | PIC |
| Built in Switch | 32kHz, 8MHz | Number of Units | 1 |
| Number of Timers | 4 | Controller Series | :PIC18F4xxx |
| Standard Leadtime | 14 weeks | RF Family/Standard | PIC18 |
| Utilized IC / Part | :PIC18F4620-I/PT | DigiKey Programmable | Yes |
| Printed Circuit Board | 44 | Microcontroller Features | :EEPROM, ADC, Comparators, CCP/ECCP, ECAN, BOR, PWRT, POR, WDT, PSP, MSSP |
| Number of A/D Converters | :13 | ||
Environmental
| Temperature Range | :Industrial | Temperature - Test | -40°C |
| Operating Temperature | -40 to 85 °C | Operating Temperature - Junction | 85C |
Documents & Media
Similar Parts
SW500008
microchip
Hi-Tech C Compiler For Pic18 MCUs Development Software PICC-18STD Compiler HI-TECH C Compiler for PIC18 MCUs - PICC-18 STD HI-TECH C COMPILER, FOR PIC18, STD Compilers,HI-TECHCCompilerforPIC18MCUs-Standard
AC164305
microchip
44L TQFP SOCKET MODULE FOR MPLAB PM3 Sockets & Adapters 44L Sckt MOD for MPLAB PM3 MODULE SKT FOR PM3 44TQFP AC164305, Module, 8 bit, PIC, Socket Module for MPLAB PM3 44LTQFPSOCKETMODULEFORMPLABPM3 Socket Module for MPLAB PM3 (TQFP 44L) Microchip 8 位 MCU 处理器和微控制器开发套件
DM163022
microchip
Demonstration Board To Support Different PIC Microcontroller Devices Development Boards & Kits - PIC / DSPIC PICDEM 2 Plus PIC16C62/63/64/65/73/74 Demo-B BOARD DEMO PICDEM-2 PLUS PICDEM 2 PLUS, LCD, DEMO BOARD PICDEM2PlusDemoBoardforPIC16xxxandPIC18xxxDevices
DV164035
microchip
MPLAB ICD 3 In Circuit Debugger In-Circuit Debuggers MPLAB ICD3 MPLAB ICD3 In-Circuit Debugger MPLAB ICD3 IN-CIRC DEBUGGER DV164035, Programmer, 16 bit, PIC DEBUGGER, MPLAB ICD 3, DSPIC FOR PIC MPLAB ICD 3 In-Circuit Debugger Kit MPLABICD3IncircuitDebugger Programmer: microcontrollers; USB; No.of diodes:3 In-Circuit Debugger/Programmer ICD3 PC hosted mode, DV164035, Microchip Microchip MPLAB ICD 3 在线调试器 处理器和微控制器开发套件
AC164020
microchip
Development Tools, Module Socket For 18F2X31 28DIP Sockets & Adapters PRO MATE II Sckt MOD MODULE SKT PROMATEII 44TQFP
DM163022-1
microchip
Picdem 2 Plus Board Demonstrates The Capabilities Of Microchips 8-Bit Microcontrollers Development Boards & Kits - PIC / DSPIC PICDEM 2 Plus PICDEM 2 Plus BOARD DEMO PIC16F87X PIC18FXX2 PICDEM 2 Plus w/ ICD interface PIC16F, PICDEM 2 PLUS, DEMO BOARD Development kit: Microchip; PIC16; Connector type: RJ12 PICDEM 2 Plus PC hosted mode PIC16F1937-I/P 9 V, DM163022-1, Microchip Microchip 8 位 MCU 开发套件

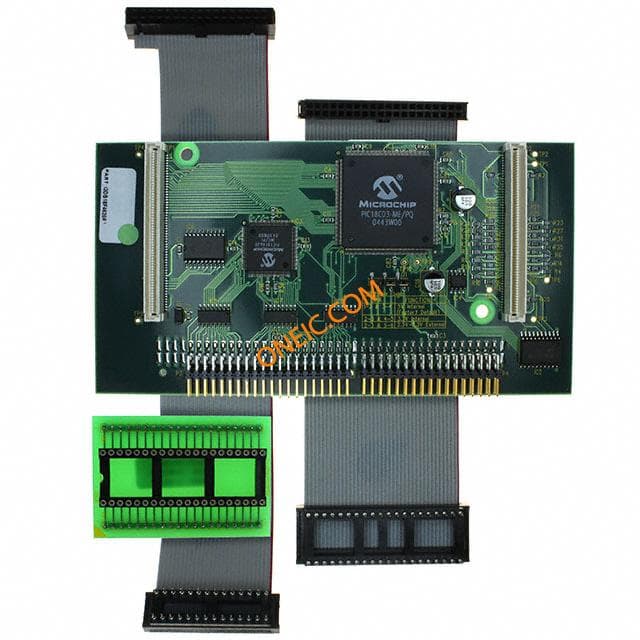

I3DB18F4620
