PIC18F45K20-I/P
| Manufacturer | |
| Description | MCU 8-Bit PIC18 PIC RISC 32KB Flash 2.5V/3.3V 40-Pin PDIP Tube MCU 8-bit PIC18 PIC RISC 32KB Flash 2.5V/3.3V 40-Pin PDIP Tube 8 bit MCU PDIP40 IC MCU 8BIT 32KB FLASH 40DIP PIC18F45K20-I/P, 8 bit Microcontroller PIC 64MHz 32kb Flash, 1536B RAM, I2C SPI 40-Pin PDIP 8-bit Microcontrollers - MCU 32KB Flash 1536B RAM 25 I/O 8B IC, MCU 8BIT 32K FLASH, PDIP40 PIC microcontroller; EEPROM:256B; SRAM:1536B; 64MHz; DIP40 Microcontroller 8 Bit PDIP-40, PIC18F45K20-I/P, Microchip Microchip PIC18F 系列 8 bit PIC MCU, 64MHz, 32 kB、256 B ROM 闪存, 1536 B RAM, 40针 PDIP封装 PIC18F 32K PDIP40 125°C |
| Category |
Business
| MOQ | 10 | Unit Pack | 10 |
| Other Names | PIC18F45K20IP | Product Category | 8-bit Microcontrollers - MCU |
| Standard Package | Rail / Tube | Factory Pack Quantity | 10 |
| Standard Package Name | PDIP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Leadfree Defin | RoHS-conform | Approval Agency | No |
Electrical
| Speed | 64 MHz | Timer | 1 x 8 bit, 3 x 16 bit |
| Memory | 32kB | Ethernet | 0 |
| RAM Size | 1.5 KB | Core Size | 8-Bit |
| Core Type | PIC | Interface | I2C/SPI/USART |
| Clock Rate | 64 MHz | EEPROM Size | 256Byte |
| Memory Size | 32KByte | Memory Type | FLASH |
| Display Type | 0 | Number of I/O | 36 |
| Number of Bits | 10 | Voltage Rating | 1.8 → 3.6 V |
| Watchdog Timer | 1 | Clock Frequency | :64MHz |
| Data Converters | A/D 14x10b | Frequency - Max | 64MHz |
| Number of DAC's | 1 | Oscillator Type | Internal |
| Voltage - Supply | 2.5|3.3 V | Digital I/O Lines | 36pins |
| Resolution (Bits) | 10Bit | Serial Interfaces | 1 |
| Number of Channels | 1 | Analog Input:Output | 2 |
| Program Memory Size | 32 KB | Program Memory Type | Flash |
| Number of ADCs / DACs | 14 | Voltage - Input (Min) | 3.6V |
| Number of 8-bit Timers | 1 | Voltage - Supply (Min) | 1.8...3.6V |
| Frequency (Center/Band) | 16 bit, 8 bit | Power Dissipation (Max) | 1000 mW |
| Number of Bits per Element | 10 bit | Voltage - Supply (Vcc/Vdd) | 1.8 V ~ 3.6 V |
Mechanical
| Width | 0.58in | Height | 0.195in |
| Length | 2.095in | Weight | 0.2 |
| Packaging | TUBE | Lead Style | Through Hole |
| Termination | :Through Hole | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Number of Pins | :40 |
| Package / Case | 40PDIP | Package Cooled | PDIP |
| Material Finish | :- | Length - Overall | 53.21(Max) |
| Package Quantity | PDIP | Size / Dimension | 2.095 x 0.58 x 0.195in |
| Number of Positions | 40 | Shell Size - Insert | 4.95(Max) |
| Supplier Device Package | 40-PDIP | Number of Cores/Bus Width | 8 Bit |
| Pulse Width Distortion (Max) | 1(CCP), 1(ECCP) | ||
Product Info
| SPI | 1 | Spg | 10 |
| USB | 0 | Type | PIC microcontroller |
| Series | PIC18 | Protocol | 1 |
| Base Unit | :PIC18F | Matchcode | PIC18F45K20-I/P |
| CAN Number | 0 | Flash Size | :32KB |
| SPI Number | 1 | On-Chip RAM | 14-chx10-bit |
| Peripherals | Brown-out Detect/Reset, HLVD, POR, PWM, WDT | Architecture | RISC |
| Connectivity | I²C, SPI, UART/USART | Core Processor | PIC |
| Built in Switch | 16MHz, 32kHz | Number of Units | 1 |
| Number of Timers | 4 | Controller Series | :PIC18FxxKxx |
| Standard Leadtime | 14 weeks | RF Family/Standard | PIC18 |
| DigiKey Programmable | Yes | Printed Circuit Board | 40 |
| Number of A/D Converters | :14 | ||
Environmental
| Temperature - Test | -40°C | Operating Temperature | -40 to 85 °C |
Documents & Media
Similar Parts
SW500008
microchip
Hi-Tech C Compiler For Pic18 MCUs Development Software PICC-18STD Compiler HI-TECH C Compiler for PIC18 MCUs - PICC-18 STD HI-TECH C COMPILER, FOR PIC18, STD Compilers,HI-TECHCCompilerforPIC18MCUs-Standard
DV164035
microchip
MPLAB ICD 3 In Circuit Debugger In-Circuit Debuggers MPLAB ICD3 MPLAB ICD3 In-Circuit Debugger MPLAB ICD3 IN-CIRC DEBUGGER DV164035, Programmer, 16 bit, PIC DEBUGGER, MPLAB ICD 3, DSPIC FOR PIC MPLAB ICD 3 In-Circuit Debugger Kit MPLABICD3IncircuitDebugger Programmer: microcontrollers; USB; No.of diodes:3 In-Circuit Debugger/Programmer ICD3 PC hosted mode, DV164035, Microchip Microchip MPLAB ICD 3 在线调试器 处理器和微控制器开发套件
DM183032
microchip
PIC18 Low Cost DEMO Board Development Boards & Kits - PIC / DSPIC PIC 18 Explorer Board PICDEM PIC18 Explorer Board BOARD EXPLORER PICDEM PIC18 DM183032, Development Kit, 8 bit, PIC, PIC18F87J11 Processor PIM, PICDEM PIC18 Explorer Board PICDEM, PIC18, EXPLORER BOARD PICDEMPIC18EXPLORERBOARD Development kit: Microchip; PIC18F8722,PIC18F87J11 PICDEM PIC18 Explorer board PC hosted mode 9 V, DM183032, Microchip Microchip 8 位 MCU 微控制器开发套件
DM164124
microchip
PIC18F4XK20 Starter Kit Development Boards & Kits - PIC / DSPIC K20 Demo Board KIT STARTER FOR PIC18F4XK20 PIC18F4xK20StarterKit,PICkit2
MA180026
microchip

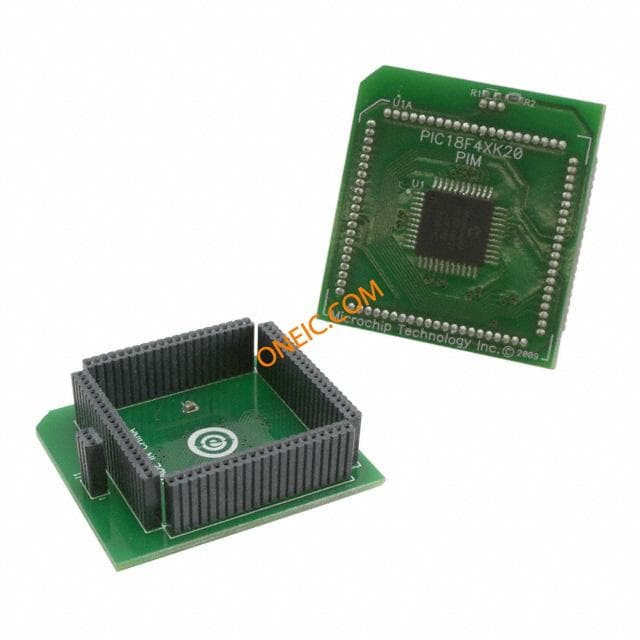

PIC18F45K20 44-PIN TQFP TO 84-PIN PIM Daughter Cards & OEM Boards PIC18F45K20 44P TQFP to 84P PIM PIC18F46K20 44-PIN TQFP TO 84- PIC18F46K20 44-PIN TQFP TO 84-PIN PI MODULE PLUG-IN PIC18F45K20 MA180026, Module, 8 bit, PIC, Plug-in Module for the PIC18F46K20 MCU MODULE, PIC18F45K20, 44/84 PIN TQFP PIC18F45K2PIM
