PIC18F4585-I/ML
| Manufacturer | |
| Description | MCU 8-bit PIC18 PIC RISC 48KB Flash 5V 44-Pin QFN EP Tube 8 bit MCU QFN44 IC MCU 8BIT 48KB FLASH 44QFN 8-bit Microcontrollers - MCU 48KB 3328 RAM w/ECAN PIC18F 48K QFN44 85°C |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 90 | Unit Pack | 45 |
| Other Names | PIC18F4585IML | Product Category | 8-bit Microcontrollers - MCU |
| Standard Package | Rail / Tube | Factory Pack Quantity | 45 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | RoHS-conform |
Electrical
| Speed | 40 MHz | RAM Size | 3.25 KB |
| Core Size | 8-Bit | Core Type | PIC |
| Interface | I2C/SPI/USART | Clock Rate | 40 MHz |
| EEPROM Size | 256Byte | Memory Size | 32KByte |
| Memory Type | FLASH | Number of I/O | 36 |
| Watchdog Timer | 1 | Data Converters | A/D 11x10b |
| Frequency - Max | 40MHz | Number of DAC's | 2 |
| Oscillator Type | Internal | Voltage - Supply | 5 V |
| Digital I/O Lines | 34pins | Resolution (Bits) | 10Bit |
| Number of Channels | 1 | Analog Input:Output | 2 |
| Program Memory Size | 48 KB | Program Memory Type | Flash |
| Number of ADCs / DACs | 8channels | Power Dissipation (Max) | 1000 mW |
| Number of Bits per Element | 10 bit | Voltage - Supply (Vcc/Vdd) | 4.2 V ~ 5.5 V |
Mechanical
| Packaging | TUBE | Mounting Style | SMD/SMT |
| Package / Case | 44QFN EP | Supplier Device Package | 44-QFN (8x8) |
| Number of Cores/Bus Width | 8 Bit | ||
Product Info
| USB | No | Series | PIC18 |
| Matchcode | PIC18F4585-I/ML | CAN Number | 1 |
| SPI Number | 1 | On-Chip RAM | 11-chx10-bit |
| Peripherals | Brown-out Detect/Reset, HLVD, POR, PWM, WDT | Connectivity | CAN, I²C, SPI, UART/USART |
| Core Processor | PIC | Number of Timers | 4 |
| Standard Leadtime | 14 weeks | RF Family/Standard | PIC18 |
Environmental
| Temperature - Test | -40°C | Operating Temperature | -25 to 85 °C |
Documents & Media
PDF Document
Online Document
Online Document
PDF Document
Online Document
Online Document
Online Document
Online Document
Online Document
Online Document
Online Document
PDF Document
Similar Parts
AC164322
microchip
28/44L QFN PM3 SOCKET MODULE Sockets & Adapters Socket Module 28/44L QFN Socket Module for MPLAB P MODULE SOCKET MPLAB PM3 28/44QFN AC164322, Module, 8 bit, PIC, Socket Module for MPLAB PM3 SOCKET MODULE, MPLAB PM3 PROGRAMMER SOCKETMODULE,AC164322 Microchip 8 位 MCU 处理器和微控制器开发套件
$3436.3800
Details
XLT44QFN2
microchip
One 44Lead QFN Transition Socket With Cable Sockets & Adapters Transition Socket SOCKET TRAN ICE 44QFN/40DIP
$1466.0800
Details

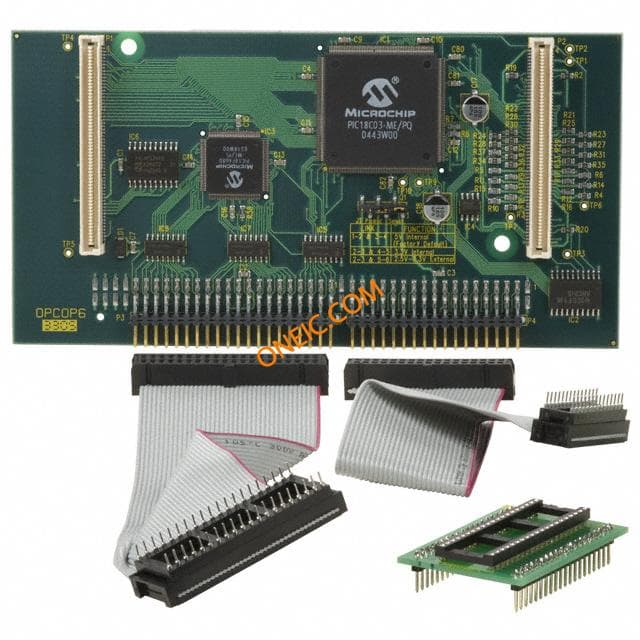

I3-DB18F4680
