PIC18F2550-I/SP
| Manufacturer | |
| Description | MCU 8-bit PIC18 PIC RISC 32KB Flash 5V 28-Pin SPDIP Tube 8-bit Microcontrollers - MCU 32kBF 2048RM FSUSB2 8 bit MCU SPDIP28 IC MCU 8BIT 32KB FLASH 28SDIP PIC18F2550-I/SP, 8 bit Microcontroller PIC 48MHz 32kb Flash, 2048B RAM, USB I2C SPI 28-Pin SPDIP IC, 8BIT FLASH MCU, 18F2550, 28SPDIP IC, 8-BIT FLASH MCU, TUBE15 IC, 8BIT MCU, PIC18F, 48MHZ, DIP-28 Microcontroller;32KBFlash;2048RAM;256EEPROM;24I/O;SPDIP-28 PIC microcontroller; EEPROM:256B; SRAM:2048B; 48MHz; DIP28 Microcontroller 8 Bit DIL-28S, PIC18F2550-I/SP, Microchip Microchip PIC18F 系列 8 bit PIC MCU, 48MHz, 32 kB、256 B ROM 闪存, 2048 B RAM, 1xUSB, 28针 SPDIP封装 PIC18F 32K SPDIP28 85°C |
| Category |
Business
| MOQ | 1 | Unit Pack | 15 |
| Other Names | PIC18F2550ISP | Product Category | 8-bit Microcontrollers - MCU |
| Standard Package | Rail / Tube | Factory Pack Quantity | 15 |
| Standard Package Name | PDIP | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | :18F2550 | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | Approval Agency | No |
Electrical
| Input | 23 | Speed | 48 MHz |
| Timer | 1 x 8 bit, 3 x 16 bit | Memory | 32KBytes |
| RAM Size | 2 KB | Core Size | 8-Bit |
| Core Type | PIC | Frequency | 48 MHz |
| Interface | I2C/SPI/USART/USB | Clock Rate | 48 MHz |
| Comparator | 2 | Resolution | 10bit |
| EEPROM Size | 256Byte | Memory Size | 2048 B |
| Memory Type | FLASH | Display Type | no |
| Number of I/O | 24 | Voltage Range | 2-5.5V |
| Number of Bits | 10 | Voltage Rating | 4.2 → 5.5 V |
| Watchdog Timer | 1 | Clock Frequency | :48MHz |
| Data Converters | A/D 10x10b | Frequency - Max | 40MHz |
| Number of DAC's | 2 | Oscillator Type | Internal |
| Interrupt Output | :19 | Voltage - Supply | 5 V |
| Digital I/O Lines | 24pins | Resolution (Bits) | 10Bit |
| Serial Interfaces | 1 | Number of Channels | 10 |
| Analog Input:Output | 2 | Non-Volatile Memory | 256Bytes |
| Program Memory Size | 32 KB | Program Memory Type | Flash |
| Number of ADCs / DACs | 10 | Voltage - Input (Min) | 2V |
| Number of 8-bit Timers | 1 | Voltage - Supply (Min) | 4.2 V |
| Frequency (Center/Band) | 16 bit, 8 bit | Power Dissipation (Max) | 1000 mW |
| Number of Bits per Element | 10 bit | Voltage - Supply (Vcc/Vdd) | 4.2 V ~ 5.5 V |
Mechanical
| Width | 0.295in | Height | 0.15in |
| Length | 1.4in | Weight | 0.0001 |
| Packaging | Tube | Lead Style | Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :28 | Package / Case | 28SPDIP |
| Package Cooled | SPDIP | Material Finish | :- |
| Length - Overall | 34.67 | Package Quantity | SPDIP |
| Size / Dimension | 1.4 x 0.295 x 0.15in | Number of Positions | 28 |
| Shell Size - Insert | 3.3 | Supplier Device Package | 28-SPDIP |
| Number of Cores/Bus Width | 8 Bit | Pulse Width Distortion (Max) | 2(10 bit) (CCP) |
Product Info
| SPI | 1 | Spg | 45 |
| USB | 1 | Type | PIC microcontroller |
| Series | PIC18 | Protocol | 1 |
| Matchcode | PIC18F2550-I/SP | CAN Number | 0 |
| Flash Size | :32KB | SPI Number | 1 |
| On-Chip RAM | 10-chx10-bit | Peripherals | Brown-out Detect/Reset, HLVD, POR, PWM, WDT |
| Architecture | RISC | Connectivity | I²C, SPI, UART/USART, USB |
| Programmable | Yes | Core Processor | PIC |
| Built in Switch | 32kHz, 8MHz | Number of Units | 1 |
| Number of Timers | 4 | Controller Series | :PIC18 |
| Standard Leadtime | 14 weeks | RF Family/Standard | PIC18 |
| DigiKey Programmable | Yes | Printed Circuit Board | 28 |
| Microcontroller Features | :SPI, I²C, 2 xCCP, EUSART, 2 x Comparators, 1 x 8-bit timer, 3 x 16-bit timer | Number of A/D Converters | :10 |
Environmental
| Temperature Range | :Industrial | Temperature - Test | -40°C |
| Operating Temperature | -40 to 85 °C | Operating Temperature - Junction | 85C |
Documents & Media
Similar Parts
SW500008
microchip
Hi-Tech C Compiler For Pic18 MCUs Development Software PICC-18STD Compiler HI-TECH C Compiler for PIC18 MCUs - PICC-18 STD HI-TECH C COMPILER, FOR PIC18, STD Compilers,HI-TECHCCompilerforPIC18MCUs-Standard
DV164131
microchip
PICKIT 3 InCircuit Debugger/Programmer Uses InCircuit Debugging Logic Incorporated In-Circuit Debuggers PICkit 3 Debug Exprs PICkit 3 Debug Express KIT STARTER PICKIT 3 DV164131, Development Kit, 16 bit, PIC DEBUG EXPRESS, PICKIT 3, PIC, DSPIC PICKit3Debugger/Programmer Programmer: microcontrollers; USB; ICSP, USB B mini PICkit 3 Debug Express PC hosted mode, DV164131, Microchip Microchip 16 位 MCU 微控制器开发套件
DV007004
microchip
Production Programmer/Development Kit PRODUCTION PROGRAMMER/DEVELOPMENT Programmers - Processor Based MPLAB PM3 Universal Device Programmer MPLAB PM3 UNIVERSAL DEVICE PROGRAMMER Universal Device Programmer PROGRAMMER UNIVERSAL PM3 DV007004, Development Kit, 8 bit, PIC MPLAB PM3 Universal Device Programmer Socket Module Adapter MPLAB PM3 PROGRAMMER, PIC, DSPIC30F PRODUCTIONPROGRAMMER/DEVELOPMENTKITWITHBUILT-INICSP.PROGRAMSPICMICRO&DS PM3 Universal Device Programmer PC hosted mode / Stand-alone mode, DV007004, Microchip Microchip 处理器和微控制器开发套件
DV164035
microchip
MPLAB ICD 3 In Circuit Debugger In-Circuit Debuggers MPLAB ICD3 MPLAB ICD3 In-Circuit Debugger MPLAB ICD3 IN-CIRC DEBUGGER DV164035, Programmer, 16 bit, PIC DEBUGGER, MPLAB ICD 3, DSPIC FOR PIC MPLAB ICD 3 In-Circuit Debugger Kit MPLABICD3IncircuitDebugger Programmer: microcontrollers; USB; No.of diodes:3 In-Circuit Debugger/Programmer ICD3 PC hosted mode, DV164035, Microchip Microchip MPLAB ICD 3 在线调试器 处理器和微控制器开发套件
DVA18XP280
microchip
Evaluation Board For Device Adapter PIC12C50X, CE51X PDIP And SOIC 8 LD Device Adapter Sockets & Adapters Processor MOD DEVICE ADAPTER 18F2220 PDIP 28LD PIC18F2220,2320PDIP28LDDEVICEADAPTER
TC54VC4302ECB713
microchip
Volt Supervisor Detect 1.1V to 6V 3-Pin SOT-23A T/R 4.3V Voltage Detector 2% Tol. IC VOLT DETECTOR 4.3V SOT23A Voltage supervisor,4.3V,PP,Low,SOT23A Supervisory Circuits 4.2V 2% IC, SUPERVISOR, SMD 电压监控器, 4.21 至 4.39 V监控电压, 多种输出驱动, 3针 SOT-23A封装
AC164301
microchip
18L/28L/40L DIP SOCKET MODULE FOR MPLAB PM3 Sockets & Adapters 18L/28L/40L Sckt Mod for MPLAB PM3 MPLAB PM3 UNIVERSAL DEVICE PROGRAMMER SOCKET Module for MPLAB PM3 18L MODULE SKT FOR PM3 18/28/40DIP AC164301, Accessory, PIC, Socket Module MPLAB PM3 Universal Device Programmer Socket Module Adapter 18L/28L/40LDIPSOCKETMODULEFORMPLABPM3 Microchip 通用设备编程器 处理器和微控制器开发套件
DM163025
microchip
Demonstration And Evaluation Board For The PIC18F4550 Family Of Flash Microcontrollers Development Boards & Kits - PIC / DSPIC USB DEMO BOARD PICDEM FS USB Demoboa PIC DEM FULL SPEED USB DEMO BRD PICDEM, PIC18F4550, USB, DEMO BOARD
DM180021
microchip
MPLAB Starter Kit For PIC18F MCU Development Boards & Kits - PIC / DSPIC PIC18 Starter Kit MPLAB Starter Kit for PIC18F KIT STARTER MPLAB FOR PIC18F MCU DM180021, Development Kit, 8 bit, PIC PIC18F, CAP TOUCH PAD, STARTER KIT MPLABStarterKitforPIC18FMCU Development kit: Microchip; PIC18F46J50; OLED 128x64 MPLAB Starter Kit for PIC18F PC hosted mode, DM180021, Microchip
%2CTO-226_straightlead.jpg&w=3840&q=75)
TC54VN4302EZB
microchip
Volt Supervisor Detect 1.1V to 6V 3-Pin TO-92 Bag 4.3V Voltage Detector 2% Tol. IC VOLT DET N-CH OD 4.3V TO92-3 TC54VN4302EZB, Processor Supervisor 1.1 to 6V 3-Pin TO-92 Supervisory Circuits 4.3V, 2% VOLT DETECTOR, 54VN4302, TO-92-3 TC54VN4302EZBI.C. 处理器监控器, 1.1 至 6 V监控电压, 3针 TO-92封装 DETECTOR 4,3V 1µA 2% SOT89 SMD
DM163022-1
microchip
Picdem 2 Plus Board Demonstrates The Capabilities Of Microchips 8-Bit Microcontrollers Development Boards & Kits - PIC / DSPIC PICDEM 2 Plus PICDEM 2 Plus BOARD DEMO PIC16F87X PIC18FXX2 PICDEM 2 Plus w/ ICD interface PIC16F, PICDEM 2 PLUS, DEMO BOARD Development kit: Microchip; PIC16; Connector type: RJ12 PICDEM 2 Plus PC hosted mode PIC16F1937-I/P 9 V, DM163022-1, Microchip Microchip 8 位 MCU 开发套件

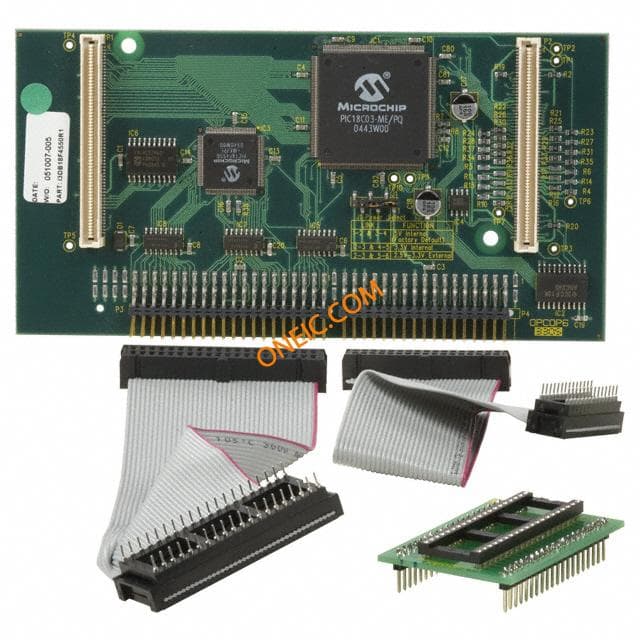

I3-DB18F4550
