PIC18F24J11-I/SP
| Manufacturer | |
| Description | MCU 8-bit PIC18 PIC RISC 16KB Flash 2.5V/3.3V 28-Pin SPDIP Tube 8-bit Microcontrollers - MCU 16KB Flash 4KBRAM 12MIPS nanoWatt 16KB Flash, 4KB RAM, 12 MIPS, nanowa IC MCU 8BIT 16KB FLASH 28SDIP PIC18F24J11-I/SP, 8 bit Microcontroller PIC 48MHz 16kb Flash, 3776B RAM, I2C SPI 28-Pin SPDIP MCU, 8BIT, 16K FLASH, NANOWATT, 28SPDIP 28-Pin,16KBFlash,4KBRAM,12MIPS,nanoWatt PIC microcontroller; SRAM:3800B; 48MHz; DIP28; 2÷3.6V Microchip PIC18F 系列 8 bit PIC MCU, 48MHz, 16 kB ROM 闪存, 3776 B RAM, 28针 SPDIP封装 |
| Category |
Business
| MOQ | 329 | Unit Pack | 15 |
| Other Names | PIC18F24J11ISP | Product Category | 8-bit Microcontrollers - MCU |
| Standard Package | Rail / Tube | Factory Pack Quantity | 15 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423190 | ||
Electrical
| Input | 16 | Speed | 48 MHz |
| Timer | 2 x 8 bit, 3 x 16 bit | Memory | 16KBytes |
| RAM Size | 3776 byte | Core Size | 8-Bit |
| Core Type | PIC | Interface | I2C/SPI/USART |
| Clock Rate | 48 MHz | Comparator | 2 |
| Resolution | 16bit | Memory Size | 3776 B |
| Memory Type | Flash | Number of I/O | 16 |
| Voltage Range | 2-3.6V | Number of Bits | 8 |
| Voltage Rating | 2.15 → 3.6 V | Watchdog Timer | 1 |
| Clock Frequency | :48MHz | Data Converters | A/D 10x10b |
| Frequency - Max | 48MHz | Number of DAC's | 2 |
| Oscillator Type | Internal | Voltage - Supply | 2.5|3.3 V |
| Resolution (Bits) | 10bit | Number of Channels | 10 |
| Analog Input:Output | 2 | Non-Volatile Memory | 0Bytes |
| Program Memory Size | 16 KB | Program Memory Type | Flash |
| Number of ADCs / DACs | 10 | Number of 8-bit Timers | 2 |
| Voltage - Supply (Min) | 2...3.6V | Frequency (Center/Band) | 16 bit, 8 bit |
| Number of Bits per Element | 10 bit | Voltage - Supply (Vcc/Vdd) | 2.15 V ~ 3.6 V |
Mechanical
| Width | 0.295in | Height | 0.15in |
| Length | 1.4in | Weight | 0.001333 |
| Packaging | Tube | Termination | :Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :28 | Package / Case | 28SPDIP |
| Package Cooled | SPDIP | Material Finish | :- |
| Package Quantity | 50 | Size / Dimension | 1.4 x 0.295 x 0.15in |
| Number of Positions | 28 | Supplier Device Package | 28-SPDIP |
| Number of Cores/Bus Width | 8 Bit | Pulse Width Distortion (Max) | 2(16 bit) (ECCP) |
Product Info
| Spg | 50 | USB | 0 |
| Type | PIC microcontroller | Series | PIC18 |
| Base Unit | :PIC18F | Flash Size | :16KB |
| On-Chip RAM | 10-chx10-bit | Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Architecture | RISC | Connectivity | I²C, SPI, UART/USART |
| Core Processor | PIC | Built in Switch | 32kHz, 8MHz |
| Number of Units | 1 | Number of Timers | 5 |
| Controller Series | :PIC18FxxJxx | RF Family/Standard | PIC18 |
| Number of A/D Converters | :10 | ||
Environmental
| Operating Temperature | -40 to 85 °C | ||
Documents & Media
Similar Parts
SW500008
microchip
Hi-Tech C Compiler For Pic18 MCUs Development Software PICC-18STD Compiler HI-TECH C Compiler for PIC18 MCUs - PICC-18 STD HI-TECH C COMPILER, FOR PIC18, STD Compilers,HI-TECHCCompilerforPIC18MCUs-Standard
AC164329
microchip
PM3 40P DIP SOCKET MODULE (18F Sockets & Adapters PM3 SOCKET MOD MODULE SKT FOR 40DIP 18F45J10
DV164035
microchip
MPLAB ICD 3 In Circuit Debugger In-Circuit Debuggers MPLAB ICD3 MPLAB ICD3 In-Circuit Debugger MPLAB ICD3 IN-CIRC DEBUGGER DV164035, Programmer, 16 bit, PIC DEBUGGER, MPLAB ICD 3, DSPIC FOR PIC MPLAB ICD 3 In-Circuit Debugger Kit MPLABICD3IncircuitDebugger Programmer: microcontrollers; USB; No.of diodes:3 In-Circuit Debugger/Programmer ICD3 PC hosted mode, DV164035, Microchip Microchip MPLAB ICD 3 在线调试器 处理器和微控制器开发套件
DM183032
microchip
PIC18 Low Cost DEMO Board Development Boards & Kits - PIC / DSPIC PIC 18 Explorer Board PICDEM PIC18 Explorer Board BOARD EXPLORER PICDEM PIC18 DM183032, Development Kit, 8 bit, PIC, PIC18F87J11 Processor PIM, PICDEM PIC18 Explorer Board PICDEM, PIC18, EXPLORER BOARD PICDEMPIC18EXPLORERBOARD Development kit: Microchip; PIC18F8722,PIC18F87J11 PICDEM PIC18 Explorer board PC hosted mode 9 V, DM183032, Microchip Microchip 8 位 MCU 微控制器开发套件
AC162067
microchip
MPLAB ICD Header Required To Debug PIC18F45J10 Device Sockets & Adapters ICD 2 40/28P DIP MPLAB ICD 40/28P DIP PIC18F45J10 HEADER INTRFC MPLAB ICD2 40/28P MPLAB ICD Header Required To Debug PIC18F45J10 Device Board
MA180023
microchip

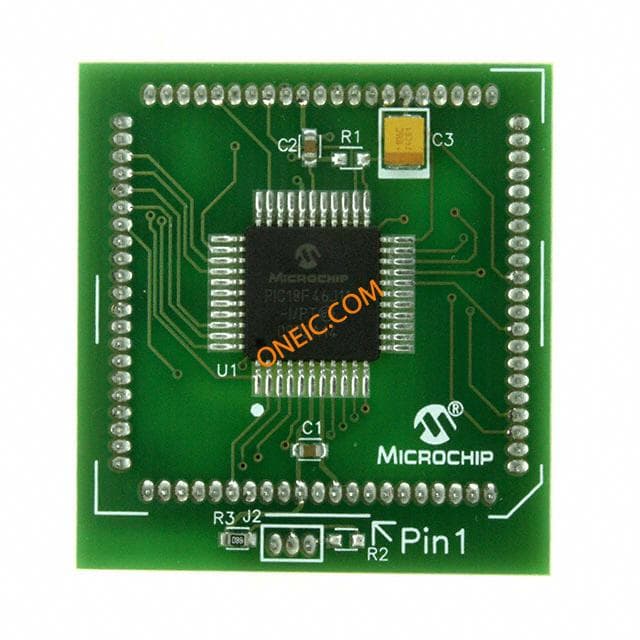

PIC18F46J11 Plug-In Module Daughter Cards & OEM Boards PIC18F46J11 PIM PIC18F46J11 PIM MODULE PLUG-IN PIC18F46J11 PIM MA180023, Module, 8 bit, PIC, Plug-in Module for the PIC18F46J11 MCU MODULE, PLUG-IN, FOR PIC18F46J11 PIC18F46J11PIMMOD. PIC18F46J11 PIM for HPC EXPLORE
