PIC18F242-I/SO
| Manufacturer | |
| Description | MCU 8-bit PIC18 PIC RISC 16KB Flash 5V 28-Pin SOIC W Tube 8 bit MCU SOIC28 IC MCU 8BIT 16KB FLASH 28SOIC PIC18F242-I/SO, 8 bit Microcontroller PIC 40MHz 16kb Flash, 768B RAM, I2C SPI 28-Pin SOIC 8-bit Microcontrollers - MCU 16KB 768 RAM 23I/O 8BIT FLASH MCU, SMD, 18F242, SOIC28 Microcontroller;16KBFlash;768RAM;256EEPROM;25I/O;SOIC-28 PIC microcontroller; EEPROM:256B; SRAM:768B; 40MHz; SO28; 2÷5.5V Microchip PIC18F 系列 8 bit PIC MCU, 40MHz, 16 kB ROM 闪存, 768 B RAM, 28针 SOIC封装 PIC18F 16K SOIC28 85°C |
| Category |
Business
| MOQ | 1 | Unit Pack | 27 |
| Product Category | 8-bit Microcontrollers - MCU | Standard Package | Rail / Tube |
| Factory Pack Quantity | 27 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423190 | Part Status | :18F242 |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Input | 25 | Speed | 40 MHz |
| Timer | 2 x 16 bit, 2 x 8 bit | Memory | 16KBytes |
| RAM Size | 768 byte | Core Size | 8-Bit |
| Core Type | PIC | Interface | I2C/SPI/USART |
| Clock Rate | 40 MHz | Comparator | 2 |
| Resolution | 10bit | EEPROM Size | 256Byte |
| Memory Size | 16KByte | Memory Type | FLASH |
| Display Type | no | Number of I/O | 23 |
| Voltage Range | 2-5.5V | Number of Bits | :8 |
| Voltage Rating | 4.2 → 5.5 V | Watchdog Timer | 1 |
| Clock Frequency | :40MHz | Data Converters | A/D 5x10b |
| FPGA Core Cells | :10 | Frequency - Max | 40MHz |
| Number of DAC's | 2 | Oscillator Type | External |
| Voltage - Supply | 5 V | Digital I/O Lines | 23pins |
| Resolution (Bits) | 10Bit | Number of Channels | 1 |
| Analog Input:Output | 5-Channel,12-Bit | Non-Volatile Memory | 256Bytes |
| Program Memory Size | 16 KB | Program Memory Type | Flash |
| Number of ADCs / DACs | 5channels | Number of 8-bit Timers | 1 |
| Voltage - Supply (Min) | 2...5.5V | Frequency (Center/Band) | 16 bit, 8 bit |
| Power Dissipation (Max) | 1000 mW | Number of Bits per Element | 10 bit |
| Voltage - Supply (Vcc/Vdd) | 4.2 V ~ 5.5 V | ||
Mechanical
| Width | 7.59mm | Height | 2.39mm |
| Length | 18.08mm | Weight | 0.000001 |
| Packaging | TUBE | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :28 |
| Package / Case | 28SOIC W | Package Cooled | SOIC |
| Material Finish | :MSL 1 - Unlimited | Package Quantity | 24 |
| Size / Dimension | 18.08 x 7.59 x 2.39mm | Number of Positions | 28 |
| Supplier Device Package | 28-SOIC | Number of Cores/Bus Width | 8 Bit |
| Pulse Width Distortion (Max) | 2(10 bit) (CCP) | ||
Product Info
| Spg | 24 | USB | No |
| Type | PIC microcontroller | Series | PIC18 |
| Matchcode | PIC18F242-I/SO | CAN Number | 0 |
| Flash Size | :16KB | SPI Number | 1 |
| On-Chip RAM | 5-chx10-bit | Peripherals | Brown-out Detect/Reset, LVD, POR, PWM, WDT |
| Architecture | RISC | Connectivity | I²C, SPI, UART/USART |
| Core Processor | PIC | Number of Units | 1 |
| Number of Timers | 4 | Controller Series | :PIC18 |
| Standard Leadtime | 14 weeks | RF Family/Standard | PIC18 |
| Microcontroller Features | :2 PWM, Watchdog , In-System Programming, 2 CCP | Number of A/D Converters | :8 |
Environmental
| Temperature Range | :Industrial | Temperature - Test | -40°C |
| Operating Temperature | -40 to 85 °C | ||
Documents & Media
Similar Parts
SW500008
microchip
Hi-Tech C Compiler For Pic18 MCUs Development Software PICC-18STD Compiler HI-TECH C Compiler for PIC18 MCUs - PICC-18 STD HI-TECH C COMPILER, FOR PIC18, STD Compilers,HI-TECHCCompilerforPIC18MCUs-Standard
XLT28SO-1
microchip
28 LD (300 MIL SOIC) SMALL OUT Sockets & Adapters 28 LD SMALL OUTLINE SOCKET TRANSITION 28SOIC 300MIL ADAPTERSOCKET,XLT28SO-1 Small Outline Transition Socket 28 LD (300 mil SOIC)
DM163022
microchip
Demonstration Board To Support Different PIC Microcontroller Devices Development Boards & Kits - PIC / DSPIC PICDEM 2 Plus PIC16C62/63/64/65/73/74 Demo-B BOARD DEMO PICDEM-2 PLUS PICDEM 2 PLUS, LCD, DEMO BOARD PICDEM2PlusDemoBoardforPIC16xxxandPIC18xxxDevices
DV164035
microchip
MPLAB ICD 3 In Circuit Debugger In-Circuit Debuggers MPLAB ICD3 MPLAB ICD3 In-Circuit Debugger MPLAB ICD3 IN-CIRC DEBUGGER DV164035, Programmer, 16 bit, PIC DEBUGGER, MPLAB ICD 3, DSPIC FOR PIC MPLAB ICD 3 In-Circuit Debugger Kit MPLABICD3IncircuitDebugger Programmer: microcontrollers; USB; No.of diodes:3 In-Circuit Debugger/Programmer ICD3 PC hosted mode, DV164035, Microchip Microchip MPLAB ICD 3 在线调试器 处理器和微控制器开发套件

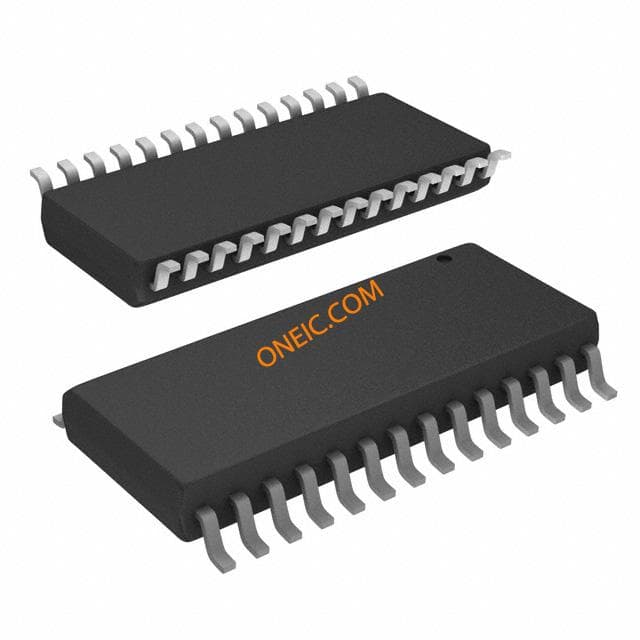

PIC18F2420-I/SO
