PIC18F2331-I/SP
| Manufacturer | |
| Description | MCU 8-bit PIC18 PIC RISC 8KB Flash 5V 28-Pin SPDIP Tube 8 KB Flash, 768 RAM, 22 I/O IC MCU 8BIT 8KB FLASH 28SDIP PIC18F2331-I/SP, 8 bit Microcontroller PIC 40MHz 256, 8192B Flash, 768B RAM, I2C SPI 28-Pin SPDIP 8-bit Microcontrollers - MCU 8KB 768 RAM 22 I/O IC, 8BIT FLASH MCU, 18F2331, SDIL28 MCU,8-Bit,CMOS,28-Pin,8KBFlash,768RAM,22I/O PIC microcontroller; EEPROM:256B; SRAM:768B; 40MHz; DIP28 Microchip PIC18F 系列 8 bit PIC MCU, 40MHz, 256 B，8192 B ROM 闪存, 768 B RAM, 28针 SPDIP封装 |
| Category |
Business
| MOQ | 1600 | Unit Pack | 15 |
| Other Names | PIC18F2331ISP | Product Category | 8-bit Microcontrollers - MCU |
| Standard Package | Rail / Tube | Factory Pack Quantity | 15 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423190 | Part Status | :18F2331 |
Electrical
| Input | 24 | Speed | 40 MHz |
| Timer | 1 x 8 bit, 3 x 16 bit | Memory | 8KBytes |
| RAM Size | 768 byte | Core Size | 8-Bit |
| Core Type | PIC | Interface | I2C/SPI/USART |
| Clock Rate | 40 MHz | Comparator | 0 |
| EEPROM Size | 256 x 8 | Memory Size | 768 B |
| Memory Type | :Flash | Number of I/O | 24 |
| Voltage Range | 2-5.5V | Number of Bits | :8 |
| Voltage Rating | 4.2 → 5.5 V | Watchdog Timer | 1 |
| Clock Frequency | :40MHz | Data Converters | A/D 5x10b |
| Frequency - Max | 40MHz | Number of DAC's | 2 |
| Oscillator Type | Internal | Voltage - Supply | 5 V |
| Resolution (Bits) | 10bit | Number of Channels | 0 |
| Analog Input:Output | 5-Channel,10-Bit | Non-Volatile Memory | 256Bytes |
| Program Memory Size | 8 KB | Program Memory Type | Flash |
| Number of ADCs / DACs | 5 | Number of 8-bit Timers | 1 |
| Voltage - Supply (Min) | 2.5...5.5V | Frequency (Center/Band) | 16 bit, 8 bit |
| Power Dissipation (Max) | 1000 mW | Number of Bits per Element | 10 bit |
| Voltage - Supply (Vcc/Vdd) | 4.2 V ~ 5.5 V | ||
Mechanical
| Width | 0.295in | Height | 0.15in |
| Length | 1.4in | Weight | 0.001333 |
| Packaging | Tube | Termination | :Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :28 | Package / Case | 28SPDIP |
| Package Cooled | SPDIP | Material Finish | :- |
| Package Quantity | 5 | Size / Dimension | 1.4 x 0.295 x 0.15in |
| Number of Positions | 28 | Supplier Device Package | 28-SPDIP |
| Number of Cores/Bus Width | 8 Bit | Pulse Width Distortion (Max) | 2(CCP) |
Product Info
| Spg | 5 | USB | 0 |
| Type | PIC microcontroller | Series | PIC18 |
| Flash Size | :8KB | On-Chip RAM | 5-chx10-bit |
| Peripherals | Brown-out Detect/Reset, LVD, Power Control PWM, QEI, POR, PWM, WDT | Architecture | RISC |
| Connectivity | I²C, SPI, UART/USART | Core Processor | PIC |
| Built in Switch | 32kHz, 8MHz | Number of Units | 1 |
| Number of Timers | 4 | Controller Series | :PIC18F2xxx |
| RF Family/Standard | PIC18 | Microcontroller Features | :EUSART, WDT, ADC, ICSP, Int Osc, Self Prog., Quad Encoder, ICD, Pwr Mgt. Modes, BOR, PVLD, CCP/ECCP |
| Number of A/D Converters | :5 | ||
Environmental
| Temperature Range | :Industrial | Operating Temperature | -40 to 85 °C |
Documents & Media
Similar Parts
SW500008
microchip
Hi-Tech C Compiler For Pic18 MCUs Development Software PICC-18STD Compiler HI-TECH C Compiler for PIC18 MCUs - PICC-18 STD HI-TECH C COMPILER, FOR PIC18, STD Compilers,HI-TECHCCompilerforPIC18MCUs-Standard
DM183021
microchip
PICDEM MC LV Development Board Development Boards & Kits - PIC / DSPIC PICDEM MC LV Dev Brd BOARD DEV PICDEM MC LV DM183021, Development Kit, 8 bit, PIC PICDEM, BLDC MOTOR CNTLR, DEV BOARD PICDEMMCLVDevelopmentBoard Development kit: Microchip; PIC18F2431,dsPIC30F3010; 24VDC Microchip 电动机控制开发板 8 位 MCU 微控制器开发套件 (PIC 内核)
DV164035
microchip
MPLAB ICD 3 In Circuit Debugger In-Circuit Debuggers MPLAB ICD3 MPLAB ICD3 In-Circuit Debugger MPLAB ICD3 IN-CIRC DEBUGGER DV164035, Programmer, 16 bit, PIC DEBUGGER, MPLAB ICD 3, DSPIC FOR PIC MPLAB ICD 3 In-Circuit Debugger Kit MPLABICD3IncircuitDebugger Programmer: microcontrollers; USB; No.of diodes:3 In-Circuit Debugger/Programmer ICD3 PC hosted mode, DV164035, Microchip Microchip MPLAB ICD 3 在线调试器 处理器和微控制器开发套件
DVA18XP280
microchip
Evaluation Board For Device Adapter PIC12C50X, CE51X PDIP And SOIC 8 LD Device Adapter Sockets & Adapters Processor MOD DEVICE ADAPTER 18F2220 PDIP 28LD PIC18F2220,2320PDIP28LDDEVICEADAPTER
DM163022-1
microchip
Picdem 2 Plus Board Demonstrates The Capabilities Of Microchips 8-Bit Microcontrollers Development Boards & Kits - PIC / DSPIC PICDEM 2 Plus PICDEM 2 Plus BOARD DEMO PIC16F87X PIC18FXX2 PICDEM 2 Plus w/ ICD interface PIC16F, PICDEM 2 PLUS, DEMO BOARD Development kit: Microchip; PIC16; Connector type: RJ12 PICDEM 2 Plus PC hosted mode PIC16F1937-I/P 9 V, DM163022-1, Microchip Microchip 8 位 MCU 开发套件

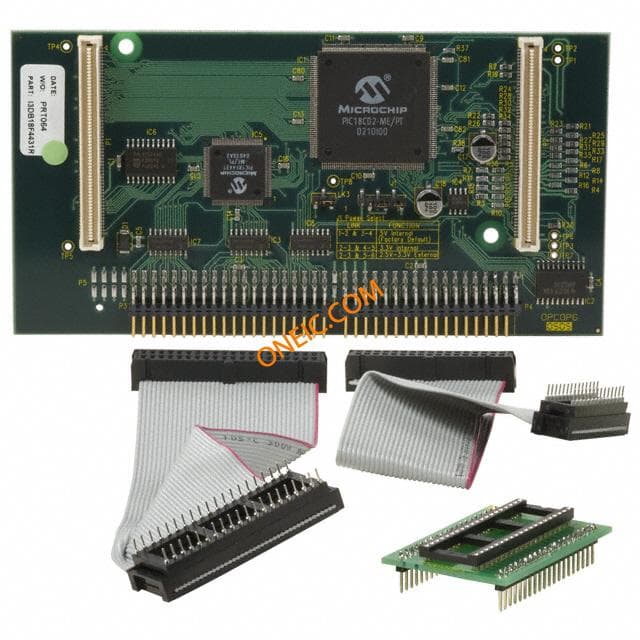

I3-DB18F4431
