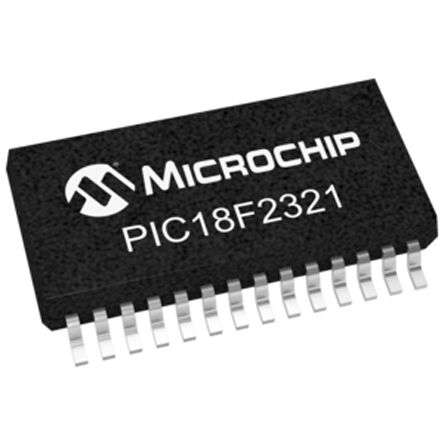

PIC18F2321-I/SS
| Manufacturer | |
| Description | MCU 8-bit PIC18 PIC RISC 8KB Flash 5V 28-Pin SSOP Tube 8-bit Microcontrollers - MCU 8KB Flash 512bytes 8 bit MCU SSOP28 IC MCU 8BIT 8KB FLASH 28SSOP PIC18F2321-I/SS, 8 bit Microcontroller PIC 40MHz 8kb Flash, 512B RAM, I2C SPI 28-Pin SSOP IC, MCU, 8-BIT, 8K FLASH, SSOP28 IC,PIC18F2321-I/SS Microchip PIC18F 系列 8 bit PIC MCU, 40MHz, 8 kB、256 B ROM 闪存, 512 B RAM, 28针 SSOP封装 PIC18F 8K SSOP28 85°C |
| Category |
Business
| MOQ | 1 | Unit Pack | 47 |
| Other Names | PIC18F2321ISS | Product Category | 8-bit Microcontrollers - MCU |
| Standard Package | Rail / Tube | Factory Pack Quantity | 47 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85411000 | Part Status | :18F2321 |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Speed | 40 MHz | Timer | 1 x 8 bit, 3 x 16 bit |
| Ethernet | 0 | RAM Size | 512 byte |
| Core Size | 8-Bit | Core Type | PIC |
| Interface | I2C/SPI/USART | Clock Rate | 40 MHz |
| EEPROM Size | 256Byte | Memory Size | 512 B |
| Memory Type | FLASH | Display Type | 0 |
| Number of I/O | 25 | Number of Bits | :8 |
| Voltage Rating | 4.2 → 5.5 V | Watchdog Timer | 1 |
| Clock Frequency | :40MHz | Data Converters | A/D 10x10b |
| Frequency - Max | 40MHz | Number of DAC's | 2 |
| Oscillator Type | Internal | Voltage - Supply | 5 V |
| Digital I/O Lines | 25pins | Resolution (Bits) | 10Bit |
| Number of Channels | 10 | Analog Input:Output | 2 |
| Program Memory Size | 8 KB | Program Memory Type | Flash |
| Number of ADCs / DACs | 10channels | Voltage - Input (Min) | 5.5V |
| Frequency (Center/Band) | 16 bit, 8 bit | Power Dissipation (Max) | 1000 mW |
| Number of Bits per Element | 10 bit | Voltage - Supply (Vcc/Vdd) | 4.2 V ~ 5.5 V |
Mechanical
| Width | 5.6mm | Height | 1.85mm |
| Length | 10.5mm | Weight | 0.000426 |
| Packaging | Tube | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :28 | Package / Case | 28SSOP |
| Package Cooled | SSOP | Material Finish | :MSL 1 - Unlimited |
| Size / Dimension | 10.5 x 5.6 x 1.85mm | Number of Positions | 28 |
| Supplier Device Package | 28-SSOP | Number of Cores/Bus Width | 8 Bit |
| Pulse Width Distortion (Max) | 2(CCP) | ||
Product Info
| USB | 0 | Series | PIC18 |
| Base Unit | :PIC18F | Matchcode | PIC18F2321-I/SS |
| CAN Number | 0 | Flash Size | :8KB |
| SPI Number | 1 | On-Chip RAM | 10-chx10-bit |
| Peripherals | Brown-out Detect/Reset, HLVD, POR, PWM, WDT | Architecture | RISC |
| Connectivity | I²C, SPI, UART/USART | Core Processor | PIC |
| Number of Timers | 4 | Controller Series | :PIC18F2xxx |
| Standard Leadtime | 24 weeks | RF Family/Standard | PIC18 |
| Number of A/D Converters | :10 | ||
Environmental
| Temperature Range | :Industrial | Temperature - Test | -40°C |
| Operating Temperature | -40 to 85 °C | ||
