PIC16LF1947-E/MR
| Manufacturer | |
| Description | MCU 8-bit PIC16 PIC RISC 28KB Flash 2.5V/3.3V 64-Pin QFN EP Tube 28KB Flash, 1KB RAM, 256B EEPROM, LC IC MCU 8BIT 28KB FLASH 64QFN 8-bit Microcontrollers - MCU 28KB 1KB RAM 256B EEPROM LCD 28KBFlash,1KBRAM,256BEEPROM,LCD,nanoWattXLP,QFN-649X9X0.9mmTUBE |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 320 | Product | MCU |
| Tradename | PIC | Unit Pack | 40 |
| Standard Package | Rail / Tube | Factory Pack Quantity | 40 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Input | 54 | Speed | 32 MHz |
| Timer | 4-8-bit,1-16-bit | Memory | 28KBytes |
| RAM Size | 1 KB | Core Size | 8-Bit |
| Core Type | PIC | Interface | I2C/SPI/USART |
| Clock Rate | 32 MHz | Comparator | 3 |
| EEPROM Size | 256 x 8 | Memory Size | 1 KB |
| Memory Type | Flash | Number of I/O | 54 |
| Voltage Range | 1.8-5.5V | Number of Bits | 8 |
| Watchdog Timer | 1 | Clock Frequency | 8MIPS |
| Data Converters | A/D 17x10b | Oscillator Type | Internal |
| Voltage - Supply | 2.5|3.3 V | Resolution (Bits) | 10 bit |
| Number of Channels | 17 | Analog Input:Output | 3 |
| Non-Volatile Memory | 1KBytes | Program Memory Size | 28 KB |
| Program Memory Type | Flash | Number of ADCs / DACs | 17 |
| Power Dissipation (Max) | 800 mW | Number of Counter/Timers | 5 Timer |
| Number of Bits per Element | 10 bit | Voltage - Supply (Vcc/Vdd) | 1.8 V ~ 3.6 V |
Mechanical
| Height | 0.88 mm | Length | 9 mm |
| Packaging | Tube | Mounting Style | SMD/SMT |
| Package / Case | 64QFN EP | Supplier Device Package | 64-QFN (9x9) |
| Number of Cores/Bus Width | 8 Bit | ||
Product Info
| Series | PIC16 | Features | LCD Controller |
| On-Chip RAM | 17-chx10-bit | Peripherals | Brown-out Detect/Reset, LCD, POR, PWM, WDT |
| Connectivity | I²C, LIN, SPI, UART/USART | Manufacturer | Microchip Technology |
| Core Processor | PIC | Number of Timers | 5 |
| Number of Segments | 184 | RF Family/Standard | PIC16 |
| Number of Inputs and Type | 54 I/O | ||
Environmental
| Operating Temperature | -40 to 125 °C | ||
Documents & Media
PDF Document
Online Document
Online Document
PDF Document
Similar Parts
DM240313
microchip
XLP 8-Bit Development Board Development Boards & Kits - PIC / DSPIC XLP 8-BIT Dev Board BOARD DEMO 8BIT XLP DM240313, Development Kit, 8 bit, PIC, Development Board, Power Measurement Cable, USB Cable PIC18F87K22, XLP, 8BIT, DEV BOARD Development kit: Microchip; PIC16LF1947,PIC18F87K22 Microchip 8 位 MCU 处理器和微控制器开发套件
$707.1320
Details

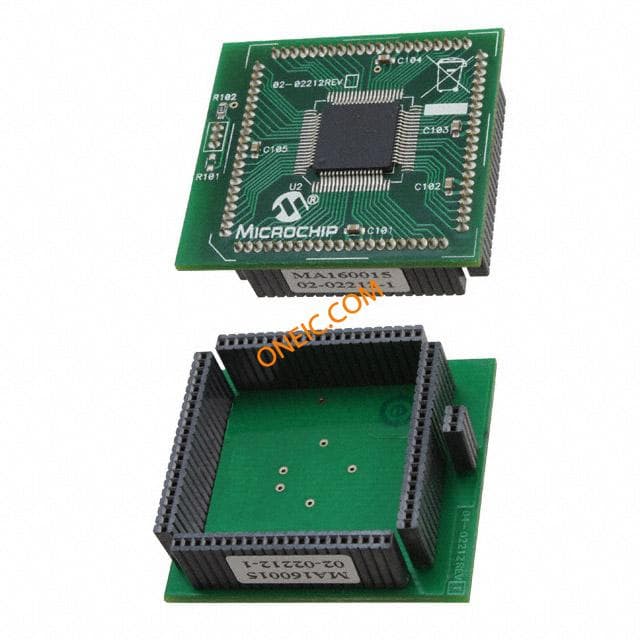

MA160015
microchip
PIC16LF1947 PIM MODULE PLUG-IN PIC16LF1947 Daughter Cards & OEM Boards PIC16LF1947 PIM PIM, FOR PIC16LF1947
$136.0000
Details

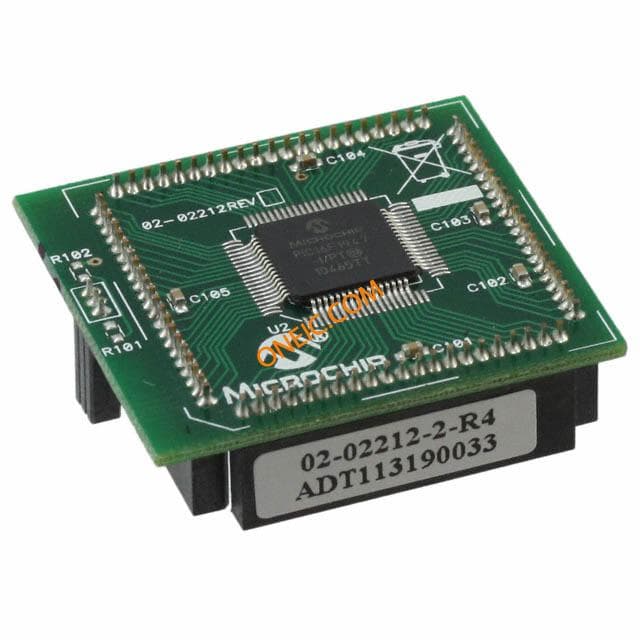

MA160016
