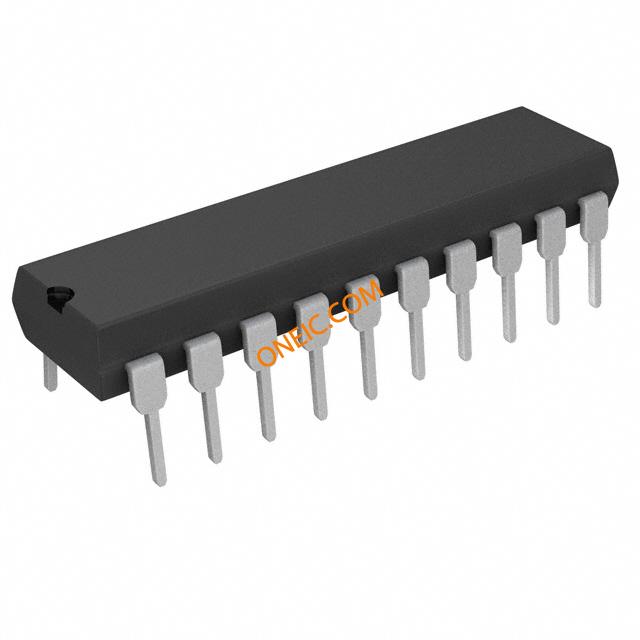

PIC16LF1829-I/P
| Manufacturer | |
| Description | MCU 8-bit PIC16 PIC RISC 14KB Flash 2.5V/3.3V 20-Pin PDIP 14 KB Flash, 1K bytes RAM, 32 MHz In IC MCU 8BIT 14KB FLASH 20DIP 8-bit Microcontrollers - MCU 14KB FL 1KBRAM 32MHz 12I/0 Enhanced XLP IC, MCU, 8BIT, 14K FLASH, 20PDIP |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 456 | Unit Pack | 22 |
| Other Names | PIC16LF1829IP | Standard Package | Rail / Tube |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423990 | ||
Electrical
| Speed | 32 MHz | RAM Size | 1 KB |
| Core Size | 8-Bit | Core Type | PIC |
| Interface | I2C/SPI/USART | Clock Rate | 32 MHz |
| EEPROM Size | 256 x 8 | Memory Size | 1 KB |
| Number of I/O | 17 | Watchdog Timer | 1 |
| Clock Frequency | :32MHz | Data Converters | A/D 12x10b |
| Number of DAC's | :4 | Oscillator Type | Internal |
| Voltage - Supply | 2.5|3.3 V | Number of Channels | 12 |
| Analog Input:Output | 2 | Program Memory Size | 14 KB |
| Program Memory Type | Flash | Power Dissipation (Max) | 800 mW |
| Number of Bits per Element | 10 bit | Voltage - Supply (Vcc/Vdd) | 1.8 V ~ 3.6 V |
Mechanical
| Weight | 0.2273 | Packaging | Tube |
| Mounting Style | Through Hole | Number of Pins | :20 |
| Package / Case | 20PDIP | Material Finish | :- |
| Supplier Device Package | 20-PDIP | Number of Cores/Bus Width | 8 Bit |
Product Info
| Series | PIC16 | On-Chip RAM | 12-chx10-bit |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | Connectivity | I²C, LIN, SPI, UART/USART |
| Core Processor | PIC | Number of Timers | 5 |
| Controller Series | :PIC16LF182x | RF Family/Standard | PIC16 |
Environmental
| Operating Temperature | -40 to 85 °C | ||
Documents & Media
PDF Document
Online Document
PDF Document
PDF Document
Online Document
Online Document
Online Document
Online Document
