PIC16F84A-04I/SO
| Manufacturer | |
| Description | MCU 8-bit PIC16 PIC RISC 1.75KB Flash 5V 18-Pin SOIC W Tube 8-bit Microcontrollers - MCU 1.75KB 68 RAM 13 I/O 4MHz Ind Temp SOIC18 8 bit MCU SOIC18 IC MCU 8BIT 1.75KB FLASH 18SOIC 8BIT FLASH MCU, SMD, 16F84, SOIC18 Microchip PIC16F 系列 8 bit PIC MCU, 4MHz, 1024 x 14 字，64 x 14 字 ROM 闪存, 68 B RAM, 18针 SOIC封装 PIC16F 1,75K SOIC18 85°C |
| Category |
Business
| MOQ | 42 | Unit Pack | 42 |
| Other Names | PIC16F84A04ISO | Product Category | 8-bit Microcontrollers - MCU |
| Standard Package | Rail / Tube | Factory Pack Quantity | 42 |
| Standard Package Name | SOIC W | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | :16F84 | Leadfree Defin | RoHS-conform |
| Approval Agency | No | ||
Electrical
| Speed | 4 MHz | RAM Size | 68 byte |
| Core Size | 8-Bit | Core Type | PIC |
| Interface | RS-232 | Clock Rate | 20 MHz |
| EEPROM Size | 64 x 8 | Memory Size | 68 B |
| Memory Type | FLASH | Number of I/O | 13 |
| Number of Bits | :8 | Voltage Rating | 4 |
| Watchdog Timer | 1 | Clock Frequency | :4MHz |
| Oscillator Type | External | Voltage - Supply | 5 V |
| Program Memory Size | 1.75 KB | Program Memory Type | Flash |
| Voltage - Supply (Min) | 5.5 | Power Dissipation (Max) | 800 mW |
| Voltage - Supply (Vcc/Vdd) | 4 V ~ 5.5 V | ||
Mechanical
| Width | 7.49 | Weight | 0.0004 |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :18 | Package / Case | 18SOIC W |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 11.53 |
| Package Quantity | SOIC W | Number of Positions | 18 |
| Shell Size - Insert | 2.31 | Supplier Device Package | 18-SOIC |
| Number of Cores/Bus Width | 8 Bit | ||
Product Info
| Series | PIC16 | Matchcode | PIC16F84A-04I/SO |
| Flash Size | :1.75KB | On-Chip RAM | No |
| Peripherals | POR, WDT | Architecture | RISC |
| Core Processor | PIC | Number of Timers | 1 |
| Controller Series | :PIC16F | Standard Leadtime | 14 weeks |
| RF Family/Standard | PIC16 | DigiKey Programmable | Yes |
| Printed Circuit Board | 18 | Microcontroller Features | :1 Kbytes FLASH |
Environmental
| Temperature Range | :Industrial | Temperature - Test | -40°C |
| Operating Temperature | -40 to 85 °C | ||
Documents & Media
Similar Parts
DV164035
microchip
MPLAB ICD 3 In Circuit Debugger In-Circuit Debuggers MPLAB ICD3 MPLAB ICD3 In-Circuit Debugger MPLAB ICD3 IN-CIRC DEBUGGER DV164035, Programmer, 16 bit, PIC DEBUGGER, MPLAB ICD 3, DSPIC FOR PIC MPLAB ICD 3 In-Circuit Debugger Kit MPLABICD3IncircuitDebugger Programmer: microcontrollers; USB; No.of diodes:3 In-Circuit Debugger/Programmer ICD3 PC hosted mode, DV164035, Microchip Microchip MPLAB ICD 3 在线调试器 处理器和微控制器开发套件
AC164010
microchip
PIC16C55X, 61, 62X, CE62X, F62 Sockets & Adapters Socket Module MODULE SKT PROMATEII DIP/SOIC
SW500005
microchip
Compiler, HI Tech C Compiler For PIC10/12/16 MCUs Development Software HI-TECH PICC STD Compiler Hi-Tech C Comp.for PIC10/PIC12/PIC16ROHS PICC STD Compilers,HI-TECHCCompilerforPIC10/12/16MCUs-Standard Hi-Tech C Compiler for PIC10/12/16 Microcontrollers
DM163022-1
microchip
Picdem 2 Plus Board Demonstrates The Capabilities Of Microchips 8-Bit Microcontrollers Development Boards & Kits - PIC / DSPIC PICDEM 2 Plus PICDEM 2 Plus BOARD DEMO PIC16F87X PIC18FXX2 PICDEM 2 Plus w/ ICD interface PIC16F, PICDEM 2 PLUS, DEMO BOARD Development kit: Microchip; PIC16; Connector type: RJ12 PICDEM 2 Plus PC hosted mode PIC16F1937-I/P 9 V, DM163022-1, Microchip Microchip 8 位 MCU 开发套件

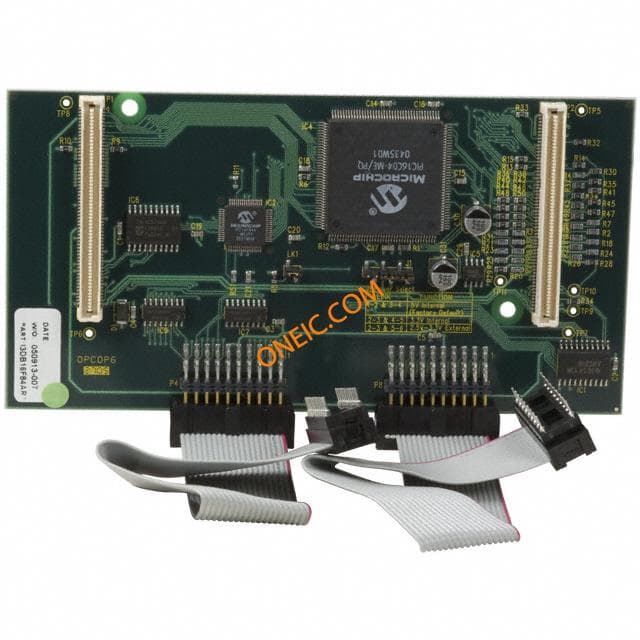

I3-DB16F84A
