PIC16C73B-20I/SS
| Manufacturer | |
| Description | MCU 8-bit PIC16 PIC RISC 7KB EPROM 5V 28-Pin SSOP Tube 7 KB OTP, 192 RAM, 22 I/O IC MCU 8BIT 7KB OTP 28SSOP 8-bit Microcontrollers - MCU 7KB 192 RAM 22 I/O 8BIT CMOS MCU, SMD, 16C73, SSOP28 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 135 | Unit Pack | 47 |
| Product Category | 8-bit Microcontrollers - MCU | Standard Package | Rail / Tube |
| Factory Pack Quantity | 47 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423190 | Part Status | :16C73 |
Electrical
| Speed | 20 MHz | Memory | :56KB |
| RAM Size | 192 byte | Core Size | 8-Bit |
| Core Type | PIC | Interface | I2C/SPI/USART |
| Clock Rate | 20 MHz | Memory Size | 192 B |
| Memory Type | :OTP | Number of I/O | 22 |
| Number of Bits | :8 | Watchdog Timer | 1 |
| Clock Frequency | :20MHz | Data Converters | A/D 5x8b |
| Number of DAC's | :2 | Oscillator Type | External |
| Voltage - Supply | 5 V | Number of Channels | 5 |
| Program Memory Size | 7 KB | Program Memory Type | EPROM |
| Power Dissipation (Max) | 1000 mW | Number of Bits per Element | 8 bit |
| Voltage - Supply (Vcc/Vdd) | 4 V ~ 5.5 V | ||
Mechanical
| Weight | 0.000001 | Packaging | Tube |
| Termination | :SMD | Mounting Style | SMD/SMT |
| Number of Pins | :28 | Package / Case | 28SSOP |
| Material Finish | :MSL 1 - Unlimited | Number of Positions | :16C73B |
| Supplier Device Package | 28-SSOP | Number of Cores/Bus Width | 8 Bit |
Product Info
| Series | PIC16 | On-Chip RAM | 5-chx8-bit |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | Connectivity | I²C, SPI, UART/USART |
| Core Processor | PIC | Number of Timers | 3 |
| Controller Series | :PIC16C7xx | RF Family/Standard | PIC16 |
| Microcontroller Features | :2 Capture/Compare PWM Modules, SSP with SPI/I2C Capability, USART | Number of A/D Converters | :5 |
Environmental
| Temperature Range | :Industrial | Operating Temperature | -40 to 85 °C |
Documents & Media
PDF Document
Similar Parts
AC164307
microchip
28L SSOP SOCKET MODULE FOR MPLAB PM3 Sockets & Adapters 28L Sckt Mod for MPLAB PM3 SSOP Socket Module For MPLAB PM3 MODULE SKT FOR PM3 28SSOP AC164307, Module, 8 bit, PIC, Socket Module for MPLAB PM3 SOCKET MODULE, MPLAB PM3 PROGRAMMER 28LSSOPSOCKETMODULEFORMPLABPM3 Microchip 8 位 MCU 处理器和微控制器开发套件
$2083.7920
Details

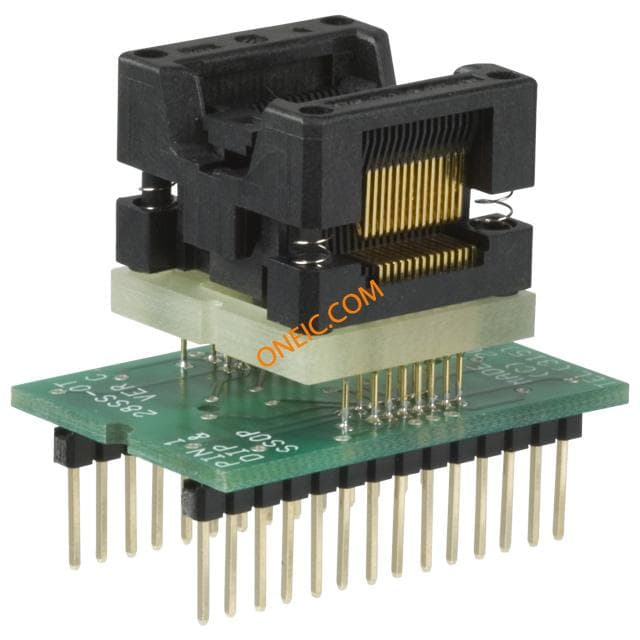

PA28SS-OT-6
