PIC16C56A-20/SO
| Manufacturer | |
| Description | MCU 8-bit PIC16 PIC RISC 1KB EPROM 5V 18-Pin SOIC W Tube 8 bit MCU SOIC18 IC MCU 8BIT 1.5KB OTP 18SOIC 8-bit Microcontrollers - MCU 1.5KB 25 RAM 12 I/O 20MHz SOIC18 Microcontroller 8 Bit SO-18, PIC16C56A-20/SO, Microchip PIC16C 1,5K SOIC18 70°C |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 42 | Unit Pack | 42 |
| Product Category | 8-bit Microcontrollers - MCU | Standard Package | Rail / Tube |
| Factory Pack Quantity | 42 | Standard Package Name | SOIC W |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Leadfree Defin | RoHS-conform | Approval Agency | No |
Electrical
| Speed | 20 MHz | RAM Size | 25 byte |
| Core Size | 8-Bit | Core Type | PIC |
| Clock Rate | 20 MHz | Memory Size | 25 B |
| Memory Type | OTP | Number of I/O | 12 |
| Voltage Rating | 4.5 | Watchdog Timer | 1 |
| Frequency - Max | 20MHz | Oscillator Type | External |
| Voltage - Supply | 5 V | Digital I/O Lines | 13pins |
| Number of Channels | 0 | Program Memory Size | 1 KB |
| Program Memory Type | EPROM | Voltage - Supply (Min) | 5.5 |
| Power Dissipation (Max) | 800 mW | Voltage - Supply (Vcc/Vdd) | 3 V ~ 5.5 V |
Mechanical
| Packaging | TUBE | Lead Style | Gull-wing |
| Mounting Style | SMD/SMT | Package / Case | 18SOIC W |
| Package Quantity | SOIC W | Number of Positions | 18 |
| Supplier Device Package | 18-SOIC | Number of Cores/Bus Width | 8 Bit |
Product Info
| USB | No | Series | PIC16 |
| Matchcode | PIC16C56A-20/SO | CAN Number | 0 |
| SPI Number | 0 | On-Chip RAM | No |
| Peripherals | POR, WDT | Architecture | RISC |
| Core Processor | PIC | Number of Timers | 1 |
| Standard Leadtime | 14 weeks | RF Family/Standard | PIC16 |
| DigiKey Programmable | Yes | ||
Environmental
| Temperature - Test | 0°C | Operating Temperature | 0 to 70 °C |
Documents & Media
PDF Document
PDF Document
Similar Parts
AC164002
microchip
PIC16C52, 54, HV540, 55, 56, 5 Sockets & Adapters Socket Module MODULE SKT PROMATEII 18/28SOIC
Details
PA18SO1-08H-6
Logical Systems Inc.
ADAPTER 18-SOIC TO 18-DIP
$404.6000
Details

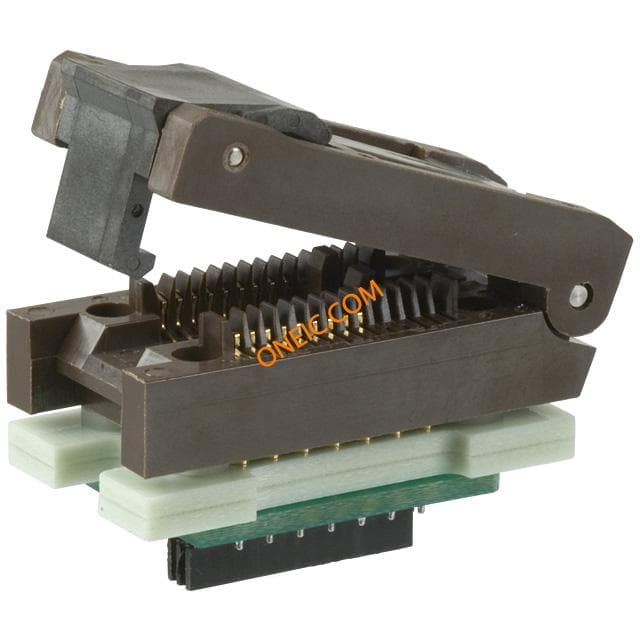

PA-SOD-2808-18
