PIC16C54-HS/SO
| Manufacturer | |
| Description | MCU 8-bit PIC16 PIC RISC 512byte EPROM 5V 18-Pin SOIC W Tube 0.75 KB OTP, 25 RAM, 12 I/O IC MCU 8BIT 768B OTP 18SOIC 8-bit Microcontrollers - MCU .75KB 25 RAM 12 I/O HSC SOIC18 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 268 | Product | MCU |
| Tradename | PIC | Unit Pack | 42 |
| Product Category | 8-bit Microcontrollers - MCU | Standard Package | Rail / Tube |
| Factory Pack Quantity | 42 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Speed | 20 MHz | RAM Size | 25 byte |
| Core Size | 8-Bit | Core Type | PIC |
| Clock Rate | 40 MHz | Memory Size | 25 B |
| Number of I/O | 12 | Watchdog Timer | 1 |
| Data Converters | EPROM | Oscillator Type | External |
| Voltage - Supply | 5 V | Resolution (Bits) | No ADC |
| Program Memory Size | 512 byte | Program Memory Type | EPROM |
| Power Dissipation (Max) | 800 mW | Number of Counter/Timers | 1 Timer |
| Voltage - Supply (Vcc/Vdd) | 4.5 V ~ 5.5 V | ||
Mechanical
| Width | 7.5 mm | Height | 2.05 mm |
| Length | 11.55 mm | Packaging | Tube |
| Mounting Style | SMD/SMT | Package / Case | 18SOIC W |
| Supplier Device Package | 18-SOIC | Number of Cores/Bus Width | 8 Bit |
Product Info
| Series | PIC16 | On-Chip RAM | No |
| Peripherals | POR, WDT | Manufacturer | Microchip Technology |
| Core Processor | PIC | Number of Timers | 1 |
| RF Family/Standard | PIC16 | Number of Inputs and Type | 12 I/O |
Environmental
| Operating Temperature | 0 to 70 °C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
AC164002
microchip
PIC16C52, 54, HV540, 55, 56, 5 Sockets & Adapters Socket Module MODULE SKT PROMATEII 18/28SOIC
Details
PA18SO1-08H-6
Logical Systems Inc.
ADAPTER 18-SOIC TO 18-DIP
$56.6440
Details

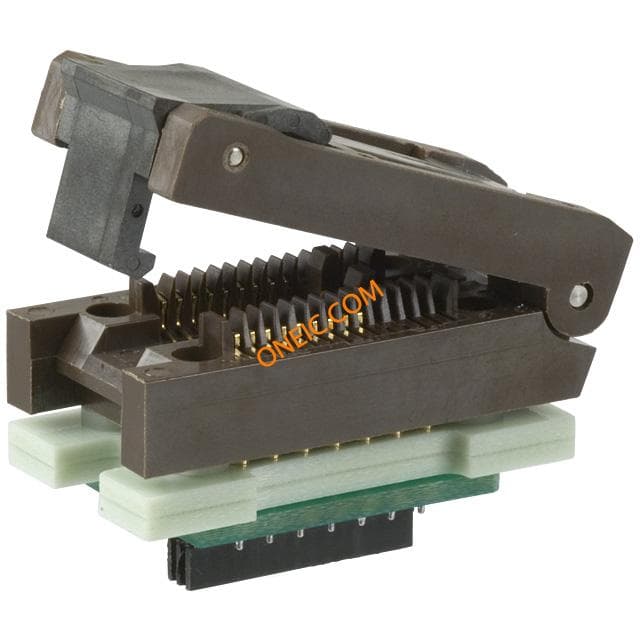

PA-SOD-2808-18
