PIC12C508-04/SM
| Manufacturer | |
| Description | MCU 8-Bit PIC12 PIC RISC 768Byte EPROM 3.3V/5V 8-Pin SOIJ Tube 0.75 KB OTP, 25 RAM, 6 I/O IC MCU 8BIT 768B OTP 8SOIJ 8-bit Microcontrollers - MCU .75KB 25 RAM 6 I/O 4 MHz SOIC8 MCU 8-bit PIC12 PIC RISC 768byte EPROM 3.3V/5V 8-Pin SOIJ Tube 8-Pin,0.75KBOTP,25RAM,6I/O,SOIC PIC microcontroller; SRAM:25B; 4MHz; SO8; 2.5÷5.5V |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 540 | Product | MCU |
| Tradename | PIC | Unit Pack | 90 |
| Other Names | PIC12C50804SM | Product Category | 8-bit Microcontrollers - MCU |
| Standard Package | Rail / Tube | Factory Pack Quantity | 90 |
Compliance
| RoHS | Lead free / RoHS Compliant | Rad Hardened | No |
Electrical
| Input | 5 | Speed | 4 MHz |
| Timer | 1-8-bit | Memory | 768Bytes |
| RAM Size | 25 byte | Core Size | 8-Bit |
| Core Type | PIC | Frequency | 4 MHz |
| Clock Rate | 4 MHz | Comparator | 0 |
| Memory Size | 25 B | Memory Type | OTP |
| Number of I/O | 5 | Voltage Range | 2.5-5.5V |
| Number of Bits | 8 | Watchdog Timer | 1 |
| Clock Frequency | 1MIPS | Data Converters | EEPROM |
| Frequency - Max | 4MHz | Oscillator Type | Internal |
| Voltage - Supply | 3.3|5 V | Resolution (Bits) | No ADC |
| Analog Input:Output | 0 | Non-Volatile Memory | 0Bytes |
| Program Memory Size | 768 byte | Program Memory Type | EPROM |
| Number of 8-bit Timers | 1 | Voltage - Supply (Min) | 2.5 V |
| Power Dissipation (Max) | 700 mW | Number of Counter/Timers | 1 Timer |
| Voltage - Supply (Vcc/Vdd) | 2.5 V ~ 5.5 V | ||
Mechanical
| Width | 5.38 mm | Height | 1.98 mm |
| Length | 5.33 mm | Weight | 1.19 g |
| Packaging | Tube | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 8SOIJ |
| Package Cooled | SOIJ | Package Quantity | 30 |
| Number of Positions | 8 | Supplier Device Package | 8-SOIJ |
| Number of Cores/Bus Width | 8 Bit | ||
Product Info
| Spg | 30 | Type | PIC microcontroller |
| Series | PIC12 | On-Chip RAM | No |
| Peripherals | POR, WDT | Architecture | RISC |
| Manufacturer | Microchip Technology | Programmable | Yes |
| Core Processor | PIC | Number of Units | 1 |
| Number of Timers | 1 | RF Family/Standard | PIC12 |
| Number of Inputs and Type | 5 I/O | ||
Environmental
| Operating Temperature | 0 to 70 °C | Operating Temperature - Junction | 70C |
Documents & Media
PDF Document
PDF Document
Similar Parts
XLT08SO-1
microchip
8 LD (150 & 208 MIL SOIC) SMAL Sockets & Adapters Small Outline Transition Socket SOCKET TRANSITION 8SOIC 150/208
$510.0000
Details
AC164312
microchip
16L (.208') SOIC SOCKET MODULE Sockets & Adapters 16L Sckt Mod for MPLAB PM3 "16L (.208"") SOIC Socket Module for M" MODULE SKT FOR PM3 16SOIC Socket Module SOIC for MPLAB PM3 16L (.208")
$2140.7413
Details
AC124001
microchip
PIC12C50X, 50XA, 51X, 67X, Sockets & Adapters PRO MATE II Sckt MOD MODULE SKT PROMATEII 8DIP/SOIC
Details
PA8SO1-2006-6
Logical Systems Inc.
ADAPTER 8-SOIC TO 8-DIP
$404.6000
Details

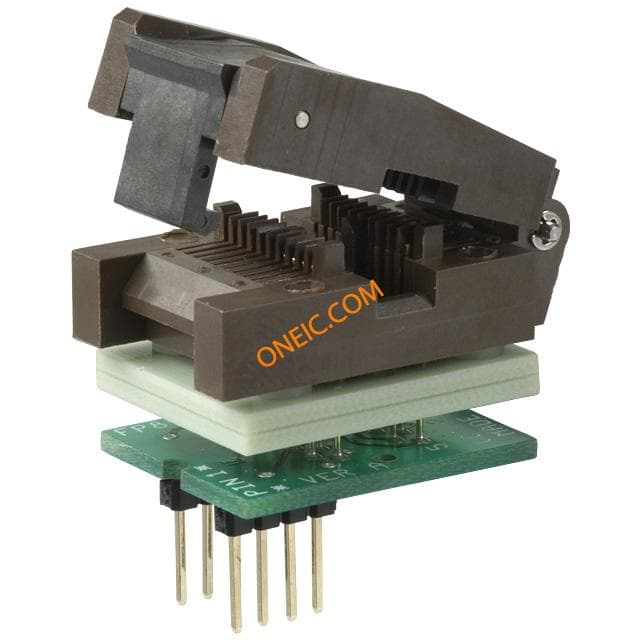

PA8SO1-2006-3
