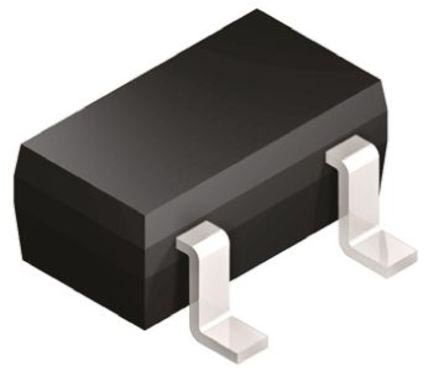

点击放大查看
MCP809T-450I/TT
| Manufacturer | |
| Description | Processor Supervisor 4.375V 3V/3.3V/5V 3-Pin SOT-23 T/R SUPERVISOR 4,38V LOW SOT23-3L IC SUPERVISOR 4.50V LOW SOT23 MCP809T-450I/TT, Processor Supervisor 3, 3.3, 5V Active Low, Push-Pull, 3-Pin SOT-23 Supervisory Circuits Push-Pull Low SUPERVISORY CIRCUIT, SOT-23-3, 809 SUPERVISORPUSH-PULLACTIVELOW,SOT-23-3-TR Supervisor Integrated Circuit; push-pull; 4,50 V; SOT23; 1÷5.5V Voltage Detector IC 4.5 V SOT-23-3, MCP809T-450I/TT, Microchip 处理器监控器, 3 V, 3.3 V, 5 V监控电压, 多种输出驱动, 3针 SOT-23封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 3000 | Unit Pack | 3000 |
| Other Names | MCP809T-450I/TTDKR | Product Category | Supervisory Circuits |
| Standard Package | Cut Tape | Factory Pack Quantity | 3000 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423190 | Automotive | NO |
| Part Status | :809 | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Reset | PUSH/PULL | Output | Active Low/Push-Pull |
| Output Type | Active Low, Push-Pull | Input Signal | No Chip Enable |
| Voltage Rating | 1 V | Watchdog Timer | No |
| Current - Output | 45µA | Current - Supply | 60 uA |
| Voltage - Supply | 3|3.3|5 V | Number of Elements | 1 |
| Voltage - Clamping | 4.25 V | Voltage - Threshold | 4.375V |
| Voltage - Input (Min) | 4.25 V | Voltage - Supply (Min) | 5.5 V |
| Current - Quiescent (Iq) | 45µA | Power - Minimum Receivable | No |
| Number of Voltages Monitored | 1 | Voltage - Input Offset (Max) | 3/3.3/5 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4,50 V | ||
Mechanical
| Width | 1.3mm | Height | 0.95mm |
| Length | 2.9mm | Weight | 0.000033 |
| Packaging | REEL | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :3 |
| Package / Case | 3SOT-23 | Package Cooled | SOT-23 |
| Length - Active | low | Material Finish | :MSL 1 - Unlimited |
| Package Quantity | 300 | Size / Dimension | 2.9 x 1.3 x 0.95mm |
| Number of Positions | 3 | Supplier Device Package | SOT-23-3 |
Product Info
| Spg | 300 | Mode | POS |
| Type | Simple Reset/Power-On Reset | Base Unit | :809 |
| Matchcode | MCP809T-450I/TT | Reset Timeout | 150 ms Minimum |
| Battery Series | No Backup | Number of Units | 1 |
| Reset Operation | push-pull | Standard Leadtime | 17 weeks |
| Number of Supervisors | 1 | Number of Logic Elements/Cells | :1 |
Environmental
| Reset Temperature | 4.38V | Operating Temperature | -40 to 85 °C |
| Operating Temperature - Junction | -40°C | ||
