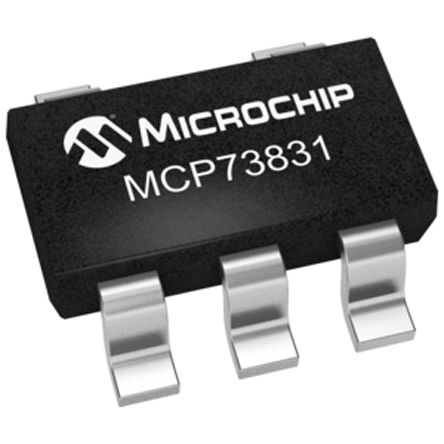

MCP73831T-2ACI/OT
| Manufacturer | |
| Description | Charge Controller Li-Ion/Li-Pol 15mA to 500mA 4.2V 5-Pin SOT-23 T/R DC-DC 6V 0.5A SOT-23 SMD IC CONTROLLR LI-ION 4.2V SOT23-5 Li-Ion/Polymer battery charger 4.2V TINY INTEGRATED LI-ION/LI-POLY CHARGE MGNT CONTROLLER; 4.2V VREG Battery Management Charge mgnt contr LI-ION/LI-POLY CHARGE CONTROLLER TINYINTEGRATEDLI-ION/LI-POLYCHARGEMGNTCONTROLLER,4.2VVREG Supervisor Integrated Circuit; 3.75÷6VDC; SOT23-5 Battery Charging IC 3.75...6 V SOT-23-5, MCP73831T-2ACI/OT, Microchip Microchip 锂离子、锂聚合物 电池充电控制器, 5针 SOT-23封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 3000 | Unit Pack | 3000 |
| Other Names | MCP73831T-2ACI/OTCT | Product Category | Battery Management |
| Standard Package | Cut Tape | Factory Pack Quantity | 3000 |
| Standard Package Name | SOT-23 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Automotive | NO | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Voltage Rating | 4.2 V | Number of Cells | :1 |
| Current - Output | 15 to 500 mA | Voltage - Supply | 3.75 V ~ 6 V |
| Current - Output 1 | 0.5A | Voltage - Output 1 | ±0.5% |
| Charge Current - Max | :500mA | Voltage - Input (Min) | 6V |
| Voltage - Output (Max) | :4.5V | Voltage - Supply (Min) | 3.75 V |
| On-State Resistance (Max) | 350mOhms | Voltage Regulation - Line | 0.75% |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Width | 1.8mm | Height | 1.3mm |
| Length | 3.1mm | Weight | 0.000033 |
| Packaging | Tape and Reel | Case Color | :SOT-23 |
| Lead Style | Gull-wing | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :5 | Package / Case | 5SOT-23 |
| Package Cooled | SOT-23 | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 3.1(Max) | Package Quantity | SOT-23 |
| Primary Material | Controllers | Size / Dimension | 3.1 x 1.8 x 1.3mm |
| Number of Positions | 5 | Shell Size - Insert | 1.3(Max) |
| Supplier Device Package | SOT-23-5 | ||
Product Info
| Spg | 500 | Type | Charge Controller |
| Function | Charge Management | Base Unit | :73831 |
| Matchcode | MCP73831T-2ACI/OT | Number of Units | 1 |
| Battery Chemistry | Li-Ion|Li-Pol | Standard Leadtime | 24 weeks |
| Printed Circuit Board | 5 | Number of Batteries Included | 1 x Li-Ion |
Environmental
| Operating Temperature | -40 to 85 °C | Maximum Temperature Limit | 85°C |
| Thermal Resistance @ Natural | 230°C/W | ||
