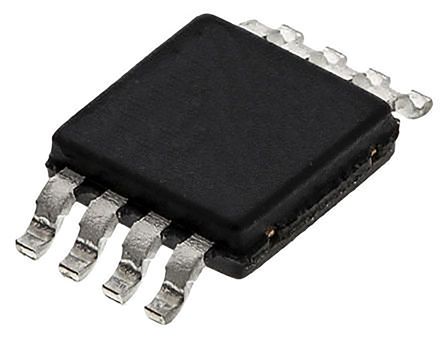

MCP6292-E/MS
| Manufacturer | |
| Description | OP Amp Dual GP R-R I/O 5.5V 8-Pin MSOP Tube IC OPAMP GP 10MHZ RRO 8MSOP MCP6292-E/MS, Dual Operational Amplifier 10MHz CMOS, R-R, 3, 5V, 8-Pin MSOP IC, OP AMP, 2.4V, DUAL, R-R, 8MSOP IC,OPAMP,MCP6292-E/MS Operational amplifier; 10MHz; 2.4÷5.5VDC; Channels:2; MSOP8 Microchip 双 运算放大器, 10MHz CMOS、轨至轨, 3 V 5 V, 8针 MSOP Operational Amplifiers - Op Amps Dual 10MHz |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | MCP6292EMS | Standard Package | Rail / Tube |
| Standard Package Name | MSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Rad Hardened | No | ||
Electrical
| Gain | 110 dB | PSRR | 70 dB |
| Slew Rate | 7@5.5V V/us | Output Type | CMOS|Rail to Rail |
| Power - Input | Single | Rise Time (Typ) | 7V/μs |
| Transistor Type | :Rail to Rail | CMRR, PSRR (Typ) | 70 dB |
| Current - Output | 1mA | Voltage - Supply | 2.4 V |
| Power Supply Type | Single | Number of Channels | 2 |
| Number of Elements | 2 | Current - Input Bias | 1pA |
| Number of ADCs / DACs | :2 | Voltage - Input (Min) | 3mV |
| Gain Bandwidth Product | 10 MHz | Rail-to-Rail Operation | Rail to Rail Input/Output |
| Current - Quiescent (Iq) | 1.3mA | Current - Input Bias (Max) | 0.000001@5.5V uA |
| Current - Output / Channel | 25mA | Input Offset Current (Max) | 0.000001(Typ)@5.5V |
| Input Noise Current Density | 0.003@5.5V pA/rtHz | Input Noise Voltage Density | 8.7@5.5V nV/rtHz |
| Voltage - Supply Span (Typ) | Not Required V | Frequency Bands (Low / High) | 10MHz |
| Voltage - Input Offset (Max) | 3@5.5V mV | Common Mode Transient Immunity (Min) | Extended Industrial |
| Voltage - Output Difference (Typ) @ Distance | 110 dB | ||
Mechanical
| Width | 3 | Weight | 0.0002 |
| Bandwidth | :10MHz | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Number of Pins | :8 | Package / Case | 8MSOP |
| Package Cooled | MSOP | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 3 | Package Quantity | MSOP |
| Number of Positions | 8 | Shell Size - Insert | 0.85 |
| Supplier Device Package | 8-MSOP | ||
Product Info
| Spg | 100 | Type | General Purpose Amplifier |
| Features | rail-to-rail | Shutdown | No |
| Base Unit | :6292 | Technology | CMOS |
| Manufacturer | General Purpose Amplifier | Amplifier Type | General Purpose |
| Number of Units | 1 | Number of Circuits | 2 |
| Printed Circuit Board | 8 | ||
Environmental
| Operating Temperature | -40 to 125 °C | ||
