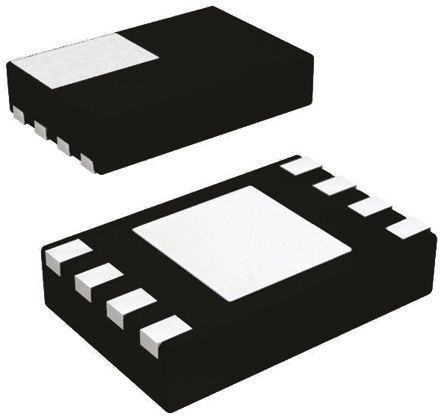

MCP6072T-E/MNY
| Manufacturer | |
| Description | OP Amp Dual GP R-R I/O 6V 8-Pin TDFN EP T/R Dual 1.8V 1.2MHz Op Amp, E temp IC OPAMP GP 1.2MHZ RRO 8TDFN Op Amp,dual,1.2MHz,0.5V/uS,RRIO,TDFN8 Microchip 双 精确 运算放大器, 1.2MHz 轨至轨, 1.8 → 6 V, 8针 TDFN Precision Amplifiers Dual 1.8V 1MHz Op Amp E temp 2xOP 1.2MHz 0.5V/µs TDFN8 SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 3300 | Product | Precision Amplifiers |
| Unit Pack | 3300 | Other Names | MCP6072T-E/MNYCT |
| Standard Package | Tape & Reel | Factory Pack Quantity | 3300 |
Compliance
| RoHS | Lead free / RoHS Compliant | Automotive | NO |
| Rad Hardened | No | Leadfree Defin | RoHS-conform |
Electrical
| Gain | 115 dB | PSRR | 70 dB |
| Noise | 19 nV/rtHz | Channels | 2 |
| Frequency | 19nV/√Hz | Slew Rate | 0.5@6V V/us |
| Output Type | Rail-to-Rail | Offset Drift | 1.5 µV/°C |
| Power - Input | Single | Conversion Type | 0.5V/µs |
| Input Impedance | 0.0006 pA/sqrt Hz | CMRR, PSRR (Typ) | 72 dB |
| Current - Output | 110µA | Current - Supply | 110 uA |
| Voltage - Supply | 1.8 V | Number of Channels | 2 |
| Number of Elements | 2 | Current - Input Bias | 1pA |
| Typical Voltage Gain | 115 dB | Voltage - Input (Min) | 150µV |
| Gain Bandwidth Product | 1.2 MHz | Rail-to-Rail Operation | Rail to Rail Input/Output |
| Current - Input Bias (Max) | 0.0001@6V uA | Current - Output / Channel | 28mA |
| Input Noise Current Density | 0.0006@6V pA/rtHz | Input Noise Voltage Density | 19@6V nV/rtHz |
| Voltage - Supply Span (Typ) | Not Required V | Current Rating (Per Contact) | 110 µA |
| Resistor - Emitter Base (R2) | Yes | Voltage - Input Offset (Max) | 0.15@6V mV |
| Voltage - Output Difference (Typ) @ Distance | 115 dB | ||
Mechanical
| Width | 3mm | Height | 0.75mm |
| Length | 2mm | Footprint | 6 mm² |
| Packaging | Tape & Reel (TR) | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 8 |
| Package / Case | 8TDFN EP | Package Cooled | TDFN EP |
| Top Termination | 125 °C | Package Quantity | TDFN |
| Size / Dimension | 2 x 3 x 0.75mm | Number of Positions | 8 |
| Minimum Working Height | -40 °C | Supplier Device Package | 8-TDFN (2x3) |
Product Info
| Type | General Purpose Amplifier | Series | MCP607 |
| Function | Y | Shutdown | No |
| Technology | CMOS | Manufacturer | Microchip Technology |
| Amplifier Type | General Purpose | Number of Circuits | 2 |
| Other Specifications | LowOffset | ||
Environmental
| Operating Temperature | -40 to 125 °C | ||
