MCP6031-E/MS
| Manufacturer | |
| Description | OP Amp Single GP R-R I/O 5.5V 8-Pin MSOP Tube Single 1.8V 10kHz Op Amp, E temp IC OPAMP GP 10KHZ RRO 8MSOP Op Amp 0.9uA High Precision RRIO MSOP8 Operational Amplifiers - Op Amps S-1.8V 14kHz Op Amp E temp Single1.8V14kHzOpAmp,ETemp Operational amplifier; 10kHz; 1.8÷5.5VDC; Channels:1; MSOP8 Microchip 运算放大器, 10kHz 轨至轨, 1.8 → 5.5 V, 8针 MSOP Precision Amplifiers S-1.8V 14kHz Op Amp E temp |
| Category |
Business
| MOQ | 600 | Product | Precision Amplifiers |
| Unit Pack | 100 | Product Category | Operational Amplifiers - Op Amps |
| Standard Package | Rail / Tube | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Gain | 115dB | PSRR | 70 dB |
| Frequency | 165nV/√Hz | Slew Rate | 4000@5.5V V/us |
| Output Type | Rail-to-Rail | Power - Input | 单 |
| Conversion Type | 4V/ms | Input Impedance | 0.0006 pA/sqrt Hz |
| Rise Time (Typ) | 4mV/μs | CMRR, PSRR (Typ) | 70 dB |
| Current - Output | 0.9µA | Current - Supply | 0.9 uA |
| Voltage - Supply | 1.8 V | Power Supply Type | Single |
| Number of Channels | 1 | Number of Elements | 1 |
| Voltage - Output 4 | 1790mV | Current - Input Bias | 1pA |
| Typical Voltage Gain | 115 dB | Frequency - Operating | 1 kHz |
| Noise - 0.1Hz to 10Hz | 165nV/sqrtHz | Number of ADCs / DACs | Single |
| Voltage - Input (Min) | 150µV | Gain Bandwidth Product | 0.01 MHz |
| Rail-to-Rail Operation | Rail to Rail Input/Output | Input Logic Level - Low | 2000pA |
| Current - Quiescent (Iq) | 1.35µA | Current - Input Bias (Max) | 0.0001@5.5V uA |
| Current - Output / Channel | 23mA | Input Noise Current Density | 0.0006@5.5V pA/rtHz |
| Input Noise Voltage Density | 165@5.5V nV/rtHz | Frequency Bands (Low / High) | 10kHz |
| Voltage - Input Offset (Max) | 0.15@3V mV | Voltage - Output (Typ) @ Distance | 115dB |
| Propagation Delay tpLH / tpHL (Max) | 4V/ms | Common Mode Transient Immunity (Min) | 95dB |
| Voltage - Output Difference (Typ) @ Distance | 115 dB | ||
Mechanical
| Width | 3mm | Height | 0.95mm |
| Length | 3mm | Weight | 0.03 g |
| Bandwidth | 10kHz | Packaging | Tube |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 8 | Package / Case | 8MSOP |
| Package Quantity | 100 | Size / Dimension | 3 x 3 x 0.95mm |
| Supplier Device Package | 8-MSOP | ||
Product Info
| Spg | 100 | Type | General Purpose Amplifier |
| Series | MCP6031 | Features | rail-to-rail |
| Function | Y | Shutdown | No Shutdown |
| Technology | CMOS | Manufacturer | Microchip Technology |
| Amplifier Type | General Purpose | Number of Units | 1 |
| Number of Circuits | 1 | ||
Environmental
| Operating Temperature | -40 to 125 °C | Usable Temperature Range | -40to+125°C |
Documents & Media
Similar Parts
DSPIC30F6010A-20E/PF
microchip
MCU 16-bit dsPIC30 dsPIC RISC 144KB Flash 3.3V/5V 80-Pin TQFP Tray 16 Bit MCU/DSP 20MIPS 144 KB FLASH IC DSC 16BIT 144KB FLASH 80TQFP Digital Signal Processors & Controllers - DSP, DSC 20MIPS 144 KB MCU 16-bit dsPIC30F dsPIC RISC 144KB Flash 3.3V/5V 80-Pin TQFP Tray IC, DSC, 16BIT, 144KB, 40MHZ 5.5V TQFP80 16-BitMCU/DSP80LD20MIPS144KBFlash
2272
3M Electronic Specialty
Anti-Static Control Products Economy Strap w/Cord WRIST STRAP & CORD - HIGH LAND Wrist Strap; Fabric Wrist; 5 ft.; Blue; 9 in. (Max.); UL Listed Adjustable Wrist Straps, Grounding Cords And Wrist Strap Tester STATIC PROTECTION WRIST STRAP GROUNDER WRISTBAND & CORD, 1.5M WristStrap;FabricWrist;5ft;Blue;9in.(Max.);Adjustable
4004
3M Electronic Specialty
Adhesive Tapes 1/4x18YD FOAM TAPE

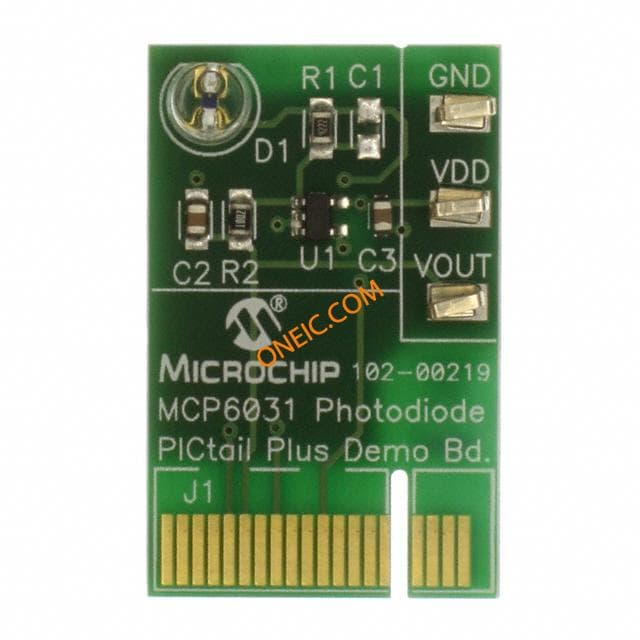

MCP6031DM-PTPLS
