点击放大查看

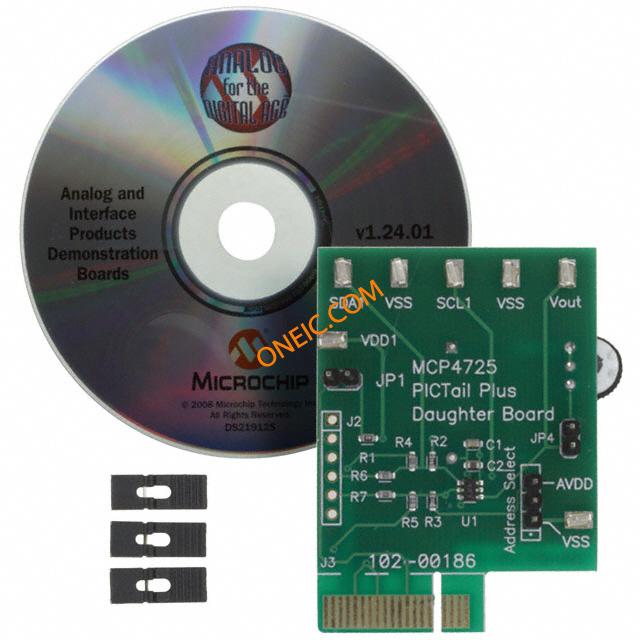

MCP4725DM-PTPLS
| Manufacturer | |
| Description | Pictail Plus Daughter Board, Experimenting With The Mcp4725 Features In Pic 24 Environment Daughter Cards & OEM Boards MCP4725 DAC PICTail Plus Daughter Board MCP4725 DAC PICTail Plus Daughter Bo BOARD DAUGHTER PICTAIL MCP4725 MCP4725DM-PTPLS, Module, PICTail Plus Daughterboard for the MCP4725 DAC PICTAIL PLUS, DAC, DAUGHTER BOARD EV.BOARD,MCP4725DM-PTPLS Microchip PICtail Plus 模拟开发套件 |
| Category |
Business
| MOQ | 9 | Unit Pack | 1 |
| Product Category | Daughter Cards & OEM Boards | Standard Package | Boxed |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423190 | ||
Electrical
| DAC Type | Voltage | Core Type | PIC |
| Settling Time | 6µs | Data Interface | I²C |
| Number of Bits | 12 | Number of DAC's | 1 |
| Number of Elements | :MCP4725 | Sampling Rate (Per Second) | 100k ~ 3.4M |
Mechanical
| Weight | 0.25 | Number of Cores/Bus Width | 8 bit |
Product Info
| Type | Development Kit | Contents | Board, Software |
| Features | :Step by Step Examples on Using PICkit Serial Analyzer, Programming, Non-volatile Memory | Kit Type | :Data Converter |
| Technology | Data Acquisition | Kit Contents | PICTail Plus Daughterboard for the MCP4725 DAC |
| Manufacturer | :PICtail | Card Standard | Module |
| Tool Type Feature | :Hardware - Daughter Card | Utilized IC / Part | MCP4725 |
| Chipset Manufacturer | :Microchip | Application Specifics | :DAC |
| MCU Supported Families | :PICmicro | For Use With/Related Products | :MCP4725 |
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
