MCP4252-103E/UN
| Manufacturer | |
| Description | Digital Potentiometer 256POS 10KOhm Dual 10-Pin MSOP Tube Digital Potentiometer ICs Dual 8B V SPI Rheo Digital Pot, 256 steps, SPI, dual c IC RHEOSTAT 10K 2CH 10MSOP Rheostat 10k, 256-step SPI, dual IC, DPOT, 5.5V, 10KR, 10 MSOP, SPI IC,DIGITALPOT.;NO.CHANNELS,2;10KOHMS;257TAPS;SPI;MSOP-10 Integrated circuit: rheostat; 10kΩ; SPI; 8bit; MSOP10; SMD 2通道 10kΩ 257位置 线性 数字电位计, 串行 - SPI接口, 10针 MSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 480 | Unit Pack | 100 |
| Product Category | Digital Potentiometer ICs | Standard Package | Rail / Tube |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423190 | ||
Electrical
| Interface | Serial (SPI) | Resistance | 10 KOhm |
| Memory Type | Volatile | INL/DNL (LSB) | ±1.5LSB |
| Current - Output | 1 mA | Voltage - Supply | 2.5 V, 3.3 V, 5 V |
| Power Supply Type | Single | Resistance (Ohms) | 10k |
| Resolution (Bits) | 8bit | Number of Channels | :2 |
| Resistance Tolerance | :± 20% | DC Resistance (DCR) (Max) | :75ohm |
| Resistance - Initial (Ri) (Min) | :10kohm | ||
Mechanical
| Taper | Linear | Width | 3mm |
| Height | 0.95mm | Length | 3mm |
| Weight | 0.0001 | Packaging | Tube |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :10 |
| Package / Case | 10MSOP | Package Cooled | MSOP |
| Material Finish | :MSL 1 - Unlimited | Package Quantity | 10 |
| Size / Dimension | 3 x 3 x 0.95mm | Number of Positions | 256 |
| Supplier Device Package | 10-MSOP | ||
Product Info
| Spg | 10 | Type | Digital |
| Wiper Memory | Volatile | Number of Units | 1 |
| Control Interface | Serial (SPI) | Number of Circuits | 2 |
| Number of Taps/Steps | 256 | Number of A/D Converters | Dual |
| Number of Positions Loaded | :257 | Number of Positions (Convert To) | :257 |
Environmental
| Operating Temperature | -40 to 125 °C | Temperature Coefficient | 150 ppm/°C Typical |
Documents & Media
PDF Document
Online Document
PDF Document
PDF Document
Similar Parts

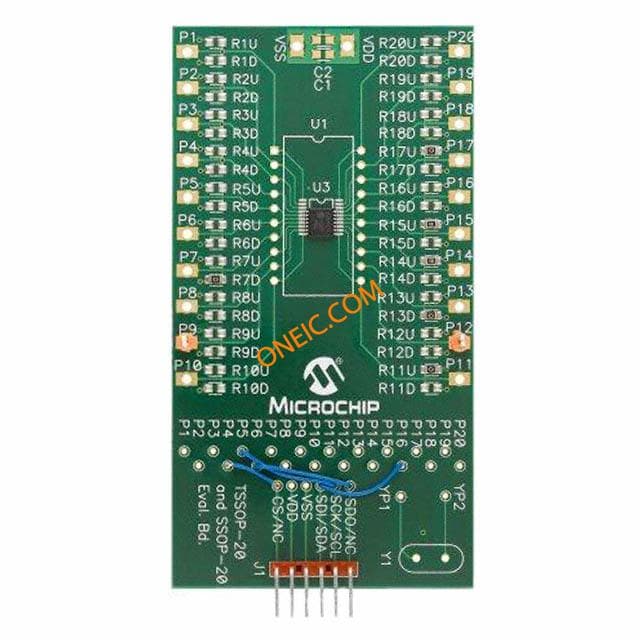

MCP42XXEV
