MCP1702T-5002E/CB
| Manufacturer | |
| Description | LDO Regulator Pos 5V 0.25A 3-Pin SOT-23A T/R LDOVREG POS 5,0V 0,25A SOT23-3 IC REG LDO 5V 0.25A SOT23A-3 LDO regulator, +5.0V 250mA, SC59 LOW IQ 250MA LDO; VIN 10V MAX; VOUT=5.0V LDO Voltage Regulators LDO w/ Low Quiescent V REG, LDO, 250MA, SMD, SOT-23-3 LOWIQ250MALDO,VIN10VMAX,VOUT=5.0V LDO voltage regulator 5.0 V SOT-23A-3, MCP1702T-5002E/CB, Microchip Microchip , LDO 调节器, 250mA, 5 V输出 ±0.4%, 2.7 → 13.2 V输入, 3针 SOT-23A封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 3000 | Unit Pack | 3000 |
| Other Names | MCP1702T-5002E/CBCT | Product Category | LDO Voltage Regulators |
| Standard Package | Tape & Reel | Factory Pack Quantity | 3000 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423990 | Automotive | NO |
| Rad Hardened | No | Leadfree Defin | RoHS-conform |
Electrical
| Accuracy | ±2 % | Tolerance | 2% |
| Output Type | Fixed | Operating Mode | Linear |
| Regulator Type | Linear | Voltage Rating | 2.7 V |
| Line Regulation | 0.1(Typ) %/V | Load Regulation | 1(Typ) % |
| Current - Output | 0.25(Min) A | Voltage - Supply | 0.33@250mA V |
| Number of Outputs | 1 | Regulator Topology | Positive Fixed |
| Resistance @ 25degC | 110°C/W | Number of Regulators | 1 |
| Noise - 0.1Hz to 10Hz | 8μV/sqrtHz | Voltage - Input (Min) | 5V |
| Voltage - Supply (Min) | :2% | Output Voltage Accuracy | �2 % |
| Power Dissipation (Max) | 253mW | Current - Quiescent (Iq) | 0.002mA |
| DC Voltage - Input (Min) | 2.7 V | Current - Quiescent (Max) | 0.005 mA |
| Voltage Regulation - Load | 0.4 % | Current - Input Bias (Max) | 0.002 mA |
| Current - Short Circuit Rating (SCCR) | YES | Voltage - Continuous Operating (Max) (MCOV) | :13.2V |
Mechanical
| Width | 1.8mm | Height | 1.3mm |
| Length | 3.1mm | Weight | 0.000033 |
| Packaging | REEL | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :3 | Package / Case | 3SOT-23A |
| Package Cooled | SOT-23A | Material Finish | :MSL 1 - Unlimited |
| Size / Dimension | 3.1 x 1.8 x 1.3mm | Number of Positions | 3 |
| Supplier Device Package | SOT-23A-3 | ||
Product Info
| Mode | POS | Type | VoltageRegulator |
| Polarity | Positive | Topology | LDO |
| Base Unit | :1702 | Matchcode | MCP1702T-5002E/CB |
| Standard Leadtime | 19 weeks | ||
Environmental
| Operating Temperature | -40 to 125 °C | Usable Temperature Range | -40to+125°C |
| Operating Temperature - Junction | -40°C | ||
Documents & Media
PDF Document
Online Document
Online Document
PDF Document
Online Document
Online Document
PDF Document
Similar Parts

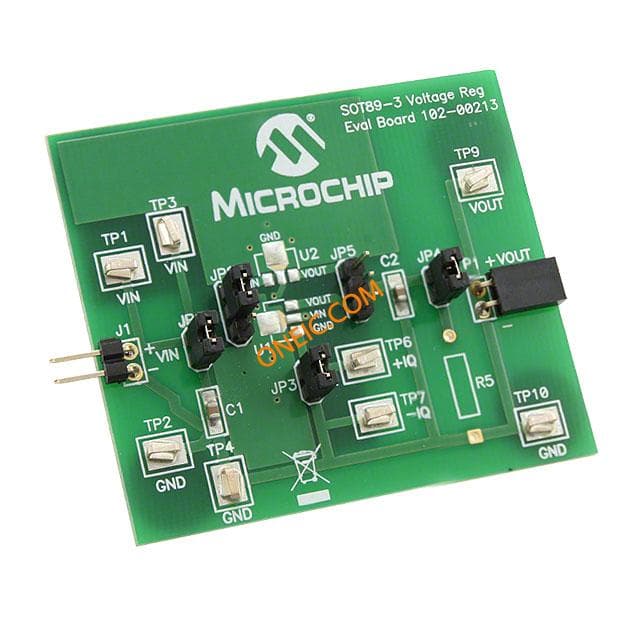

SOT89-3EV-VREG
