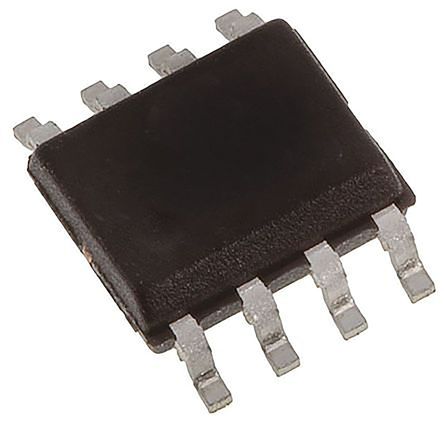

MCP1406-E/SN
| Manufacturer | |
| Description | MOSFET DRVR 6A 1-OUT Lo Side Inv 8-Pin SOIC N Tube 1xMOSFETDr 6.0A 18V I SOIC SMD IC MOSFET DVR 6A 8SOIC MCP1406-E/SN, MOSFET Power Driver 6A, Inverting, 4.5 to 18V, 8-Pin SOIC Gate Drivers 6A Single DRIVER, MOSFET, SINGL 6A, SMD, SOIC8 Driver; 6A; Channels:1; inverting; 4.5÷18V; SO8 Microchip MOSFET 功率驱动器, 6A, 反相, 8针 SOIC封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 500 | Unit Pack | 100 |
| Other Names | MCP1406ESN | Product Category | Gate Drivers |
| Standard Package | Rail / Tube | Factory Pack Quantity | 100 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Automotive | NO | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | Fault Protection | NANY/N/NA/NAN |
Electrical
| Output | inverting | Fall Time | 30 ns |
| Delay Time | 40ns | Input Type | Inverting |
| Voltage Rating | 4.5 V | Rise Time (Typ) | 30 ns |
| Current - Output | 6 A | Current - Supply | 0.25 mA |
| Driver Circuitry | Low Side | Voltage - Supply | 4.5 V ~ 18 V |
| Number of Outputs | 1 | Number of Channels | 1 |
| Current - Peak Output | 6(Typ) A | Voltage - Input (Min) | 18V |
| Voltage - Output (Max) | :17.975V | Voltage - Supply (Min) | 18 V |
| Input Logic Level - Low | CMOS/TTL | Delay Time - Propagation | 55 ns |
| Input Logic Level - High | CMOS|TTL | On-State Resistance (Max) | NY/N/NA/NAN |
| Reverse Recovery Time (trr) | 20ns | VoP, Velocity of Propagation | 4.5V |
| Resistance - Wiper (Ohms) (Typ) | 1.5|2.1 Ohm | Current - Peak Pulse (10/1000us) | 6A |
| Current - Leakage (IS(off)) (Max) | NY/N/NA/NAN | Max Propagation Delay @ V, Max CL | 30 |
| Impulse Discharge Current (8/20us) | 20ns | Propagation Delay tpLH / tpHL (Max) | 55 |
| Common Mode Transient Immunity (Min) | Extended | ||
Mechanical
| Width | 3.9mm | Height | 1.25mm |
| Length | 4.9mm | Weight | 0.000175 |
| Packaging | Tube | Case Color | :SOIC |
| Lead Style | Gull-wing | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :8 | Package / Case | 8SOIC N |
| Package Cooled | SOIC N | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 4.9 | Package Quantity | SOIC N |
| Size / Dimension | 4.9 x 3.9 x 1.25mm | Number of Positions | 8 |
| Shell Size - Insert | 1.25(Min) | Supplier Device Package | 8-SOIC N |
Product Info
| Spg | 50 | Type | High-Speed Power MOSFET Driver |
| Base Unit | :1406 | Matchcode | MCP1406-E/SN |
| Configuration | Low-Side | Number of Units | 1 |
| Module/Board Type | :Low Side | Number of Drivers | 1 |
| Standard Leadtime | 14 weeks | Application Specifics | 1xDriver |
| Printed Circuit Board | 8 | Number of Configurations | 1 |
Environmental
| Operating Temperature | -40 to 125 °C | Operating Temperature - Junction | -40°C |
