DSPIC33FJ64MC506A-I/PT
| Manufacturer | |
| Description | MCU 16-bit dSPIC33 dsPIC RISC 64KB Flash 3.3V 64-Pin TQFP IC DSC 16BIT 64KB FLASH 64TQFP dsPIC33FJ64MC506A-I/PT, 16 bit Microcontroller dsPIC 40MIPS 64kb Flash, 8kb RAM, I2C SPI 64-Pin TQFP Digital Signal Processors & Controllers - DSP, DSC 16Bit 40MIPS 64KB Flash IC, DSC, 16BIT, 64 KB, 40MHZ, 3.6V, TQFP-64 IC,DSPIC33FJ64MC506A-I/P Microchip dsPIC33F 系列 16 bit dsPIC MCU, 40MIPS, 64 kB ROM 闪存, 8 kB RAM, 64针 TQFP封装 dsPIC33FJ 64K TQFP64 85°C |
| Category |
Business
| Product | DSCs | Other Names | DSPIC33FJ64MC506AIPT |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC | Standard Package | Trays |
| Factory Pack Quantity | 160 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85423990 |
Electrical
| Speed | 40 MHz | Timer | 9 x 16 bit |
| RAM Size | 8 KB | Core Size | 16-Bit |
| Core Type | dsPIC | Interface | CAN/I2C/SPI/UART |
| Clock Rate | 40 MHz | Resolution | 16bit |
| Memory Size | 8 KB | Number of I/O | 53 |
| Number of Bits | :16 bit | Voltage - Core | :3.3V |
| Voltage Rating | 3 → 3.6 V | Watchdog Timer | 1 |
| Data Converters | A/D 16x10b/12b | Frequency - Max | 40MIPS |
| Number of DAC's | 9 | Oscillator Type | Internal |
| Voltage - Supply | 3.3 V | Resolution (Bits) | 10 bit, 12 bit |
| Number of Channels | 1 | Program Memory Size | 64 KB |
| Program Memory Type | Flash | Frequency - Operating | :40MHz |
| Number of ADCs / DACs | 16 | Frequency (Center/Band) | 16bit |
| Voltage - Supply (Vcc/Vdd) | 3 V ~ 3.6 V | ||
Mechanical
| Width | 10mm | Height | 1.05mm |
| Length | 10mm | Weight | 0 |
| Packaging | Tray | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :64 |
| Package / Case | 64TQFP | Package Cooled | TQFP |
| Size / Dimension | 10 x 10 x 1.05mm | Number of Positions | 64 |
| Supplier Device Package | 64-TQFP (10x10) | Number of Cores/Bus Width | 16 Bit |
| Pulse Width Distortion (Max) | 1(8 Channel) (Motor Control), 8(16 bit) | ||
Product Info
| USB | 0 | Type | dsPIC33 |
| Series | dsPIC33FJXXXMCX06 | Features | CAN Controller |
| On-Chip RAM | 16-chx12-bit | Peripherals | Brown-out Detect/Reset, DMA, Motor Control PWM, QEI, POR, PWM, WDT |
| Architecture | RISC | Connectivity | CAN, I²C, IrDA, LIN, SPI, UART/USART |
| Core Processor | dsPIC | Instruction Type | Fixed/Floating Point |
| Number of Timers | 9 | RF Family/Standard | dSPIC33 |
Environmental
| Operating Temperature | -40 to 85 °C | ||
Documents & Media
Similar Parts
DV007004
microchip
Production Programmer/Development Kit PRODUCTION PROGRAMMER/DEVELOPMENT Programmers - Processor Based MPLAB PM3 Universal Device Programmer MPLAB PM3 UNIVERSAL DEVICE PROGRAMMER Universal Device Programmer PROGRAMMER UNIVERSAL PM3 DV007004, Development Kit, 8 bit, PIC MPLAB PM3 Universal Device Programmer Socket Module Adapter MPLAB PM3 PROGRAMMER, PIC, DSPIC30F PRODUCTIONPROGRAMMER/DEVELOPMENTKITWITHBUILT-INICSP.PROGRAMSPICMICRO&DS PM3 Universal Device Programmer PC hosted mode / Stand-alone mode, DV007004, Microchip Microchip 处理器和微控制器开发套件
DM330021
microchip
DSPICDEM MCLV Development Board Development Boards & Kits - PIC / DSPIC dsPIC33 MC LV Demo Kit MPLAB dsPICDEM MCLV Dev.Board R KIT DEMO DSPIC33 MCLV DM330021, Development Kit, 16 bit, dsPIC DSPICDEM, BLDC MOTOR CTRL, DEV BOARD dsPICDEMMCLVDevelopmentBoard,MotorControl dsPICDEM MCLV Development Board PC hosted mode dsPIC33FJ32MC204 24 V, DM330021, Microchip
DM300018
microchip
DSPICDEM 28Pin Starter Development Board Development Boards & Kits - PIC / DSPIC dsPICDEM 2 Demo Brd BOARD DEMO DSPICDEM 2 DM300018, Development Kit, 16 bit, dsPIC DSPIC30F, CAN, RS232, DEV BOARD dsPICDEM2DevelopmentBoard Development kit: Microchip; dsPIC30F, dsPIC30F4011 dsPICDEM 2 Development Board dsPICDEM 2 development board PC hosted mode 9 V, DM300018, Microchip Microchip 16 位 MCU 微控制器开发套件
PG164130
microchip
PICKIT 3 In Circuit Debugger In-Circuit Debuggers PICkit 3 In-Circuit Debugger PICkit 3 In-Circuit Debugger PROGRAMMER MCU PICKIT 3 PG164130, Programmer, 16 bit, PIC, PICkit 3 In-Circuit Debugger DEBUGGER, PICKIT 3 ICD, DSPIC, USB PICkit 3 In-Circuit Debugger Only PICkit3In-CircuitDebugger,MPLABEmulatorsandDebuggers Programmer: microcontrollers; USB; ICSP, USB B mini PICkit 3 Programmer/Debugger PC hosted mode, PG164130, Microchip Microchip PICkit 3 程序编译器 微控制器开发套件

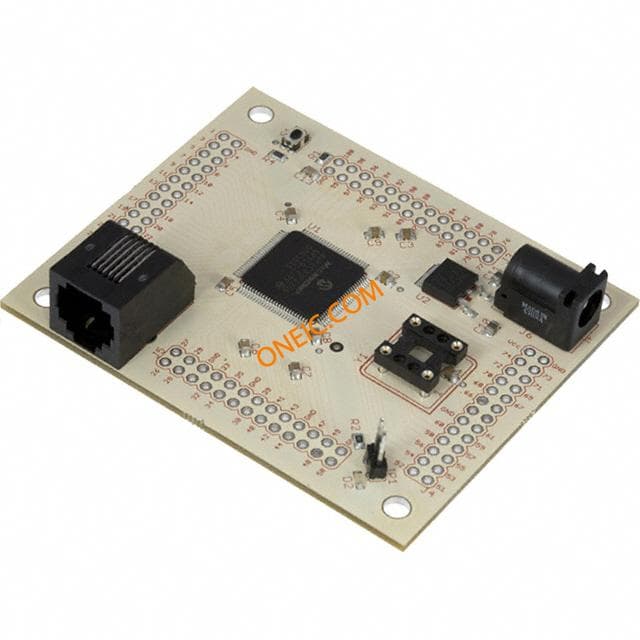

DKSB1001B
