93LC66B/P
| Manufacturer | |
| Description | EEPROM Serial-Microwire 4K-bit 256 x 16 3.3V/5V 8-Pin PDIP 4K, 256 X 16 SERIAL EE IC EEPROM 4KBIT 2MHZ 8DIP EEPROM 256x16 IC, EEPROM SERIAL 4K, 93LC66, DIP8 4K,256X16SERIALEE EEPROM Microwire DIL-8, 93LC66B/P, Microchip |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1400 | Unit Pack | 60 |
| Other Names | 93LC66BP | Product Category | EEPROM |
| Standard Package | Rail / Tube | Factory Pack Quantity | 60 |
| Standard Package Name | PDIP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423261 |
| Part Status | :93LC66 | ESD Protection | Yes |
Electrical
| Speed | 2MHz | Memory | :256 x 16 |
| Frequency | :3MHz | Interface | Serial-Microwire |
| Clock Rate | 2 MHz | Delay Time | 100ns |
| Access Time | 200ns | Memory Size | 4K (256 x 16) |
| Memory Type | EEPROM | Current - Bias | 100μA(Read),500μA(Write) |
| Voltage - VCCB | :2.5V | Voltage Rating | 3.3|5 V |
| Clock Frequency | :2MHz | Data Converters | 200(Min) Year |
| Frequency - Max | 2 MHz | Voltage - Supply | 2.5 V ~ 5.5 V |
| Current - Leakage | ±1μA | Voltage - Output 4 | 0.2V |
| Capacitance - Input | 7pF | Capacitance @ Vr, F | 7pF |
| Current Rating (Max) | 2 mA | Voltage - Input (Min) | 3.5V |
| Voltage - Supply (Min) | 6 | Current - Average Rectified (Io) | 1.5 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 to 6 V | Common Mode Transient Immunity (Min) | Commercial |
Mechanical
| Width | 6.35 | Weight | 0.000001 |
| Packaging | Tube | Lead Style | Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :8 | Package / Case | 8PDIP |
| Material Finish | :- | Length - Overall | 9.27 |
| Package Quantity | PDIP | Number of Positions | 8 |
| Shell Size - Insert | 3.3 | Supplier Device Package | 8-PDIP |
Product Info
| Density | 4 Kb | Base Unit | :93 |
| Manufacturer | 256x16 | Memory Format | EEPROMs - Serial |
| Printed Circuit Board | 8 | ||
Environmental
| Temperature Range | :Commercial | Operating Temperature | 0 to 70 °C |
Documents & Media
PDF Document
Online Document
Online Document
PDF Document
Online Document
PDF Document
PDF Document
PDF Document
Similar Parts
DV243003
microchip
MPLAB Starter Kit For Serial Memory Products Memory IC Development Tools MPLAB Starter Kit for Memory Products KIT STARTER FOR SRL MEM PRODUCTS DV243003, Memory Development Kit, EEPROM MPLAB, MEMORY PRODUCTS, STARTER KIT KITSTARTERFORSRLMEMPRODUCTS Development kit: Microchip; Communication with PC: USB; 3.3÷5V MPLAB Starter Kit for Serial EEPROM, DV243003, Microchip
$120.2566
Details

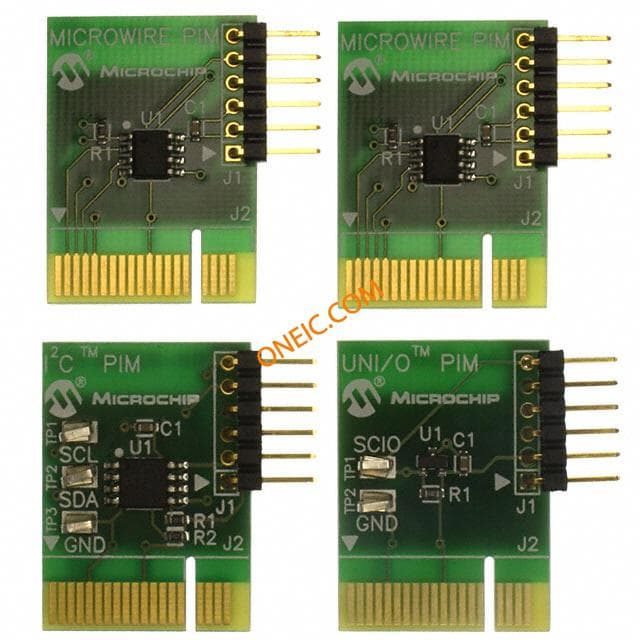

AC243003
