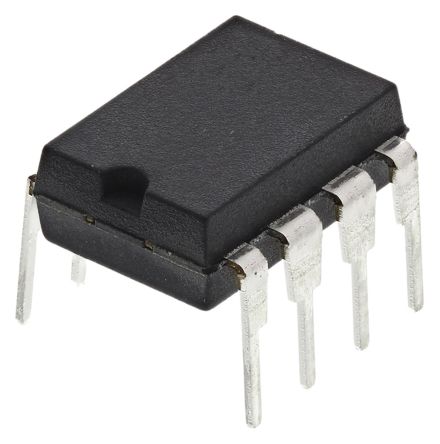

24LC01B-I/P
| Manufacturer | |
| Description | EEPROM Serial-I2C 1K-bit 128 x 8 3.3V/5V 8-Pin PDIP Tube IC EEPROM 1KBIT 400KHZ 8DIP 24LC01B-I/P, Serial EEPROM Memory 1kbit, Serial-I2C, 900ns 2.5 to 5.5V, 8-Pin PDIP EEPROM 128x8 - 1.8V IC, EEPROM, SERIAL, 1K 1K,128X81.8VSERIALEE,IND Memory; EEPROM; I2C; 128x8bit; 2.5÷5.5V; 400kHz; DIP8 EEPROM I²C DIL-8, 24LC01B-I/P, Microchip Microchip 串行 EEPROM 存储器, 1kbit, 串行 - I2C接口, 900ns, 2.5 → 5.5 V, 8针 PDIP封装 E²ser.I²C 128x8 DIP8 2.5V |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 60 | Unit Pack | 60 |
| Other Names | 24LC01BIP | Product Category | EEPROM |
| Standard Package | Rail / Tube | Factory Pack Quantity | 60 |
| Standard Package Name | PDIP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Automotive | NO | Part Status | :24LC01 |
| Rad Hardened | No | ESD Protection | Yes |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Speed | 400kHz | Memory | :128 x 8 |
| Frequency | 0.4 MHz | Interface | Serial-I2C |
| Clock Rate | 0.4 MHz | Access Time | 900 ns |
| Memory Size | 1K (128 x 8) | Memory Type | EEPROM |
| Current - Bias | 0.05mA(Read),0.1mA(Write) | Voltage - VCCB | :2.5V |
| Voltage Rating | 3.3|5 V | Clock Frequency | :400kHz |
| Data Converters | 200(Min) Year | Frequency - Max | 0.4 MHz |
| Current - Output | 3 mA | Voltage - Supply | 2.5V |
| Current - Leakage | ±1μA | Voltage - Output 4 | 0.4V |
| Capacitance - Input | 10pF | Capacitance @ Vr, F | 10pF |
| Current Rating (Max) | 5 mA | Voltage - Input (Min) | 1.75V |
| Rise / Fall Time (Typ) | 300ns | Voltage - Supply (Min) | 5.5 V |
| Switch Time (Ton, Toff) (Max) | 300ns | Write Cycle Time - Word, Page | 1M |
| Current - Average Rectified (Io) | 3 mA | Voltage - Gate Trigger (Vgt) (Max) | 2.5 to 5.5 V |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Width | 300 mil | Height | 3.3mm |
| Length | 9.27mm | Weight | 0.000833 |
| Packaging | Tube | Lead Style | Through Hole |
| Termination | :SMD | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Number of Pins | :8 |
| Package / Case | 8PDIP | Package Cooled | PDIP |
| Material Finish | :- | Length - Overall | 9.27 |
| Package Quantity | PDIP | Size / Dimension | 9.27 x 6.35 x 3.3mm |
| Number of Positions | 8 | Shell Size - Insert | 3.3 |
| Supplier Device Package | 8-PDIP | ||
Product Info
| Spg | 60 | Type | I2C |
| DELETED | Compliant | Density | 1 Kb |
| Matchcode | 24LC01B-I/P | Manufacturer | 128x8 |
| Programmable | Yes | Memory Format | EEPROMs - Serial |
| Number of Units | 1 | Standard Leadtime | 14 weeks |
| Memory Organization | 128x8bit | Printed Circuit Board | 8 |
Environmental
| Mating Cycles | 1000000 | Operating Temperature | -40 to 85 °C |
| Maximum Temperature Limit | 85°C | Thermal Resistance @ Natural | -40°C |
| Operating Temperature - Junction | 85C | ||
