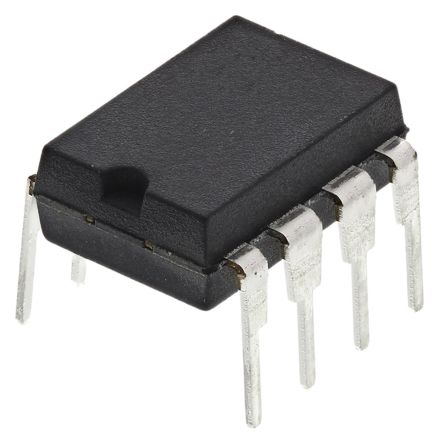

24LC00-I/P
| Manufacturer | |
| Description | EEPROM Serial-I2C 128-bit 16 x 8 3.3V/5V 8-Pin PDIP Tube 16 byte, 128 bit, 2.5V SEE IC EEPROM 128BIT 400KHZ 8DIP 24LC00-I/P, Serial EEPROM Memory 128bit, Serial-I2C, 900ns 2.5 to 5.5V, 8-Pin PDIP EEPROM 16byte 128kb 1.8V EEPROM SERIAL 16BYTE, SMD, PDIP8 16BYTE,128BIT,2.5VSEE Memory; EEPROM; I2C; 16x8bit; 2.5÷5.5V; 400kHz; DIP8 Microchip 串行 EEPROM 存储器, 128bit, 串行 - I2C接口, 900ns, 2.5 → 5.5 V, 8针 PDIP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1800 | Unit Pack | 60 |
| Other Names | 24LC00IP | Product Category | EEPROM |
| Standard Package | Rail / Tube | Factory Pack Quantity | 60 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423261 | Part Status | :24LC00 |
| Rad Hardened | No | ESD Protection | Yes |
Electrical
| Speed | 100kHz, 400kHz | Memory | :16 x 8 |
| Frequency | 0.4 MHz | Interface | Serial-I2C |
| Clock Rate | 400 kHz | Access Time | 900 ns |
| Memory Size | 128 (16 x 8) | Memory Type | EEPROM |
| Current - Bias | 1mA(Read),2mA(Write) | Voltage - VCCB | :2.5V |
| Voltage Rating | 3.3|5 V | Clock Frequency | :400kHz |
| Data Converters | 200(Min) Year | Frequency - Max | 0.4 MHz |
| Current - Output | 2 mA | Voltage - Supply | 2.5 V ~ 5.5 V |
| Current - Leakage | ±1μA | Voltage - Output 4 | 0.4V |
| Capacitance - Input | 10pF | Capacitance @ Vr, F | 10pF |
| Current Rating (Max) | 2 mA | Voltage - Input (Min) | 1.75V |
| Rise / Fall Time (Typ) | 1000ns | Voltage - Supply (Min) | 5.5 V |
| Switch Time (Ton, Toff) (Max) | 300ns | Write Cycle Time - Word, Page | Yes |
| Current - Average Rectified (Io) | 500 uA | Voltage - Gate Trigger (Vgt) (Max) | 2.5 to 5.5 V |
Mechanical
| Width | 6.35mm | Height | 3.3mm |
| Length | 9.4mm | Weight | 0.000833 |
| Packaging | Tube | Termination | :Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :8 | Package / Case | 8PDIP |
| Package Cooled | PDIP | Material Finish | :- |
| Package Quantity | 10 | Size / Dimension | 9.4 x 6.35 x 3.3mm |
| Number of Positions | 8 | Supplier Device Package | 8-PDIP |
Product Info
| Spg | 10 | Type | memory |
| Density | 128 Bit | Base Unit | :24 |
| Manufacturer | 16x8 | Programmable | Yes |
| Memory Format | EEPROMs - Serial | Number of Units | 1 |
| Memory Organization | 16x8bit | ||
Environmental
| Mating Cycles | 1000000 | Operating Temperature | -40 to 85 °C |
| Operating Temperature - Junction | 85C | ||
