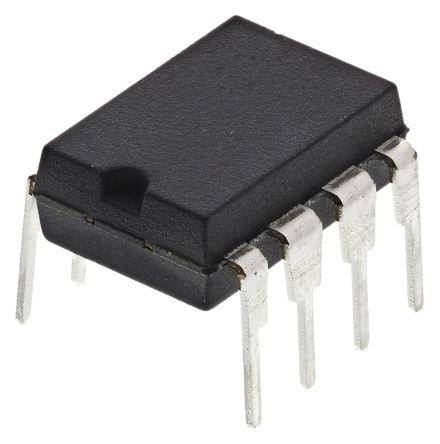

24FC256-I/P
| Manufacturer | |
| Description | EEPROM Serial-I2C 256K-bit 32K x 8 1.8V/2.5V/3.3V/5V 8-Pin PDIP Tube EEPROM Serial-I2C 256K-bit 32K x 8 1.8V/2.5V/3.3V/5V 8-Pin PDIP 256K, 32K X 8, 2.5V HI-SPEED SER EE, IC EEPROM 256KBIT 1MHZ 8DIP 24FC256-I/P, Serial EEPROM Memory 256kbit, Serial-I2C, 400ns 1.7 to 5.5V, 8-Pin PDIP EEPROM 32kx8 - 2.5V Hi Spd 256K,32KX8,2.5VHI-SPEEDSEREE,IND,PDIP-8 Memory; EEPROM; I2C; 32kx8bit; 2.5÷5.5V; 1MHz; DIP8 Microchip 串行 EEPROM 存储器, 256kbit, 串行 - I2C接口, 400ns, 1.7 → 5.5 V, 8针 PDIP封装 E²ser.I²C 32Kx8 DIP8 1.7V |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 450 | Unit Pack | 60 |
| Other Names | 24FC256IP | Product Category | EEPROM |
| Standard Package | Rail / Tube | Factory Pack Quantity | 60 |
| Standard Package Name | PDIP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Automotive | NO | Rad Hardened | No |
| ESD Protection | Yes | Leadfree Defin | RoHS-conform |
Electrical
| Speed | 400kHz, 1MHz | Frequency | 1 MHz |
| Interface | Serial-I2C | Clock Rate | 1 MHz |
| Access Time | 400 ns | Memory Size | 256K (32K x 8) |
| Memory Type | EEPROM | Voltage Rating | 1.8|2.5|3.3|5 V |
| Data Converters | 200(Min) Year | Frequency - Max | 1 MHz |
| Current - Output | 3 mA | Current - Supply | 3 mA |
| Voltage - Supply | 1.7 V ~ 5.5 V | Current Rating (Max) | 3 mA |
| Voltage - Supply (Min) | 5.5 V | Vce Saturation (Max) @ Ib, Ic | -40 °C |
| Write Cycle Time - Word, Page | Yes | Current - Average Rectified (Io) | 3 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 1.7 to 5.5 V | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Width | 6.35mm | Height | 3.3mm |
| Length | 9.27mm | Weight | 0.49 g |
| Packaging | Tube | Lead Style | Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | 8 | Package / Case | 8PDIP |
| Package Cooled | PDIP | Length - Overall | 9.27 |
| Package Quantity | PDIP | Size / Dimension | 9.27 x 6.35 x 3.3mm |
| Number of Positions | 8 | Shell Size - Insert | 3.3 |
| Supplier Device Package | 8-PDIP | ||
Product Info
| Spg | 60 | Type | memory |
| Density | 256 Kb | Function | Y |
| Structure | 32K x 8 位 | Manufacturer | 32Kx8 |
| Programmable | Yes | Memory Format | EEPROMs - Serial |
| Number of Units | 1 | Memory Organization | 32kx8bit |
| Printed Circuit Board | 8 | RAM Capacity/Installed | 256Kbit |
Environmental
| Mating Cycles | 1000000 | Operating Temperature | -40 to 85 °C |
| Maximum Temperature Limit | 85 °C | Operating Temperature - Junction | 85C |
