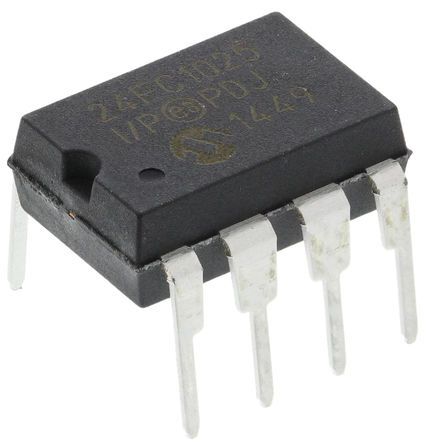

24FC1025-I/P

Manufacturer	Microchip Technology Inc.
Description	EEPROM Serial-I2C 1M-bit 128K x 8 2.5V/3.3V/5V 8-Pin PDIP Tube 1024K, 128K X 8, 2.5V HI-SPD SER EE, IC EEPROM 1MBIT 1MHZ 8DIP 24FC1025-I/P, Serial EEPROM Memory 1Mbit, Serial-I2C, 400ns 1.7 to 5.5V, 8-Pin PDIP EEPROM 1024K 128KX8 2.5V HI-SPD SER EE IC, EEPROM SERIAL 1024K 1024K,128KX8,2.5VHI-SPDSEREE,128BYTEPAGE,PDIP-8 Memory; EEPROM; I2C; 128kx8bit; 1.8÷5.5V; 1MHz; DIP8 EEPROM I²C PDIP-8, 24FC1025-I/P, Microchip Microchip 串行 EEPROM 存储器, 1Mbit, 串行 - I2C接口, 400ns, 1.7 → 5.5 V, 8针 PDIP封装
Category	Integrated CircuitsGeneral Purpose ICsDDR SDRAM Memory Chips

对参数有疑问？问 AI 助手

Business

MOQ	180	Unit Pack	60
Other Names	24FC1025IP	Product Category	EEPROM
Standard Package	Rail / Tube	Factory Pack Quantity	60
Standard Package Name	PDIP

Compliance

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
EU RoHS	Compliant	Tariff No	85423261
Part Status	:24FC1025	ESD Protection	Yes

Electrical

Speed	400kHz, 1MHz	Memory	:128K x 8bit
Frequency	1MHz	Interface	Serial-I2C
Clock Rate	1 MHz	Access Time	400 ns
Memory Size	1M (128K x 8)	Memory Type	EEPROM
Voltage - VCCB	:5V	Voltage Rating	2.5\|3.3\|5 V
Clock Frequency	:1MHz	Data Converters	200(Min) Year
Frequency - Max	1 MHz	Voltage - Supply	1.8 V ~ 5.5 V
Current Rating (Max)	5 mA	Voltage - Supply (Min)	5.5 V
Voltage - Gate Trigger (Vgt) (Max)	1.8 V, 2.5 V, 3.3 V, 5 V	Common Mode Transient Immunity (Min)	Industrial

Mechanical

Width	6.35mm	Height	3.3mm
Length	9.4mm	Weight	0.05
Packaging	Tube	Lead Style	Through Hole
Termination	:Through Hole	Mounting Type	Through Hole
Mounting Style	Through Hole	Number of Pins	:8
Package / Case	8PDIP	Package Cooled	PDIP
Material Finish	:-	Length - Overall	9.4
Package Quantity	PDIP	Size / Dimension	9.4 x 6.35 x 3.3mm
Number of Positions	8	Shell Size - Insert	3.3
Supplier Device Package	8-PDIP

Product Info

Spg	60	Type	memory
Density	1 Mb	Manufacturer	128Kx8
Memory Format	EEPROMs - Serial	Number of Units	1
Memory Organization	128kx8bit	Printed Circuit Board	8

Environmental

Mating Cycles

1000000

Operating Temperature

-40 to 85 °C
