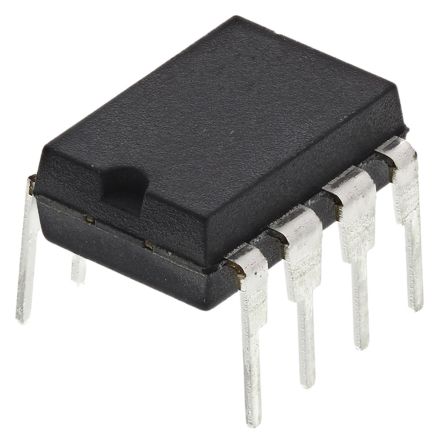

24AA512-I/P
| Manufacturer | |
| Description | EEPROM Serial-I2C 512K-bit 64K x 8 2.5V/3.3V/5V 8-Pin PDIP Tube 512K, 64K X 8, 1.8V SER EE, IND IC EEPROM 512KBIT 400KHZ 8DIP 24AA512-I/P, Serial EEPROM Memory 512kbit, Serial-I2C, 3500ns, 1.8V, 8-Pin PDIP EEPROM 64kx8 - 1.8V IC, EEPROM SERIAL 512KB, SMD, PDIP8 512K,64KX8,1.8VSEREE,IND Memory; EEPROM; I2C; 64kx8bit; 1.7÷5.5V; 400kHz; DIP8 Microchip 串行 EEPROM 存储器, 512kbit, 串行 - I2C接口, 3500ns, 1.8 → 5.5 V, 8针 PDIP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 211 | Unit Pack | 60 |
| Other Names | 24AA512IP | Product Category | EEPROM |
| Standard Package | Rail / Tube | Factory Pack Quantity | 60 |
| Standard Package Name | PDIP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423261 |
| Part Status | :24AA512 | Rad Hardened | No |
| ESD Protection | Yes | ||
Electrical
| Speed | 100kHz, 400kHz | Memory | :64K x 8bit |
| Frequency | 0.1 MHz | Interface | Serial-I2C |
| Clock Rate | 0.4 MHz | Access Time | 3500 ns |
| Memory Size | 512K (64K x 8) | Memory Type | EEPROM |
| Current - Bias | 400μA(Read),5mA(Write) | Voltage - VCCB | :1.8V |
| Voltage Rating | 2.5|3.3|5 V | Clock Frequency | :400kHz |
| Data Converters | 200(Min) Year | Frequency - Max | 0.1 MHz |
| Current - Output | 5 mA | Voltage - Supply | 1.7 V ~ 5.5 V |
| Current - Leakage | ±1μA | Voltage - Output 4 | 0.4V |
| Capacitance - Input | 10pF | Capacitance @ Vr, F | 10pF |
| Current Rating (Max) | 5 mA | Voltage - Input (Min) | 1.19V |
| Rise / Fall Time (Typ) | 1000ns | Voltage - Supply (Min) | 5.5 V |
| Switch Time (Ton, Toff) (Max) | 300ns | Write Cycle Time - Word, Page | Yes |
| Current - Average Rectified (Io) | 5 mA | Voltage - Gate Trigger (Vgt) (Max) | 1.8 to 5.5 V |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Width | 6.35mm | Height | 3.3mm |
| Length | 9.4mm | Weight | 0.000833 |
| Packaging | Tube | Lead Style | Through Hole |
| Termination | :Through Hole | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Number of Pins | :8 |
| Package / Case | 8PDIP | Package Cooled | PDIP |
| Material Finish | :- | Length - Overall | 9.4 |
| Package Quantity | PDIP | Size / Dimension | 9.4 x 6.35 x 3.3mm |
| Number of Positions | 8 | Shell Size - Insert | 3.3 |
| Supplier Device Package | 8-PDIP | ||
Product Info
| Spg | 60 | Type | memory |
| DELETED | Compliant | Density | 512 Kb |
| Base Unit | :24 | Manufacturer | 64Kx8 |
| Programmable | Yes | Memory Format | EEPROMs - Serial |
| Number of Units | 1 | Memory Organization | 64kx8bit |
| Printed Circuit Board | 8 | ||
Environmental
| Mating Cycles | 1000000 | Operating Temperature | -40 to 85 °C |
| Operating Temperature - Junction | 85C | ||
