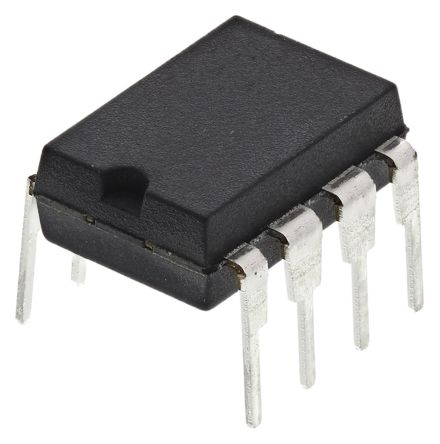

24AA1025-I/P

Manufacturer	Microchip Technology Inc.
Description	EEPROM Serial-I2C 1M-bit 128K x 8 1.8V/2.5V/3.3V/5V 8-Pin PDIP Tube 1024K, 128K X 8, 1.8V SER EE, 128 BY IC EEPROM 1MBIT 400KHZ 8DIP 24AA1025-I/P, Serial EEPROM Memory 1Mbit, Serial-I2C, 900ns 1.7 to 5.5V, 8-Pin PDIP EEPROM 1024K 128KX8 1.8V SER EE IC, EEPROM SERIAL 1024K 1024K,128KX8,1.8VSEREE,128BYTEPAGE,PDIP8 Memory; EEPROM; I2C; 128kx8bit; 1.7÷5.5V; 400kHz; DIP8 Microchip 串行 EEPROM 存储器, 1Mbit, 串行 - I2C接口, 900ns, 1.7 → 5.5 V, 8针 PDIP封装
Category	Integrated CircuitsGeneral Purpose ICsDDR SDRAM Memory Chips

对参数有疑问？问 AI 助手

Business

MOQ	180	Unit Pack	60
Other Names	24AA1025IP	Product Category	EEPROM
Standard Package	Rail / Tube	Factory Pack Quantity	60

Compliance

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
Tariff No	85423261	Part Status	:24AA1025
ESD Protection	Yes

Electrical

Speed	100kHz, 400kHz	Memory	:128K x 8bit
Frequency	400kHz	Interface	Serial-I2C
Clock Rate	0.4 MHz	Access Time	3500 ns
Memory Size	1M (128K x 8)	Memory Type	EEPROM
Current - Bias	450μA(Read),5mA(Write)	Voltage - VCCB	:1.8V
Voltage Rating	1.8\|2.5\|3.3\|5 V	Clock Frequency	:400kHz
Data Converters	200(Min) Year	Frequency - Max	0.4 MHz
Voltage - Supply	1.7 V ~ 5.5 V	Current - Leakage	±1μA
Voltage - Output 4	0.4V	Capacitance - Input	10pF
Capacitance @ Vr, F	10pF	Current Rating (Max)	5 mA
Voltage - Input (Min)	1.75V	Rise / Fall Time (Typ)	300ns
Voltage - Supply (Min)	5.5 V	Switch Time (Ton, Toff) (Max)	300ns
Voltage - Gate Trigger (Vgt) (Max)	1.8 V, 2.5 V, 3.3 V, 5 V

Mechanical

Width	6.35mm	Height	3.3mm
Length	9.4mm	Weight	0.000833
Packaging	Tube	Termination	:Through Hole
Mounting Type	Through Hole	Mounting Style	Through Hole
Number of Pins	:8	Package / Case	8PDIP
Package Cooled	PDIP	Material Finish	:-
Package Quantity	60	Size / Dimension	9.4 x 6.35 x 3.3mm
Number of Positions	8	Supplier Device Package	8-PDIP

Product Info

Spg	60	Type	memory
Density	1 Mb	Manufacturer	128Kx8
Memory Format	EEPROMs - Serial	Number of Units	1
Memory Organization	128kx8bit

Environmental

Mating Cycles

1000000

Operating Temperature

-40 to 85 °C
